Installation and Service Guide N5250-90001 6-13
PNA Series Microwave Network Analyzer System
N5250A
Performance Tests and Checks
System Performance Verification

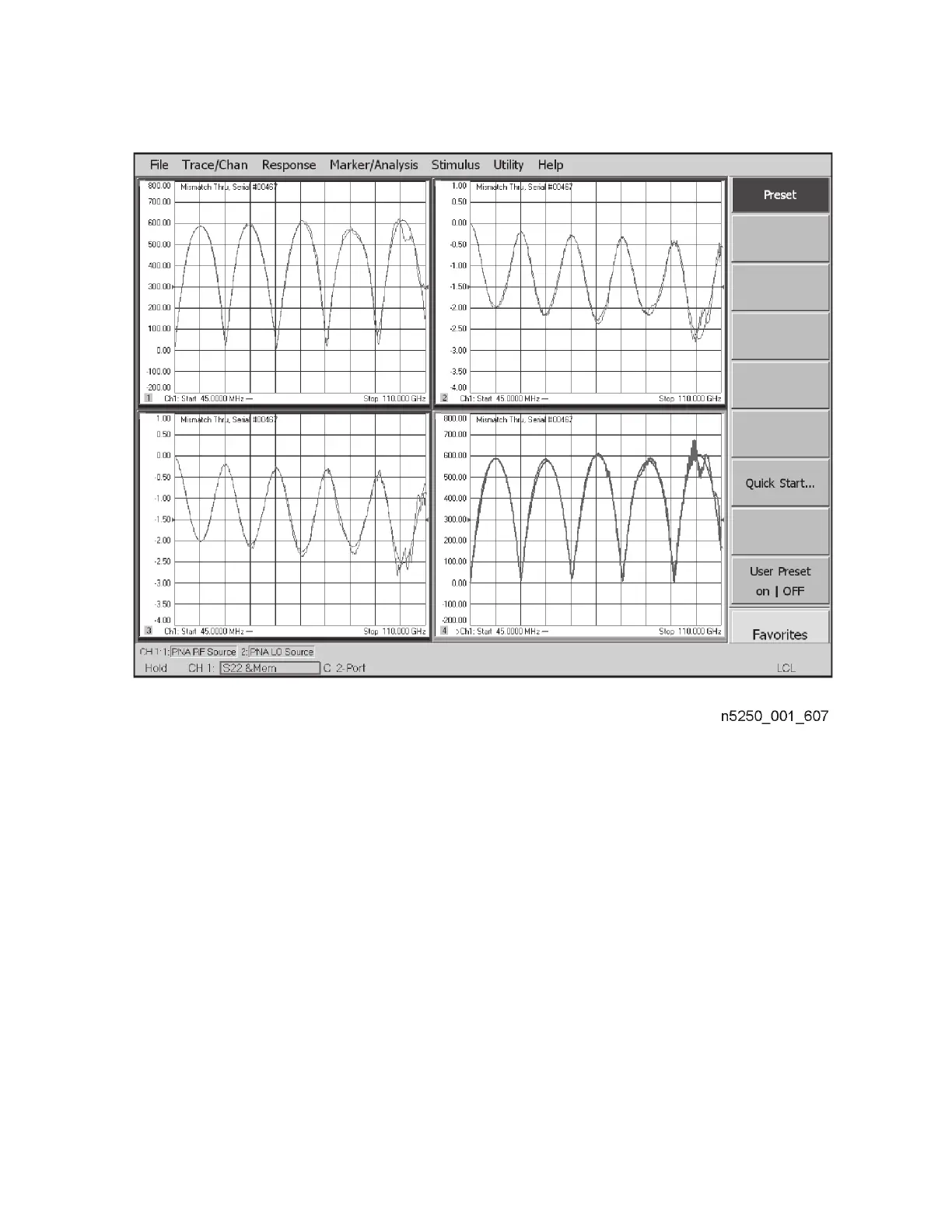

Figure 6-7 Magnitude for Mismatched Thru
S
11
and S
22
are linear magnitude with a scale of milliunits. S
21
and S
12
are dB.
