Front Panel Menu Reference SCPI Command
Select Transient\List\Config.
Select List Step 0 (the pulse) and enter a voltage value of
15. Press Select.
Select List Step 1 (the off time) and enter a voltage value
of 0. Press Select.
To program the amplitude for step 0 (the pulse) and
step 1 (the off time):
LIST:VOLT 15,0

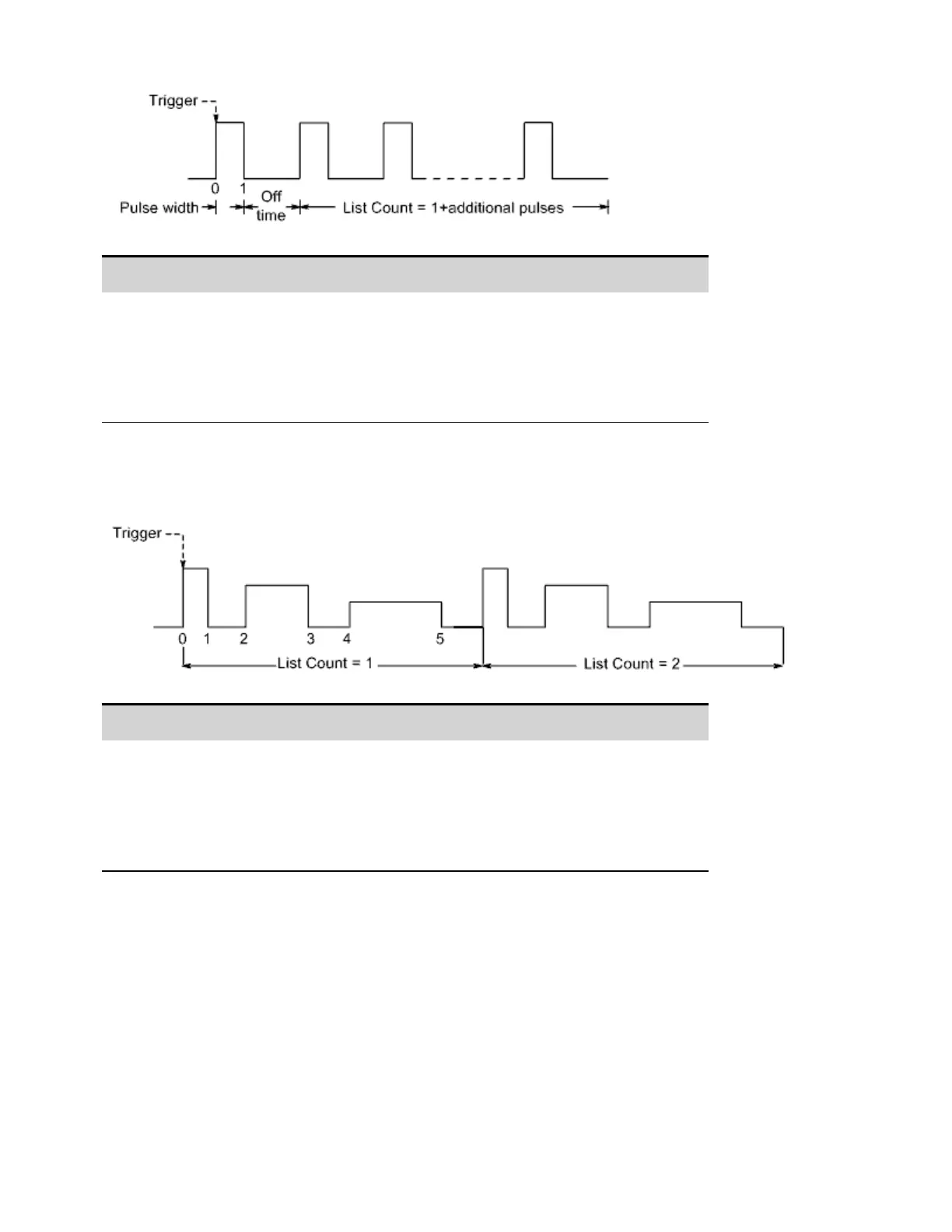

Example 2 If you are programming an arbitrary voltage list, specify the values for the list. The order in
which the values are entered determines the order in which the values will be output. To generate the
voltage list shown in the figure, a list may include the following values: 9, 0, 6, 0, 3, 0:
Front Panel Menu Reference SCPI Command
Select Transient\List\Config.
Select the List Step number and enter a voltage value.
Press Select.
Repeatthis for each step. Use the up/down arrows to
select the next step.
To program a voltage list of 5 steps:
LIST:VOLT 9,0,6,0,3,0
Program the dwell values
Example 1 If you are programming a voltage pulse, set the dwell time of the pulse width. Also specify
the dwell of the off time. This is necessary if you are generating a pulse train, since the off time
determines the time between pulses. To generate a pulse with a pulse width of 1 second and an off
time of 2 seconds, use:
4 Using the Advanced Power System
122 Keysight N6900/N7900 Series Operating and Service Guide
