Chapter 5 105
Direct Digital Synthesis Option 330
Direct Digital Synthesis

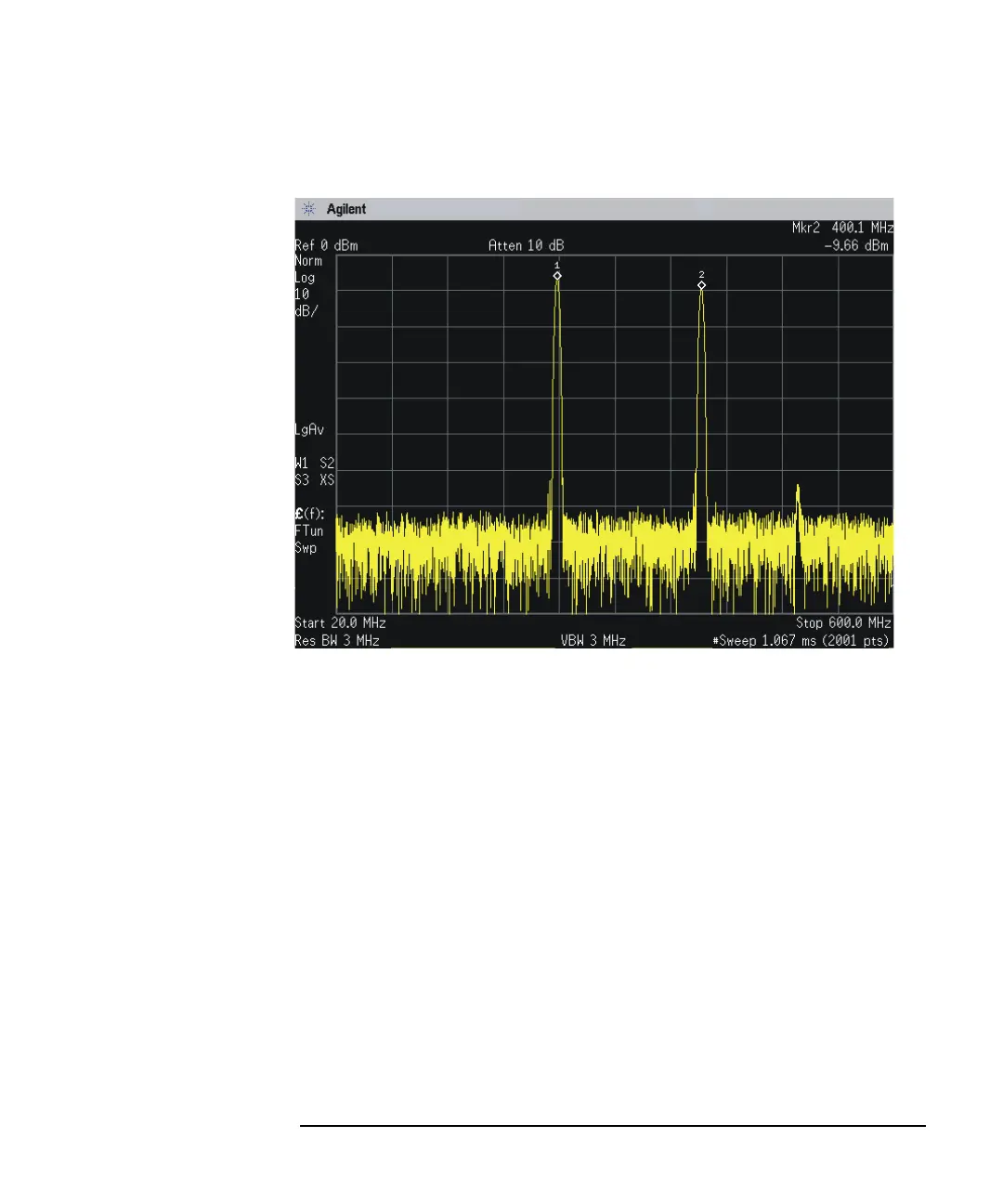

Figure 5-3 Playback of a Sequence
The 250 MHz carrier (marker 1) and the 400 MHz carrier (marker 2) are
combined with a waveform composed of all ones.This illustrates how the
DDS engine produces sine waves when a constant frequency is specified.
Out of Range Input Values
Some values may cause an 'out of range' condition. Refer to Figure 5-4.
