Chapter 3 79
Theory of Operation
Waveform Playback
Markers
The N8241/2A AWG provides four front panel marker output connectors that can be
used for system synchronization and triggering. The following markers can be
enabled:
• Ch 1 Memory Marker 1 and Memory Marker 2
• Ch 2 Memory Marker 1 and Memory Marker 2
• Waveform Start, Repeat, and Gate
• Sequence Start, Repeat, and Gate
• Scenario Repeat
•Software
Marker outputs are aligned with the analog output of the AWG.

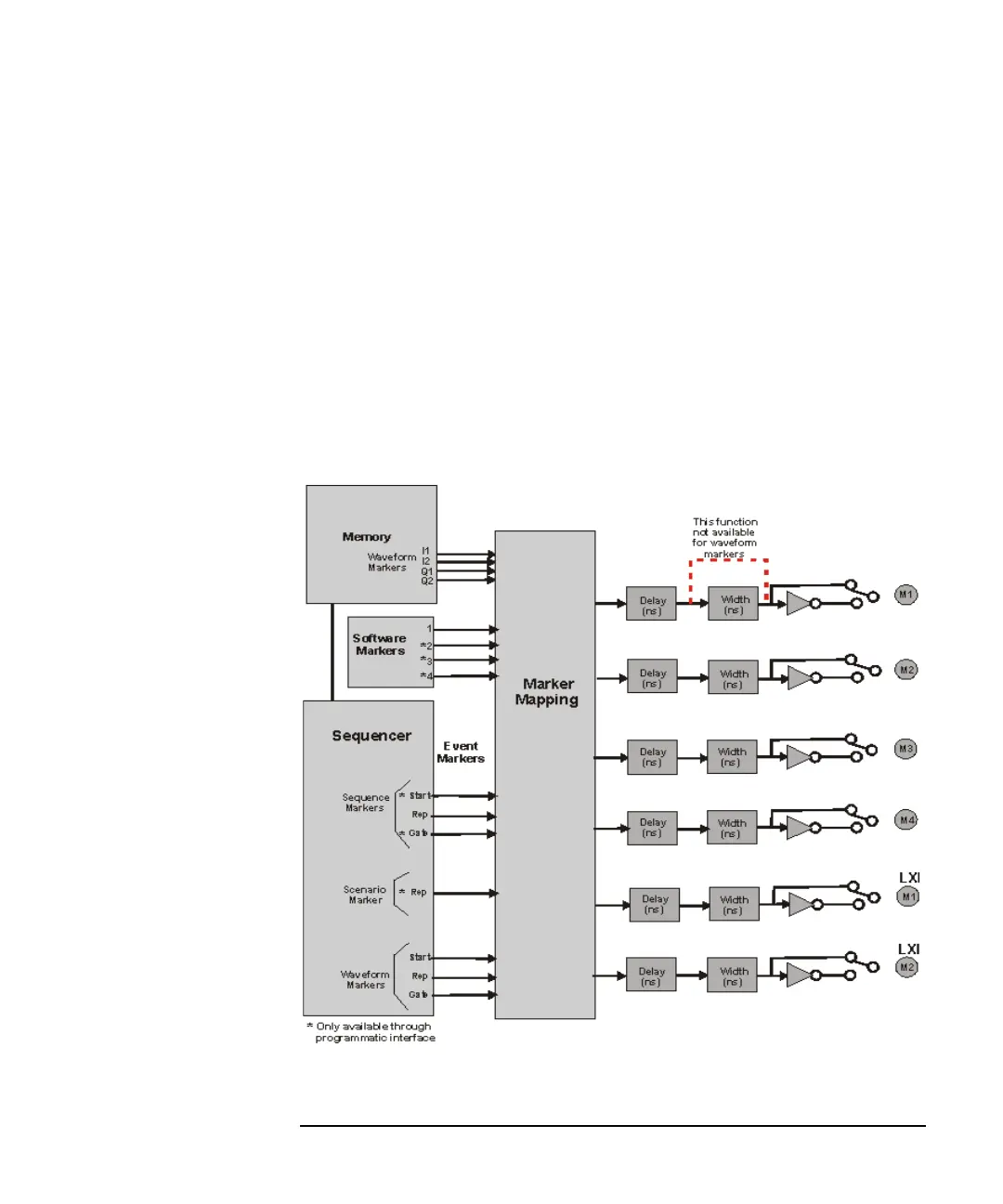

Figure 3-5 Marker Block Diagram
In addition, two LXI markers are available for routing to the LXI Trigger Bus or the
