Chapter 2 49
Basic Operation
Using the Graphical User Interface
Selecting the Master Unit
1. Open an N8241A Control Utility session (double-click the Agilent N8241A icon
on the desktop).
2. In the N8241A Open dialog, enter the VISA address for the master unit, then
click OK.

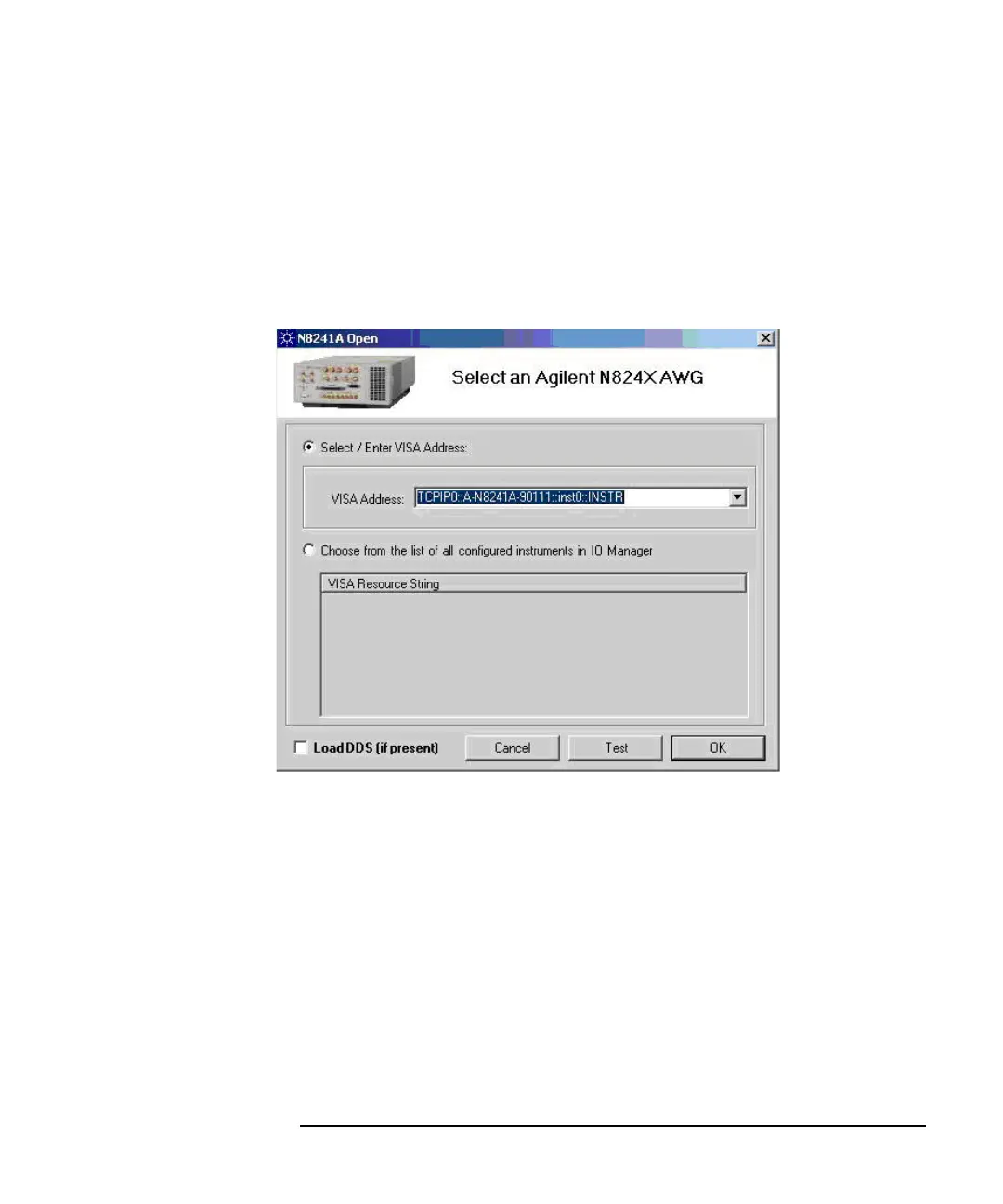

Figure 2-8 N8241A Selection Window
3. Select the desired signal conditioning path
4. Select the desired waveform file.
5. Select the Clock tab.
6. From the SYNC CLK IN drop-down list, select Master.
Notice the following changes to the graphical user interface that are automatically
configured when the Master unit is assigned:
Clock Tab
• the internal clock is no longer driving the sample clock
• the sample clock and sync clock out are driven by the external clock in signal
• the sync clock in signal communicates with the sequencer
