Generating a Single Tone Signal
Use the following procedure as a guide to basic single-ended waveform playback
with the N8241A or N8242A AWG. All waveform parameters need to be set prior to
waveform playback
.
NOTE A spectrum analyzer is required to display the waveforms.
1.
Connect the channel 1 positive (+) output to the spectrum analyzer RF input
connector.
2. Open the user interface by double-clicking the N8241A icon placed on the
desktop during installation.
NOTE If an icon was not placed on the desktop, go to:
Start > Programs > Agilent > N8241A > Control Utility

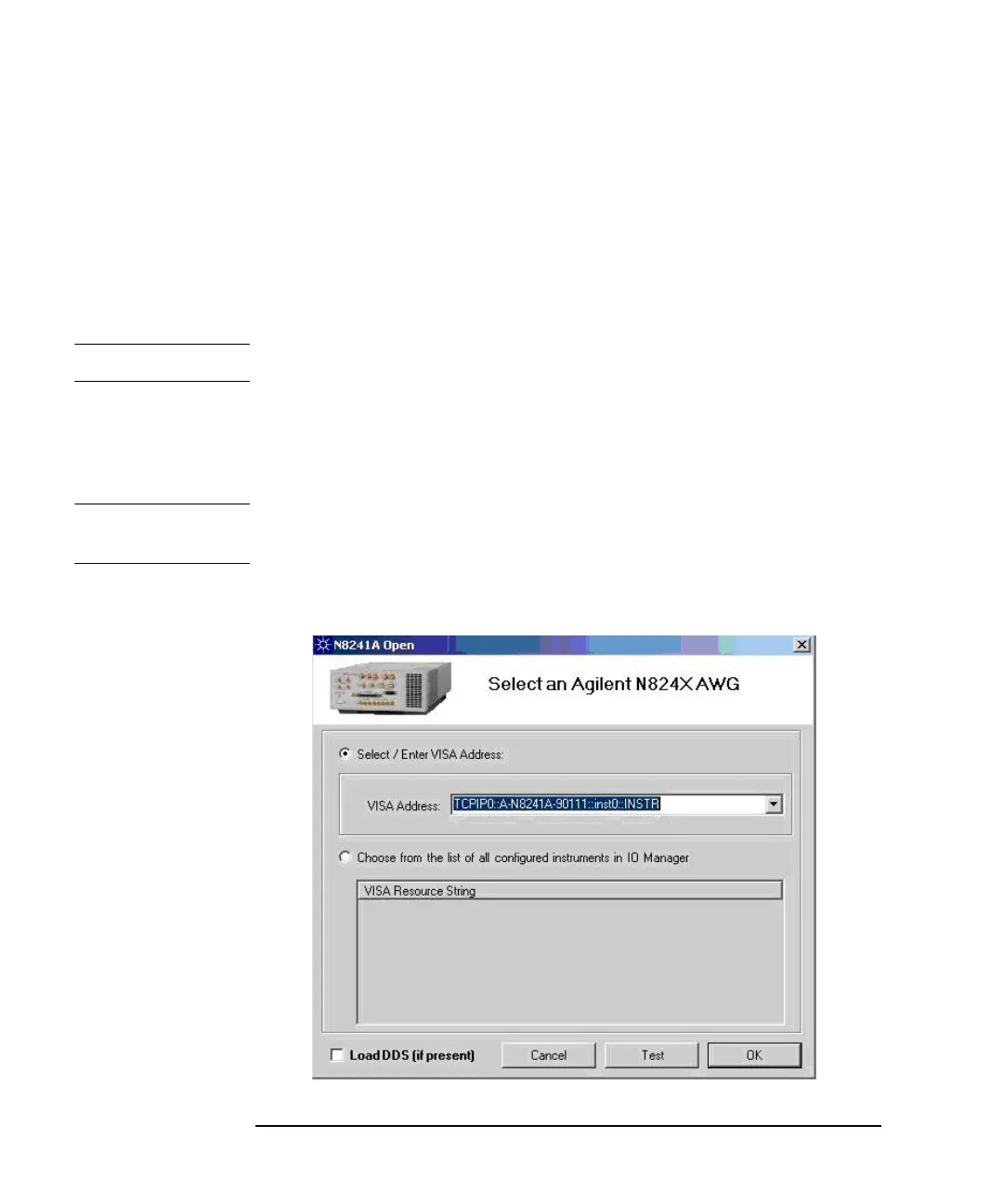

3. In the N8241A Open dialog, enter the VISA address and click OK.
