16 Chapter 1
Introducing the N8241/2A AWGs
Front Panel Interface
Front Panel Interface

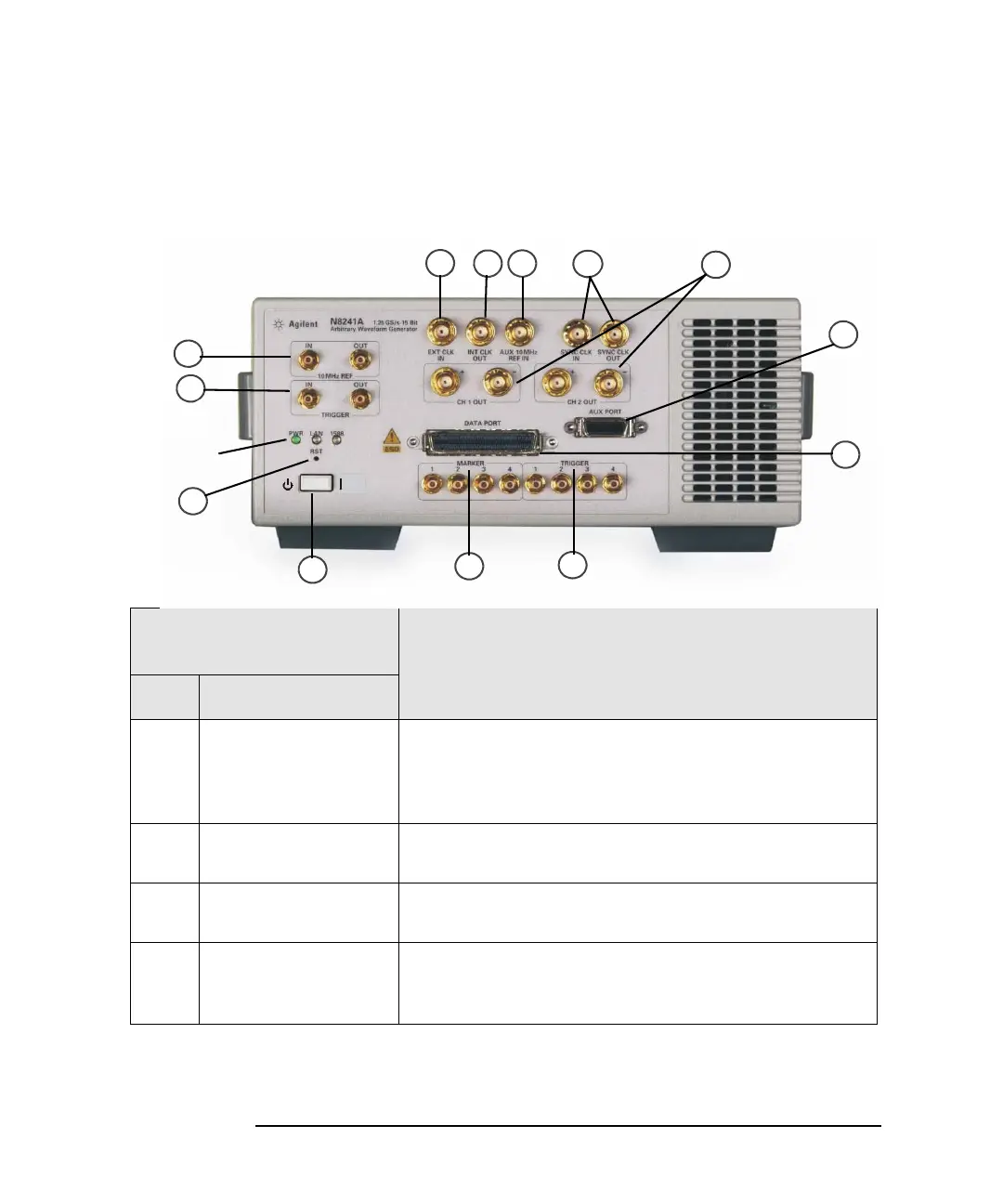

Figure 1-1 N8241/2A Front Panel
Item Description
# Name
1 EXT CLK IN Use this 50 ohm SMA connector to input an external sample
clock. It will accept clock rates in the range of 100 MS/s
through 1.25 GS/s. Refer to “External Clock” on page 69 for
more information.
2 INT CLK OUT Use this 50 ohm SMA connector to route the internal 1.25
GS/s clock to other test instrument or devices.
3 AUX 10 MHz REF IN This auxiliary 50 ohm SMA connector can be used to input
an external 10 MHz reference.
4 SYNC CLK IN /
SYNC CLK OUT
These connectors support synchronization of multiple
modules. Refer to “Multiple Module Synchronization” on
page 87.
2
3
6
7
8
10
11
12
13
5
1
4
9
Status
Indicators
