Chapter 1 21
Introducing the N8241/2A AWGs
Rear Panel Interface
Rear Panel Interface

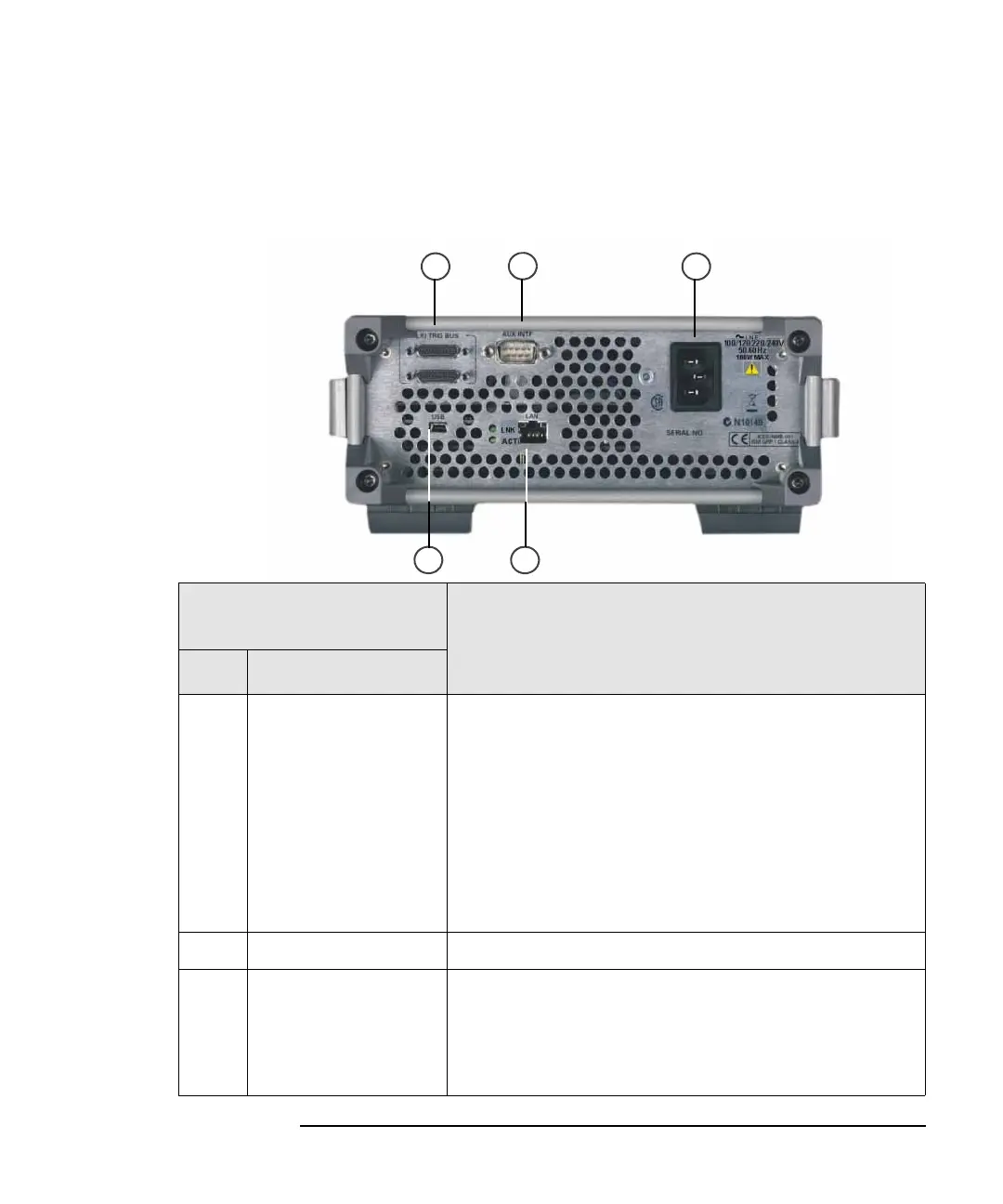

Figure 1-2 N8241A Rear Panel
Item Description
# Name
1LXI TRIG BUS This interface enables the instrument to detect any LXI
trigger bus events or LXI LAN-based events and can output
such events.
Inbound events control the arming and triggering of the
instrument subsystem for performing measurements and
other operations. Outbound events are used to notify other
LXI devices of specific conditions.
An LXI TRIG BUS cable and terminators will be available
from Circuit Assembly in the near future.
2 AUX INTF This 9-pin serial interface connector is for factory-use only.
3 AC Power Receptacle The AC voltage is connected here. The power cord receptacle
accepts a three-prong power cable that is shipped with the
instrument. The voltage range is 100/120/220/240 volts with
a frequency range of 50 to 60 Hz and is automatically
selected by the power supply.
