100 Chapter 5
Direct Digital Synthesis Option 330
Direct Digital Synthesis

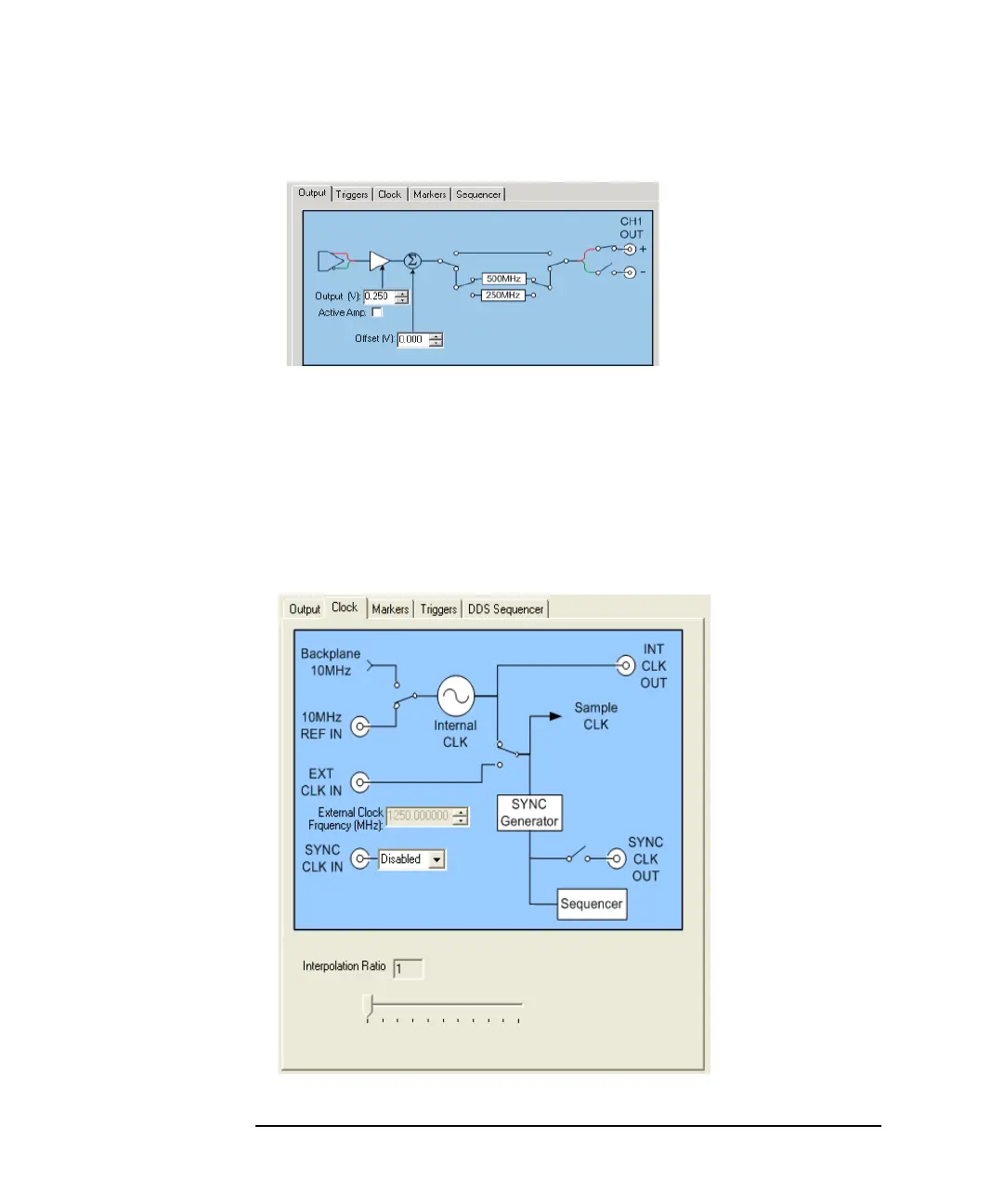

path to CH1 OUT (+) (click on the node that you want to connect).
The connection will automatically enable differential mode. Click on the
negative (-) node to open this path and enable single-ended mode.
Configuring the Clock
1. Select the Clock tab and configure the 10MHz REF IN. For this
example, we utilized the 10 MHz reference from the E4440 Spectrum
Analyzer in step 1. If you are using a PXI chassis, leave the clock set to
the default Backplane 10MHz.
