Theory of Operation
Signal Conditioning
Signal Conditioning
Single-Ended Mode

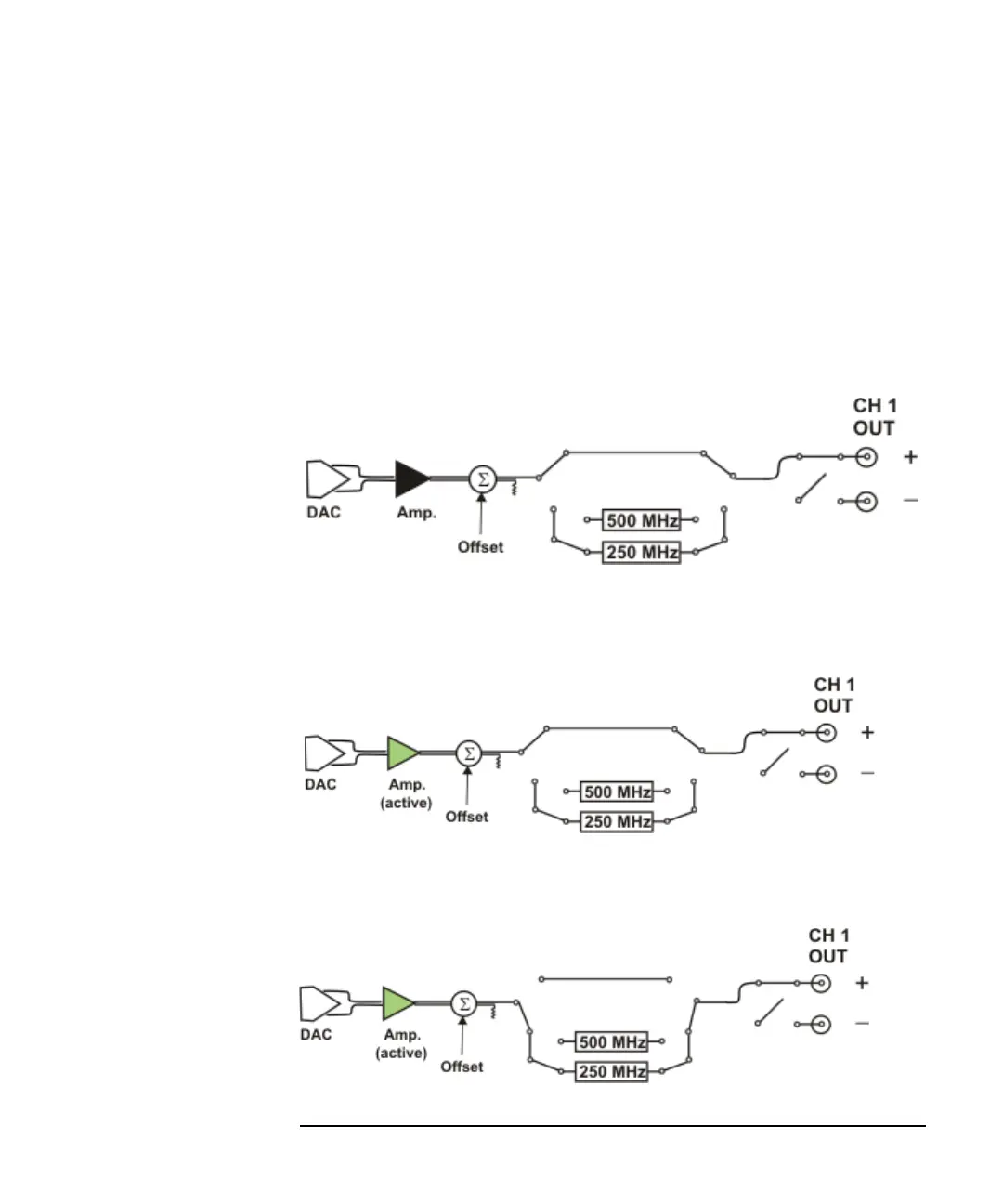

Single-ended mode has two modes of operation with signal output through the
positive (+) port. The negative port (-) is reserved for differential mode.
Passive mode has an adjustable output level of up to 0.5Vp-p
This mode gives the greatest single-ended signal fidelity because there is a balun in
the path that suppresses the second order harmonic.
Active mode has an output level of up to 1.0Vp-p and ±0.2Vp-p offset range when
the amplifier is activated. The active mode trades off signal fidelity for an increase
in signal power.
There are two internal reconstruction filters, 250 MHz and 500 MHz, that can be
inserted in the signal path of either mode.
