Chapter 4 95
Dynamic Sequencing Option 300
Dynamic Sequencing

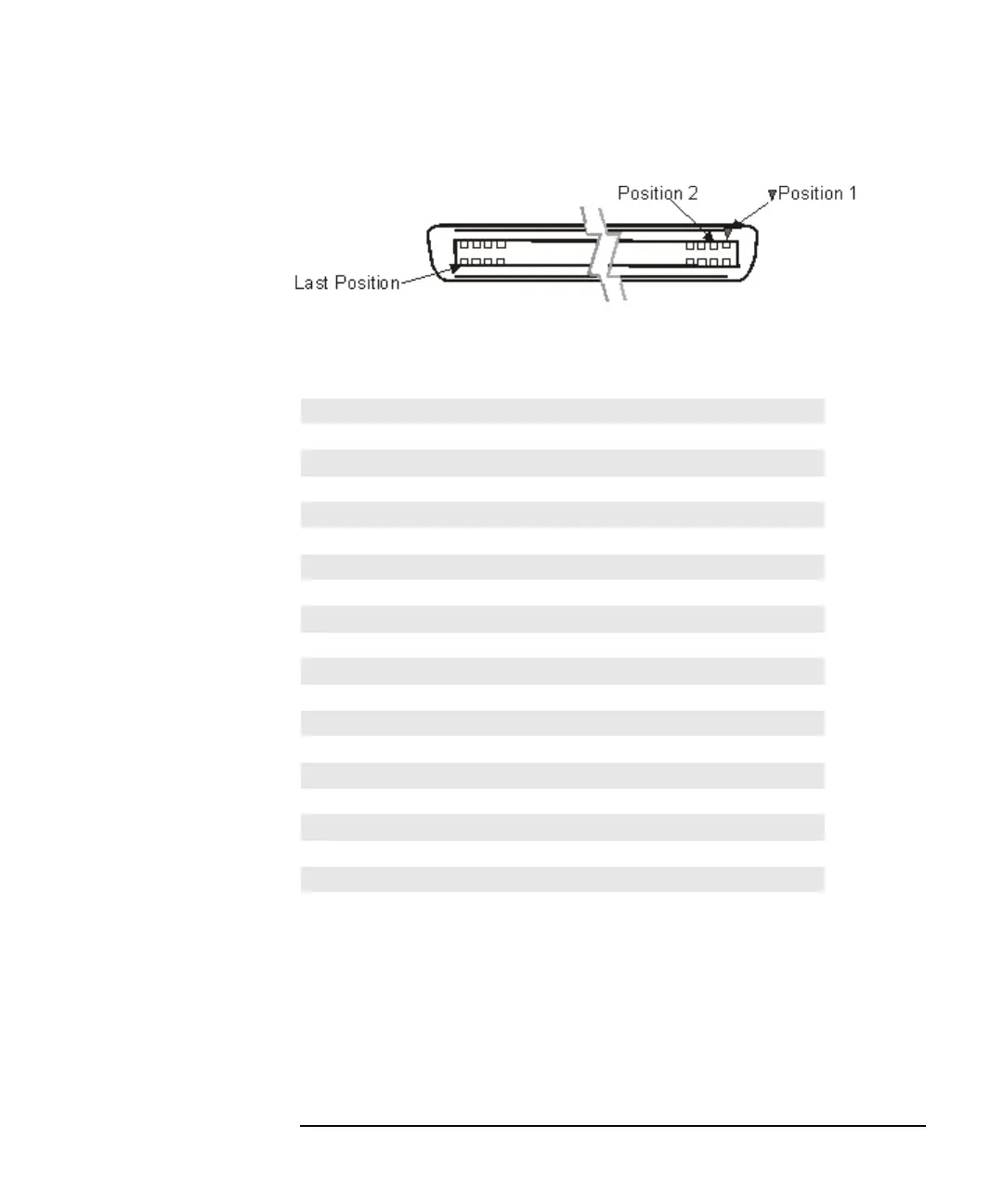

Figure 4-2 AUX PORT Pin Outs
Table 4-1 Pin Assignment
Pin No. Signal Assignment
1 Trigger
2 Ground
3 Data Valid
4 CH 1/CH 2 (Reserved, set low)
5 D0
6D1
7 Ground
8D2
9 D3
10 D4
11 D5
12 D6
13 D7
14 Ground
15 D8
16 D9
17 D10
18 D11
19 Ground
20 D12
