53210A Software Installation and Interface Configuration 2
Keysight 53210A User’s Guide 51
Using the Counter Web-Enabled Interface
Operating the 53210A counter from its Web interface requires a Java™-enabled
Web browser but no additional (i.e. user-installed) libraries or drivers. The Web
interface provides access to the counter’s SCPI command set.
Connecting the Counter and Viewing its Home Page
Connect the counter directly to the PC or to the PC through a network switch
using a standard LAN cable.
Obtaining the IP Address

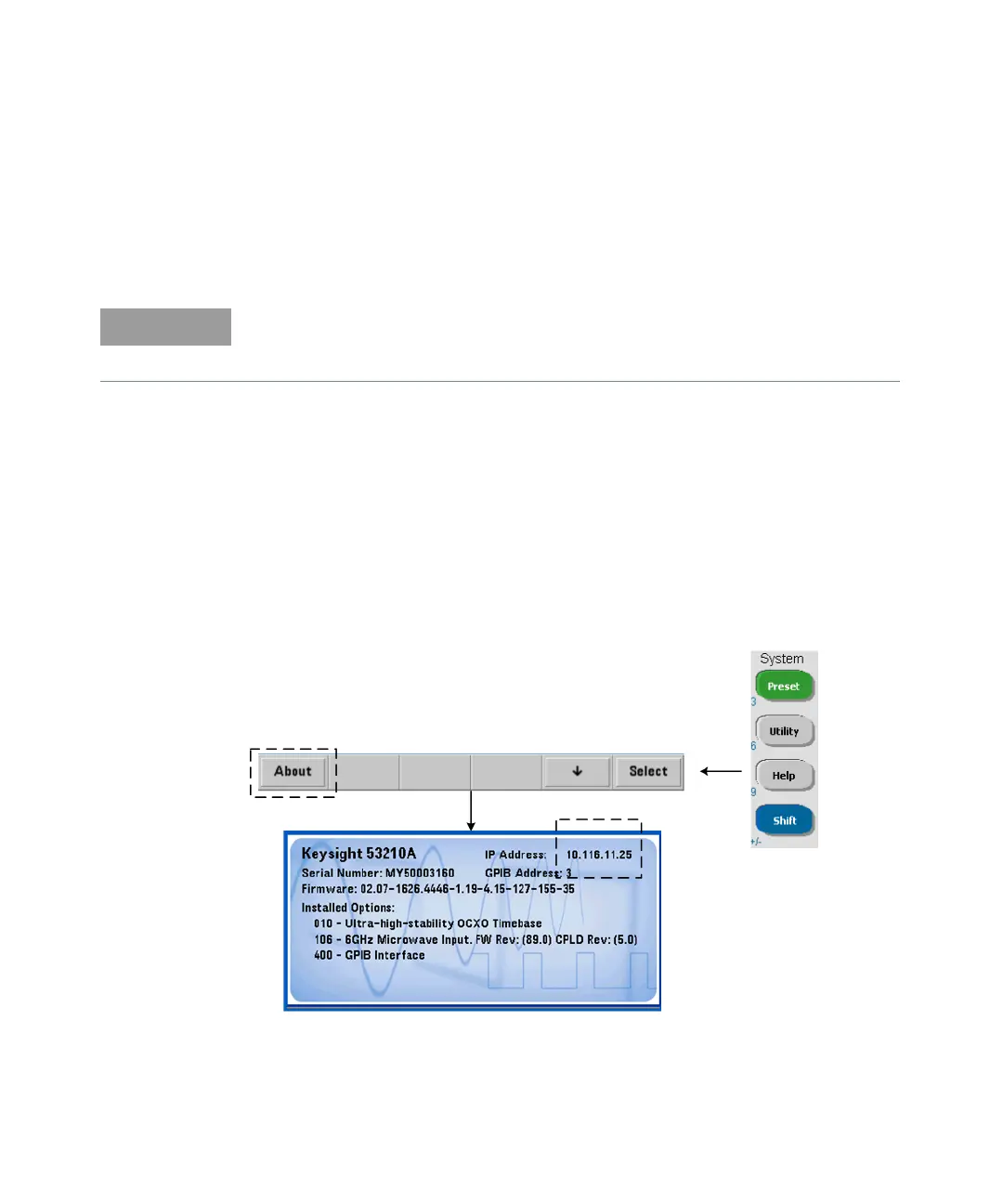

Turn on the counter and open the Web browser. Allow a few moments for the
counter’s IP address to be assigned (either through DHCP or AUTO IP). The IP
address can be read from the counter front panel as shown.
This section describes the Web pages and windows primarily used to program
the 53210A. Refer to “Help with this Page” associated with each Web page for
additional information on functions or pages not covered in this manual.
