Keysight E3634A - Product at a Glance; The Front Panel at a Glance

1General Information
32 Keysight E3633A and E3634A User’s Guide
Product at a Glance

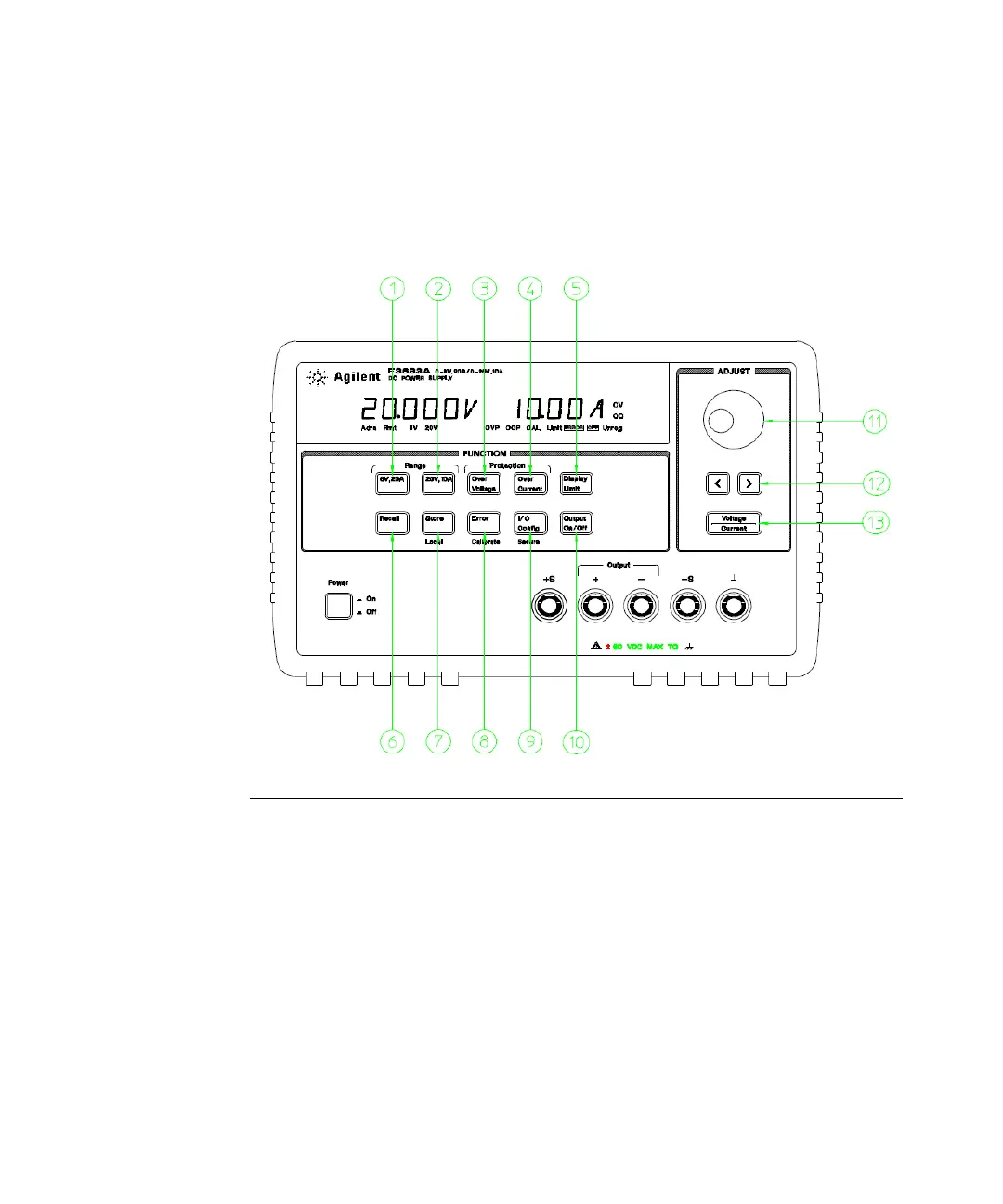

The front panel at a glance
1 8V/20A range selection key (E3633A)
25V/7A range selection key (E3634A)
7 Store operating state/Local key
8 Error/Calibrate key
2 20V/10A range selection key (E3633A)
50V/4A range selection key (E3634A)
9 I/O Configuration key
10 Output On/Off key
3 Overvoltage protection key 11 Control knob
4 Overcurrent protection key 12 Resolution selection keys
5 Display key limit 13 Voltage/current adjust selection key
6 Recall operating state key
