3 Front-Panel Operation
70 Keysight E3633A and E3634A User’s Guide
Remote voltage sensing at the rear panel
External sense terminals are also available on the back of the power supply that
allow the rear output voltages to be sensed at the load, which compensates for
impedance losses in the load wiring. The front panel binding posts are paralleled
with the rear output terminals.
The rear output terminals accept wires sizes from AWG 22 to AWG 10.
To minimize the possibility of instability on the output, keep load leads as short as
possible and bundle or twist the leads tightly together to minimize inductance.

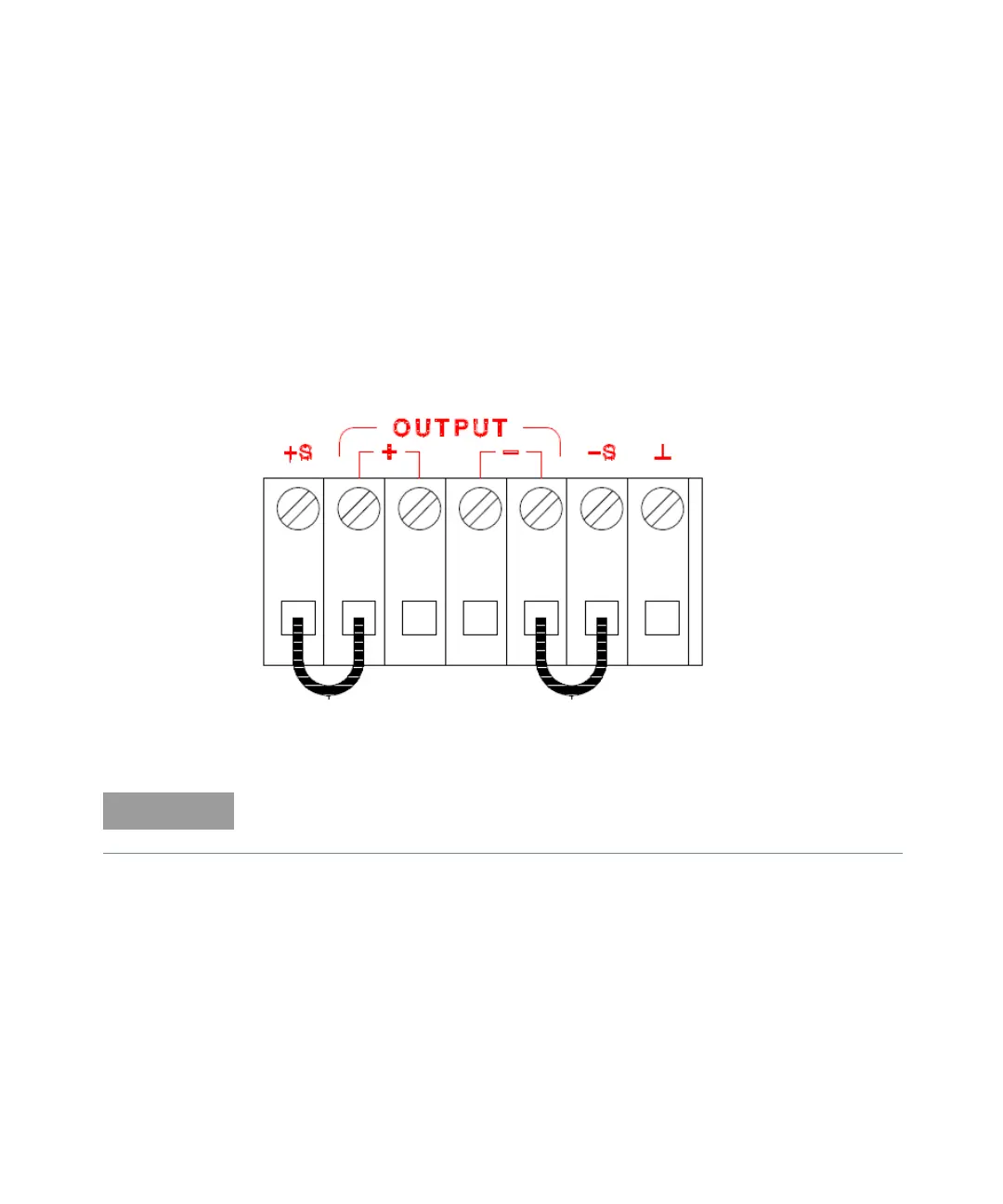

Figure 3-3 Rear local sensing connections
For rear local voltage sensing connections, the front shorting bars must be
removed first and connect the sense wires as shown in Figure 3-3.
