Keysight E5071C ENA Series User Manual

14 Keysight E5071C ENA Series RF Network Analyzers
Installation
Environmental Requirements
2-
Ventilation Requirements
To ensure safety requirements, the specifications and measurement accuracy
of the analyzer, you must keep environmental temperature within the specified
range by providing appropriate cooling clearance around the analyzer or, for
the rack-mount type, by forcefully air-cooling inside the rack housing. For
more information on environmental temperature to satisfy the specifications
and measurement accuracy of the analyzer, see the specification in the
E5071C Online Help.
When the environmental temperature around the analyzer is kept within the
temperature range of the operating environment specification (See Section
“Operating Environments” on page 13), the analyzer conforms to the
requirements of the safety standard. Furthermore, under that temperature
requirement, the analyzer still conforms to the requirements of the safety
standard even when placing the analyzer with cooling clearance as follows:

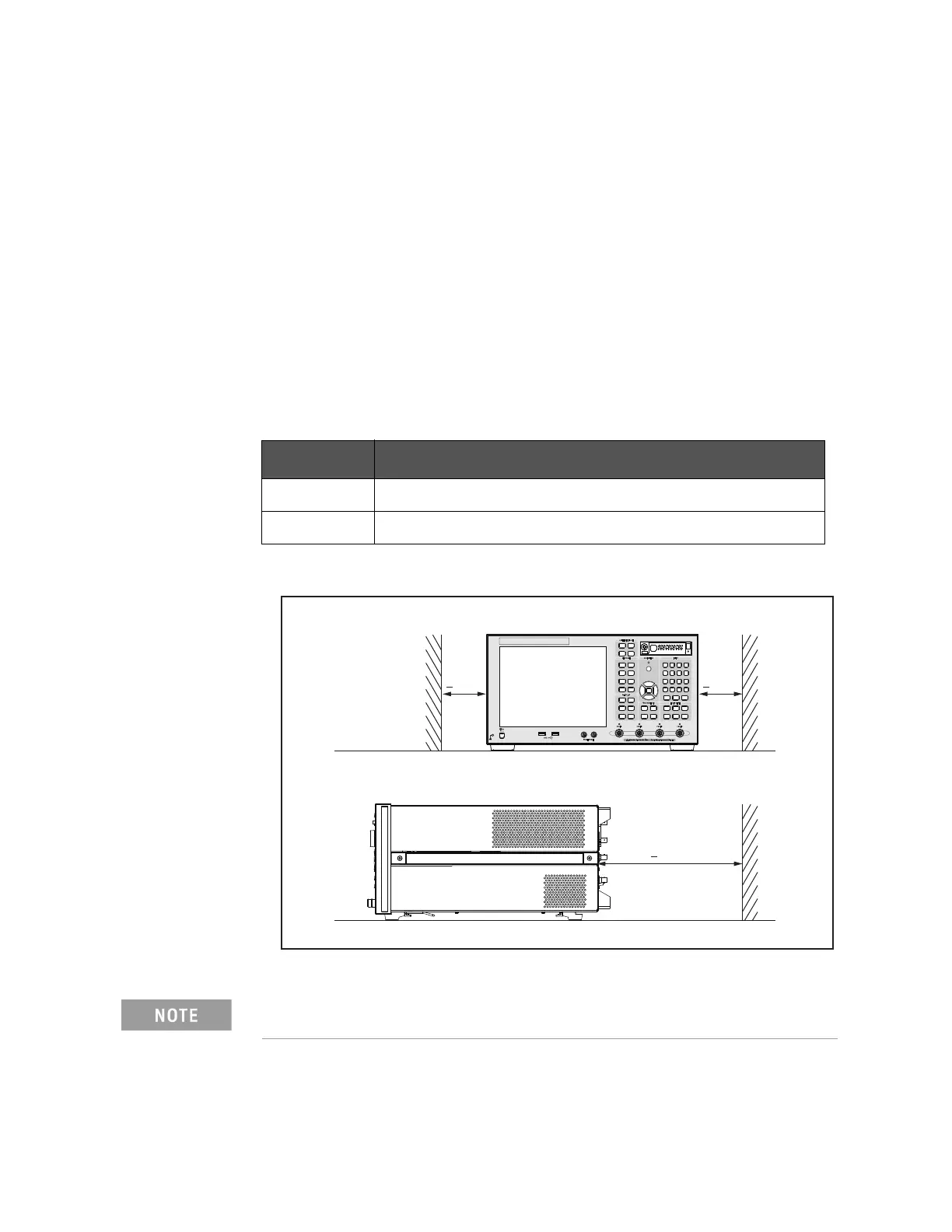

Figure 2-1 Ventilation space at the installation
Requirements
Back ≥ 180 mm
Sides ≥ 60 mm (both right and left)
Place the E5071C in a proper position as show in Figure 2-1.
e5071cqe2001
Softkey On/Off
Capture
Softkey On/Off
Capture
+ 26 dBm RF 35 VDC Max
Avoid Static Discharge CAT Σ
ACTIVE CH/TRACE
RESPONSE
NAVIGATION
ENTRY
INSTR STATEMKR/ANALYSIS
STIMULUS
PORT 1 PORT 2 PORT 3
PORT 4
USB
PROBE POWER
OO OO
OO

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
