Keysight E5071C ENA Series User Manual

Keysight E5071C ENA Series RF Network Analyzers 19
Installation
Connecting the Accessories
Connecting the Accessories
You need to connect some accessories before use.
Connecting the BNC Adaptor (Option 1E5)
When the E5071C is equipped with Option 1E5 (high-stability frequency
standard), connect the BNC adaptor from the Ref Oven terminal to the Ref In
terminal on the rear panel. The BNC adaptor is included in Option 1E5. When
Option 1E5 is installed, the frequency accuracy and stability of the E5071C will
further improve.

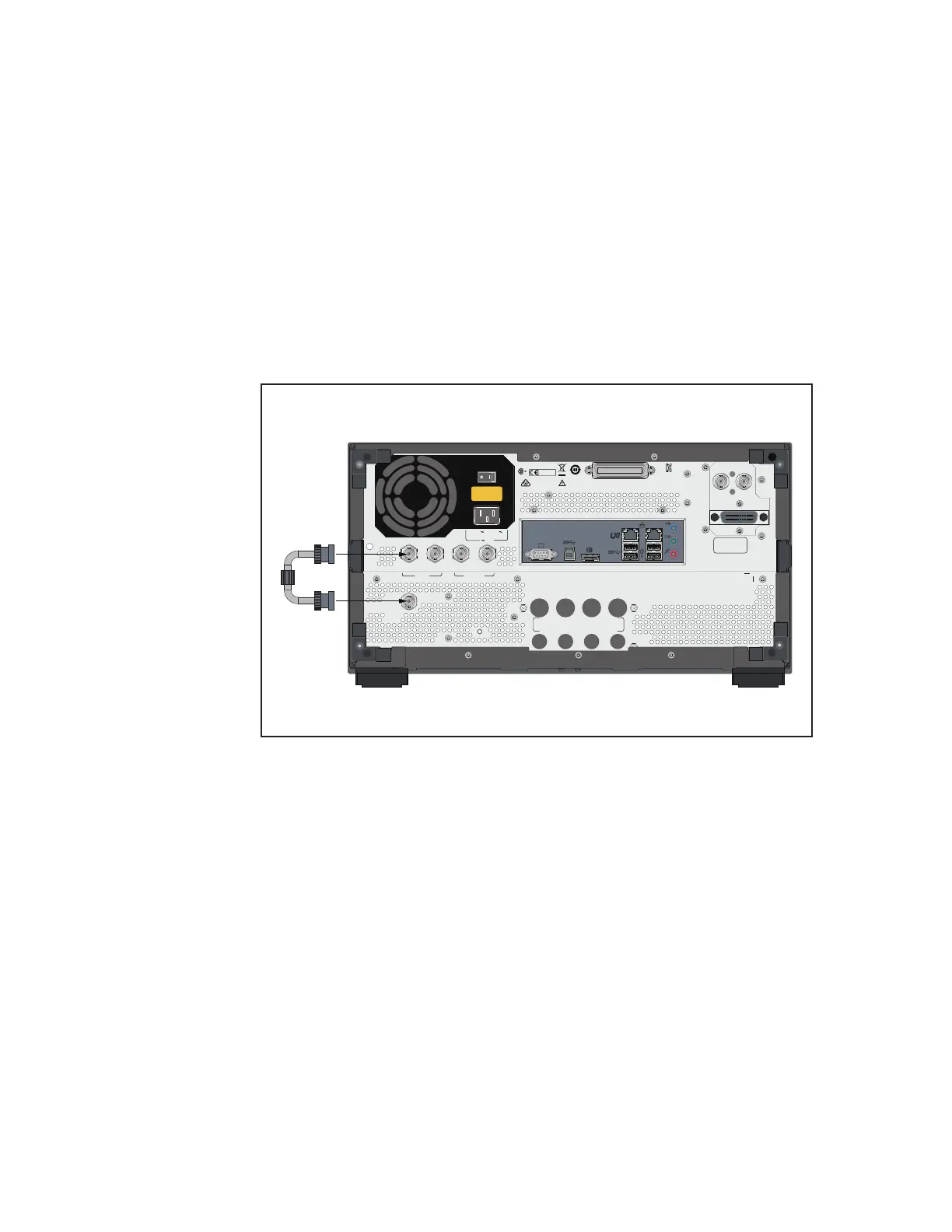

Figure 2-4 Connecting the BNC adaptor
Connecting Mouse and Keyboard
The E5071C allows you to connect Mouse and/or keyboard through USB. USB
mouse and keyboard can be connected with the USB ports on the front or rear
panels.
System Recovery of the E5071C requires the mouse and keyboard before
turning on the power.
e5071cqe1002
EXT TRIG
OUT
EXT TRIG
IN
GPIB
Serial Label
KCC-REM-ATi-
WNANALYZERF36
CUS
ICES/NMB-001
ISM GRP 1-A
REF IN
AUX IN 2
AUX IN 1REF OUT
LINE
50/60 Hz 350 VA Max
115 V
- 230 V
ccr.keysight@keysight.com
24 BIT I/O
REF OVEN
(
10 MHz
)
10 MHz
±1 V, ±10 V
Windows
Label
Switch must remain
ON while operating.
NOTE
BNC adaptor

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
