Keysight E5071C ENA Series User Manual

56 Keysight E5071C ENA Series RF Network Analyzers
Troubleshooting
System Recovery
3-

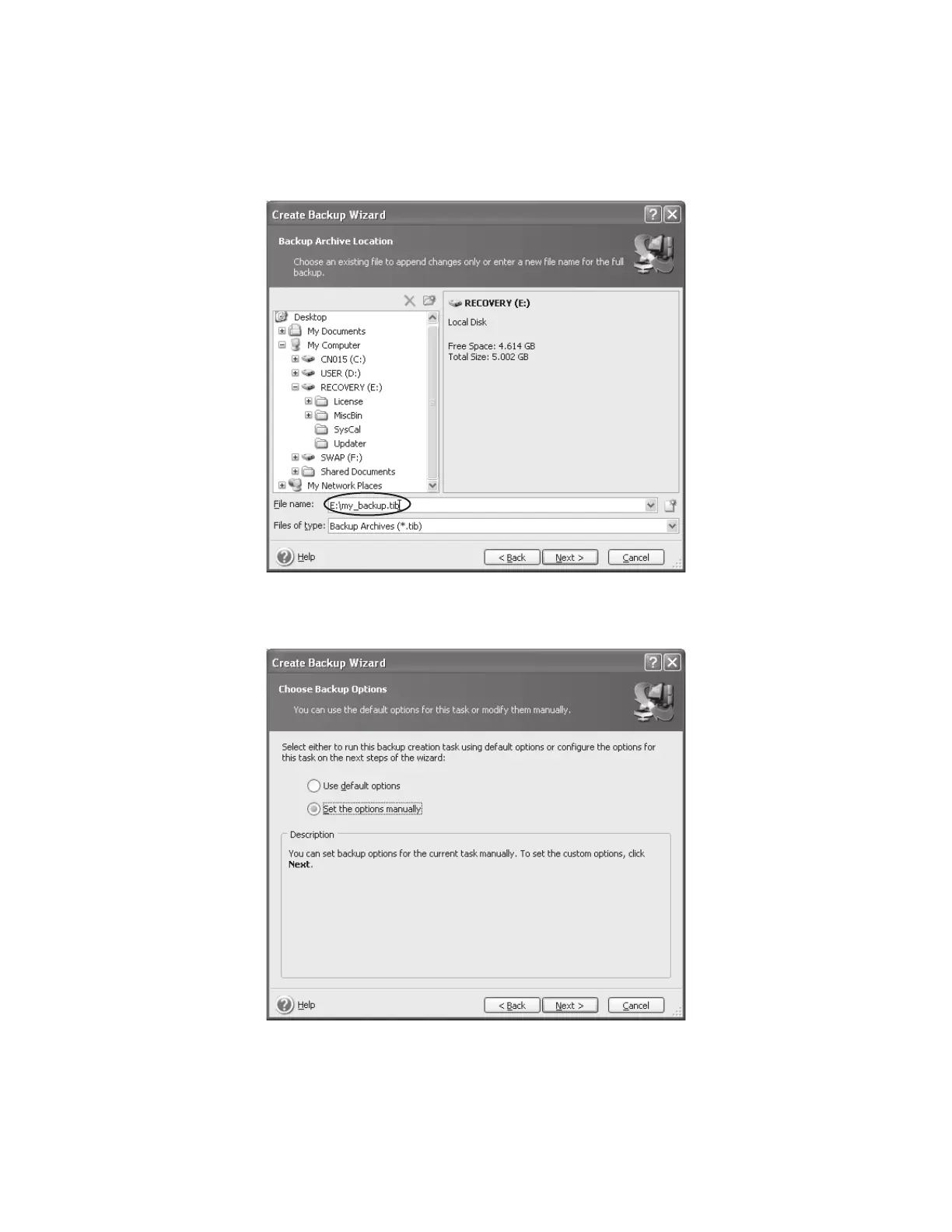

Step 9. Select the destination folder and input a file name, then click Next button. It
is recommended to save the file to a directory which has enough space like
the E drive. Also, never save the contents of the drive to the C, D or F drive.
Step 10. Select “Set the options manually” and click Next button.
e5071cse1129
e5071cse1130

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
