Overview 1
Keysight E6961A User Guide and Method of Implementation 15

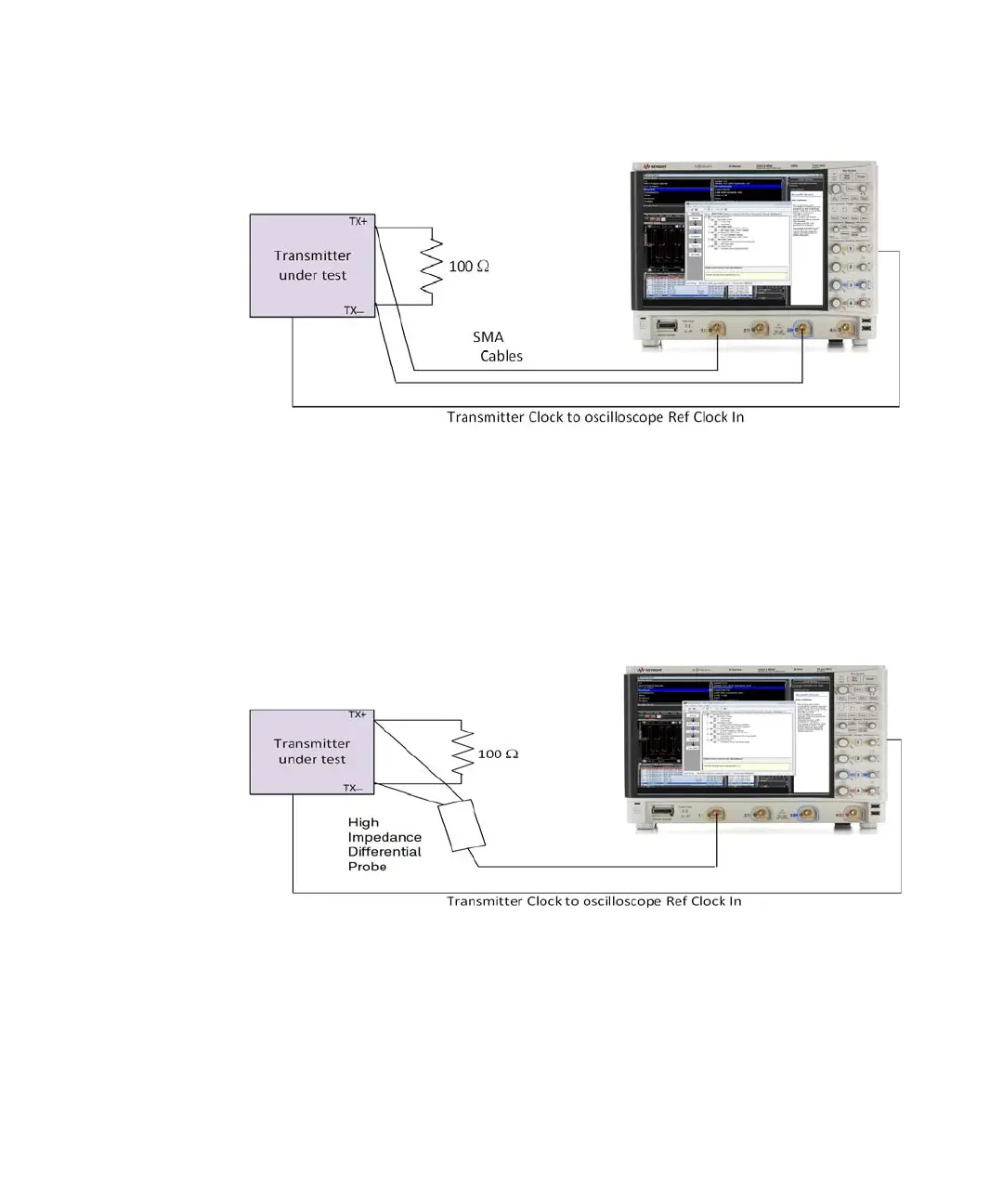

Figure 1-1 Connection to the Oscilloscope Using a Pair of SMA Cables
Single Differential Probe Connection to Oscilloscope
A differential probe is used to connect the output of the transmitter to the
oscilloscope. The specific oscilloscope channel used can be selected in the
Configure tab of the application.
An optional TX_TCLK may be supplied to the oscilloscope to run the tests.
Figure 1-2 Connection to the Oscilloscope using a Differential Probe
