Keysight E6961A User Manual

Overview 1
Keysight E6961A User Guide and Method of Implementation 37

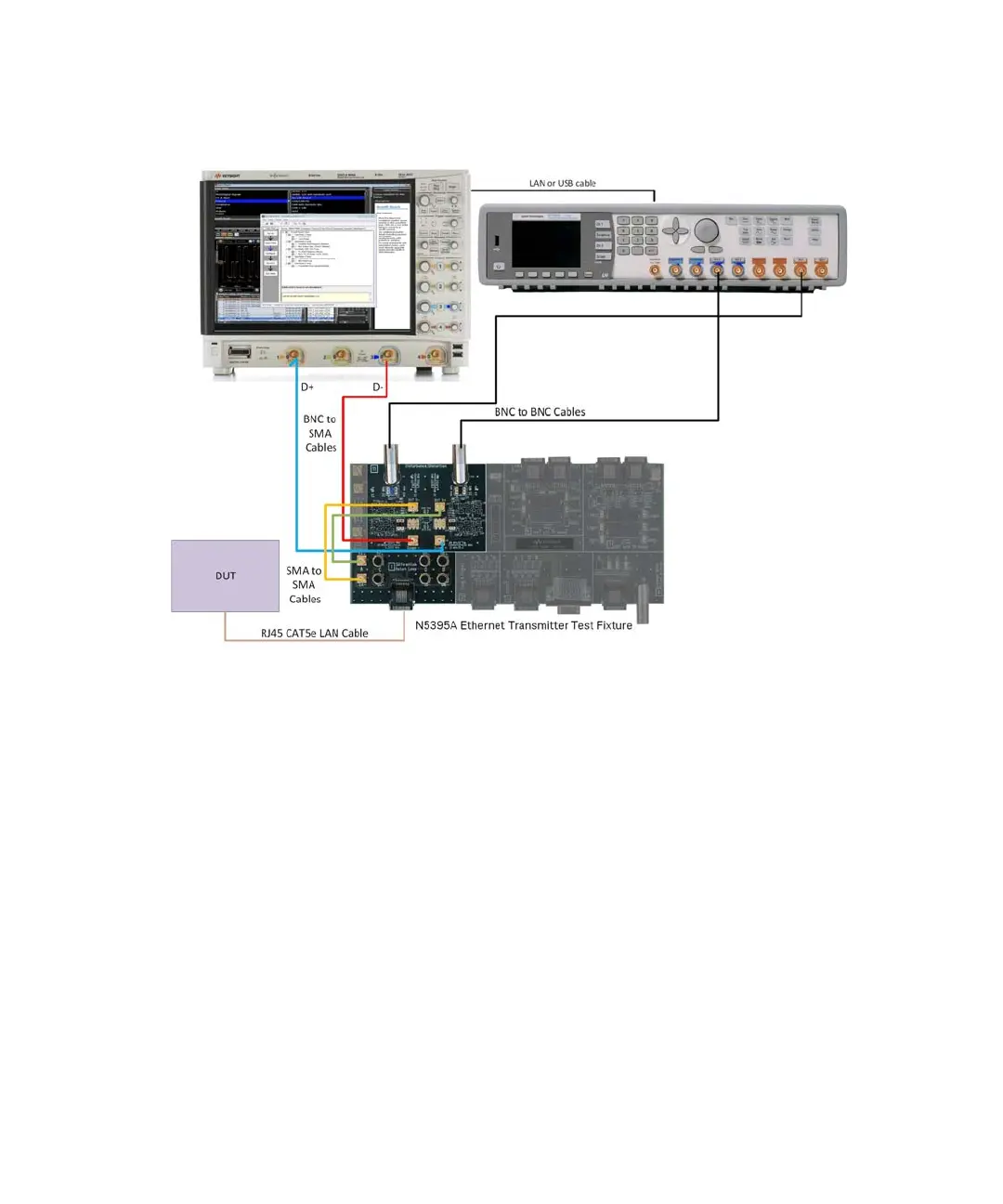

Figure 1-18 Connection for Transmitter Distortion Test Using Keysight
81150A Function Generator
Using the Optional E6961A Frequency Divider Board
If you want to use the optional E6961A Frequency Divider Board to provide a
stable 10 MHz reference clock, refer to “Appendix D: Using the E6960-66600
Frequency Divider Board” on page 67 for detailed information.
Specification References
[1] BroadR-Reach Physical Layer Transceiver Specification, v3.2, Section 5.4.2.
[2] BroadR-Reach Physical Layer Transceiver Specification, v3.2, Section 8.2.2.
