1Overview
16 Keysight E6961A User Guide and Method of Implementation
Connection Using the N5395C Ethernet Transmitter Test Fixture
Alternately, you can use Section 1 of the N5395C Ethernet 10/100/1G Transmitter
Electrical Test Fixture to make connections to the Transmitter under test. The
SMA connections shown are for wire pair A (DA+ and DA–) in the RJ45 cable. This
connection is only valid if the DUT has an RJ45 connector. To test to wire pair B,
C, or D, connect the oscilloscope SMA cables to the appropriate Evaluation Board
SMA connectors. In the event the DUT does not have a RJ45 connector, user will
need to replace Section 1 with any adapter that converts the differential
automotive pair to SMA.

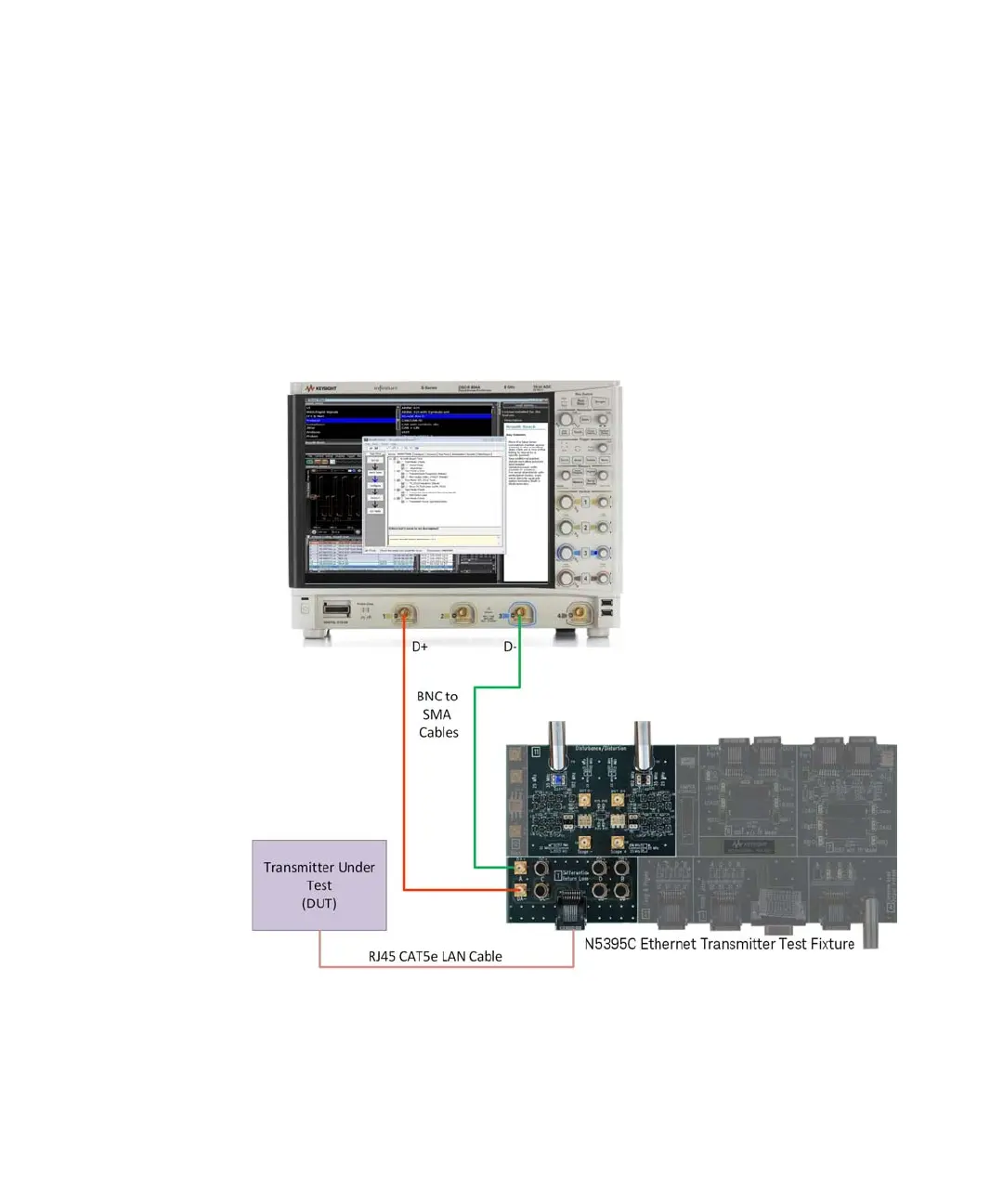

Figure 1-3 General Test Setup using the N5395C Evaluation Board
