26 Keysight InfiniiVision DSOX1204A/G Oscilloscopes User's Guide
1 Getting Started

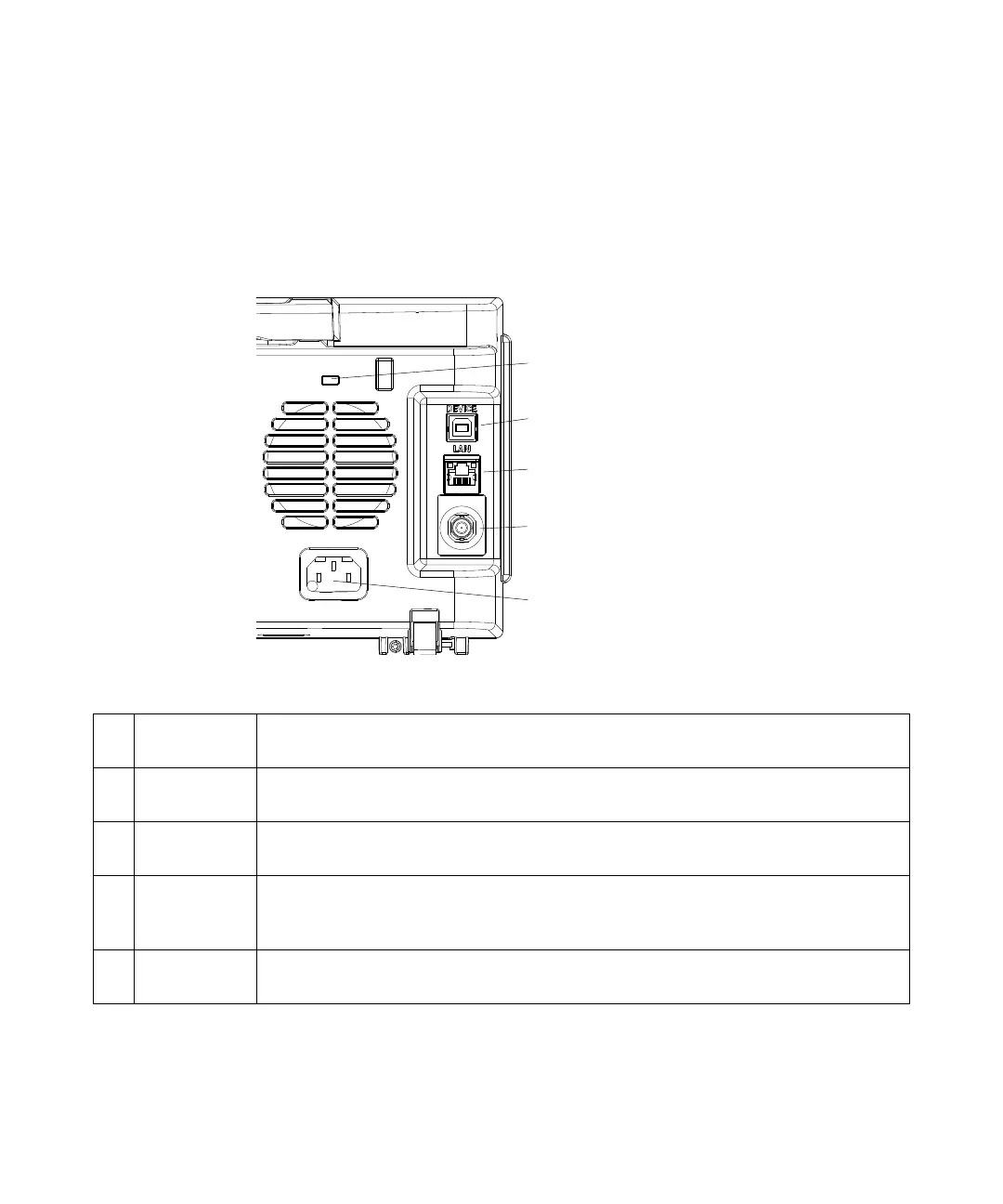

Learn the Rear Panel Connectors
For the following figure, refer to the numbered descriptions in the table that
follows.
3. USB Device port
1. Power cord connector
2. Kensington lock hole
5. Ext Trig input
4. LAN port
1. Power cord
connector
Attach the power cord here.
2. Kensington lock
hole
This is where you can attach a Kensington lock for securing the instrument.
3. USB Device
port
This port is for connecting the oscilloscope to a host PC. You can issue remote commands from a
host PC to the oscilloscope via the USB device port. See "Utility Settings" on page 87.
4. LAN port Lets you print to network printers (see "Print (Screens)" on page 85), access the oscilloscope's
built-in web server, and issue remote commands. See "Web Interface" on page 93, "Accessing
the Web Interface" on page 93, and "Utility Settings" on page 87.
15. Ext Trig input External trigger input BNC connector. See "External Trigger Input" on page 53 for an explanation
of this feature.
