Keysight M8194A 120 GSa/s Arbitrary Waveform Generator User Guide 95
M8194A Soft Front Panel 3
When imported the MSBs DB13 to DB6 are used as 8-bit sample values.
All other bits including marker bits SYNM and SMPM are ignored.

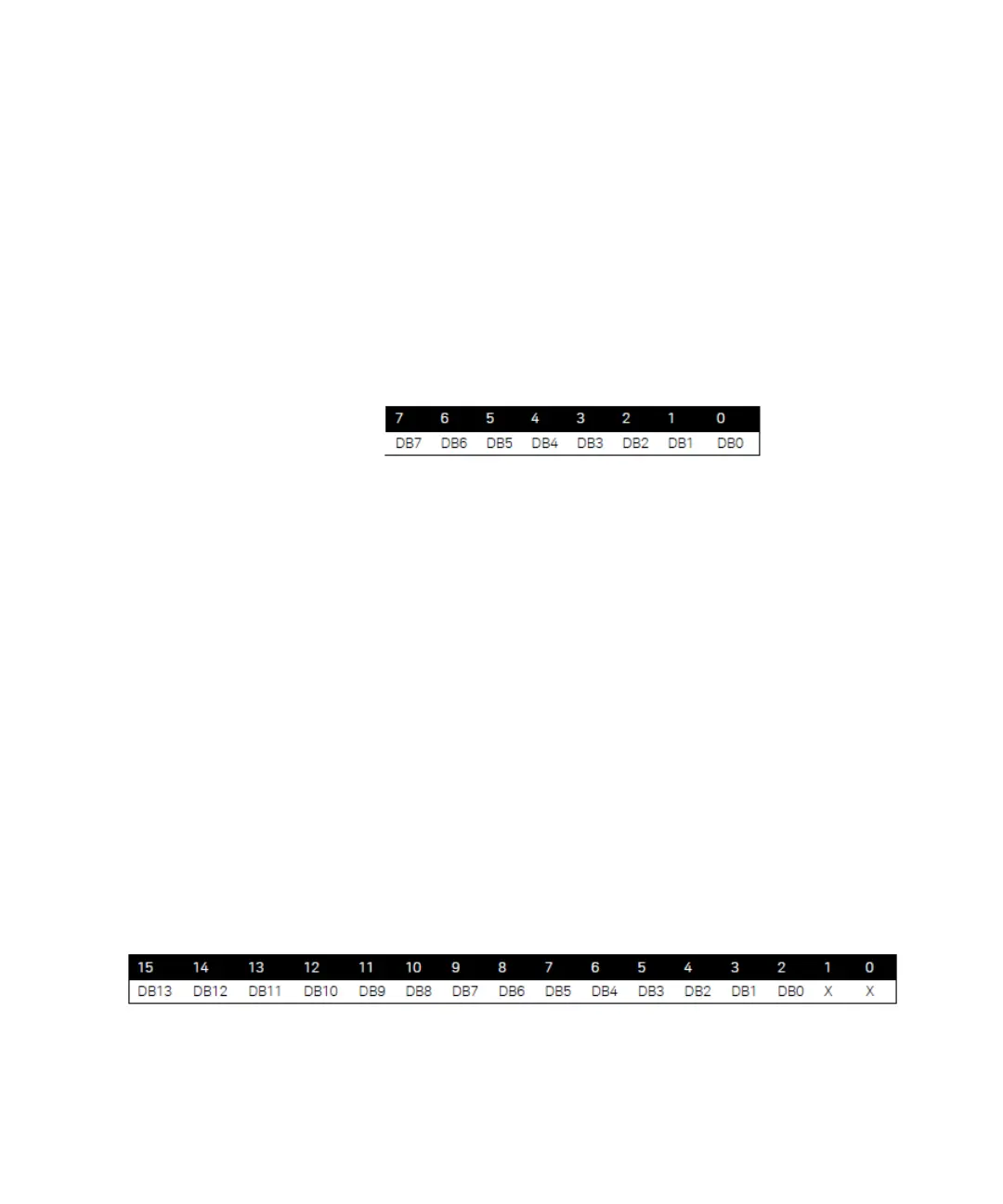

BIN8
BIN8 is the most memory efficient file format for the M8194A without
digital markers. As a result, the fastest file download can be achieved
One file contains waveform samples for one channel. The waveform
samples can be imported to any of the four M8194A channels. Samples
consist of binary int8 values:
IQBIN
Compatibility: Keysight M8190A.
One file contains waveform samples for two M8190A channels plus
optionally digital marker information.
Channel mapping
I is mapped to channel 1
Q mapped to channel 2
Sample Marker 1 is ignored
Sample Marker 2 is ignored
BIN6030
Compatibility: Keysight N6030
Binary int16 values (in little endian byte order). The Keysight N6030 has 15
bits and uses the most significant digits, ignoring the LSB.
