C-6.1 Abort Switch
The abort switch is connected to an addressable contact
monitor (P/N 70-407008-001) which is programmed as an
abort input with a selected abort style, as explained in Table
C-1. The addressable contact monitor is connected to a
Listed abort station, such as the Kidde Suppression Sys-
tem Abort switch (P/N 87875201). Figure C-1 shows the
interconnection of the addressable contact monitor and
the abort station switch.

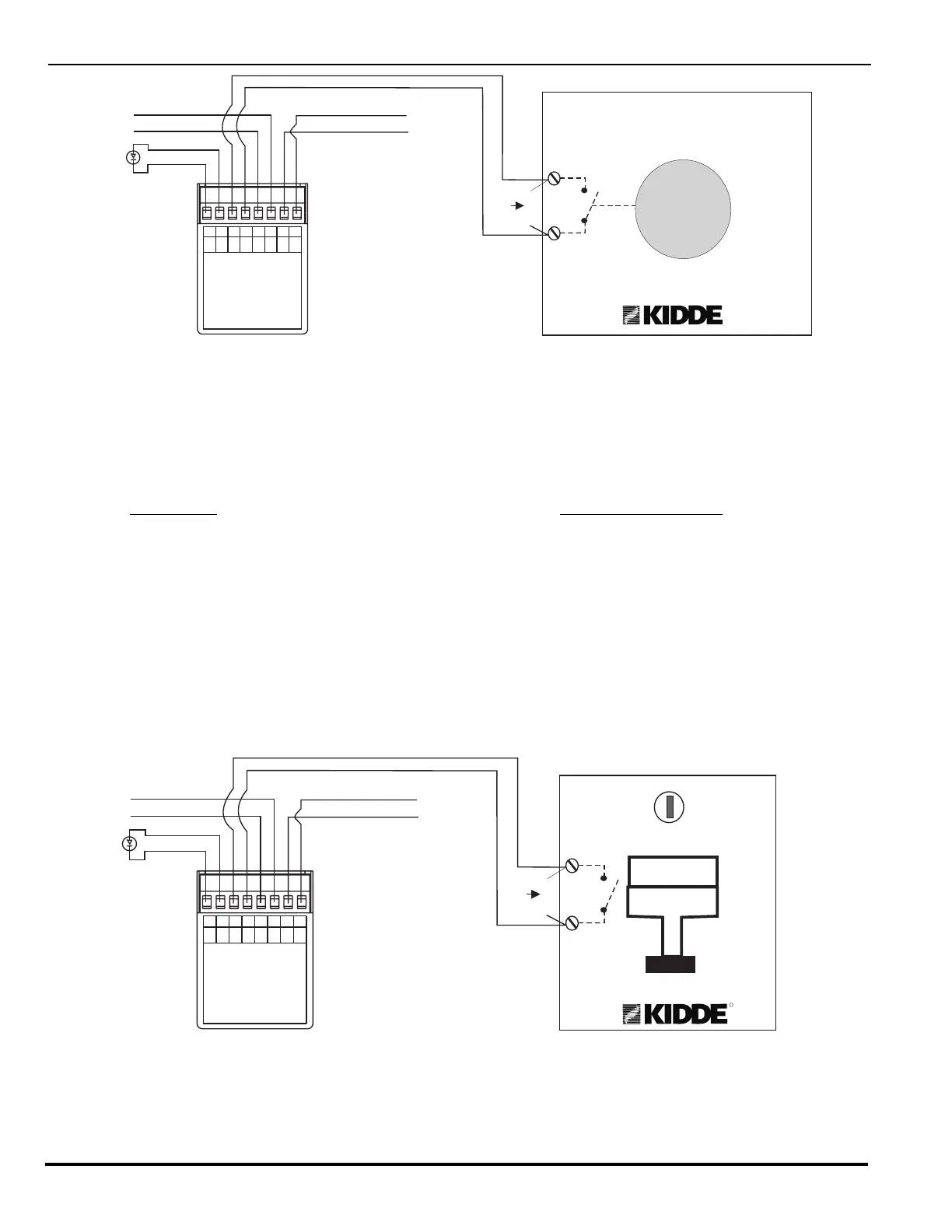

Figure C-1. Addressable Contact Monitor Interconnection with Abort Switch
Note: The 10-K ohm resistor must be connected across the abort station contacts for supervision. Failure to install this
resistor will result in a "Trouble Open" message for that monitor.
Addressable Contact Monitor
P/N 70-407008-001
PUSH / HOLD
SUPPRESSION SYSTEM ABORT
.
10K ohms
P/N 06-129025-003
P/N 87875201
MODEL AI, N/O
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-407008-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120°F
7654321
06-235578-001
PC PC PC PC
(+) (-) (+) (-)
8
A
SW
B
SW
(+)
LED
(-)
LED
Remote LED
(Optional)
PC Line
In
(+)
(-)
(+)
(-)
PC Line
Out
ALL TERMINALS ARE POWER LIMITED
C-6.2 Manual Release Switch
The manual release switch is an addressable contact moni-
tor (P/N 70-407008-001) which is programmed as a manual
release input. The addressable contact monitor is con-
nected to a Listed manual release station such as the Kidde
Suppression Agent Release switch (P/N 84-100007-00X).
Figure C-2 shows the interconnection of the addressable
contact monitor and the manual release switch.
Figure C-2. Addressable Contact Monitor Interconnection with Manual Release Switch
Note: The 10-K ohm resistor must be connected across the manual pull station contacts for supervision. Failure to
install this resistor will result in a "Trouble Open" message for that contact monitor.
PUSH
PULL
R
P/N 84-100007-00X
Addressable Contact Monitor
P/N 70-407008-001
.
10K ohms
P/N 06-129025-003
MODEL AI, N/O
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-407008-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120°F
7654321
06-235578-001
PC PC PC PC
(+) (-) (+) (-)
8
A
SW
B
SW
(+)
LED
(-)
LED
Remote LED
(Optional)
PC Line
In
(+)
(-)
(+)
(-)
PC Line
Out
ALL TERMINALS ARE POWER LIMITED
