C-3 April 2003
76-100016-002
PEGAsys™ LV
C-7 AGENT RELEASE APPLICATIONS
C-7.1
CCM Release Output Wiring
The PEGAsys LV system provides one output on the CCM
(MP01, Terminal TB4, sounder 1 "A" leg), that is defaulted
as a release output. See Appendix I and the PCS User's
Manual for details on the configuration of this output.

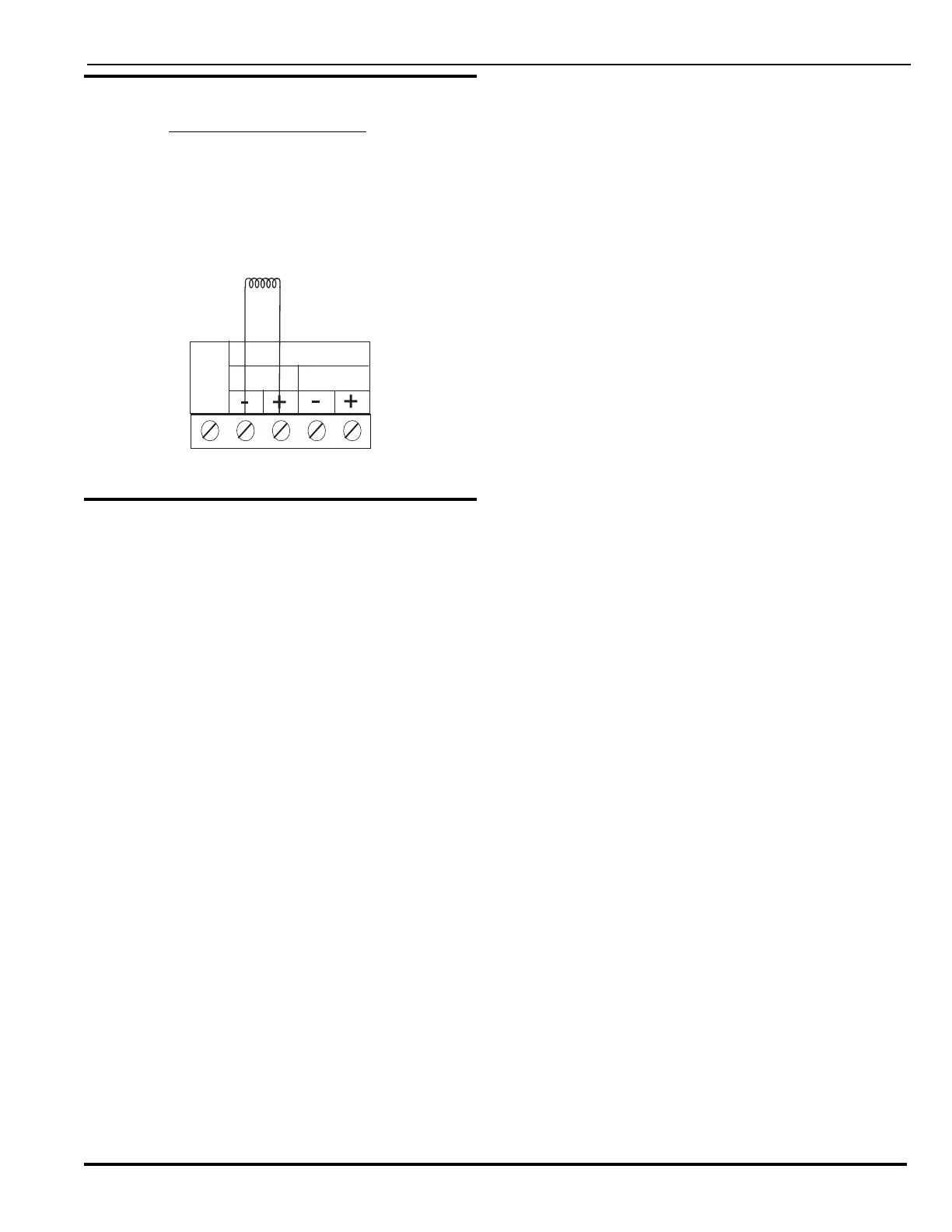

An example of the CCM releasing circuit wiring is shown
in Figure C-3. (For wiring details, see Appendix I.)
SOUNDER 1
REP 1
AB
Figure C-3. CCM Release Output, Wiring Basics
C-7 PRE-ACTION SPRINKLER
APPLICATIONS
The PEGAsys LV system can be used to activate and su-
pervise pre-action sprinkler and deluge sprinkler systems
for protection of facilities. The CCM output (MP1) can be
programmed for use with most popular sprinkler solenoids.
For sprinkler applications the addressable input module
(P/N 70-407008-00x) can be used to monitor and super-
vise any of the following sprinkler type inputs, as required,
for each particular application. Inputs could be air pres-
sure, waterflow, water level (tank), pump running, etc. Refer
to Chapter 2 for details on programming the addressable
input device for various reporting styles.
