TOS93 Series User’s Manual 211
External Control

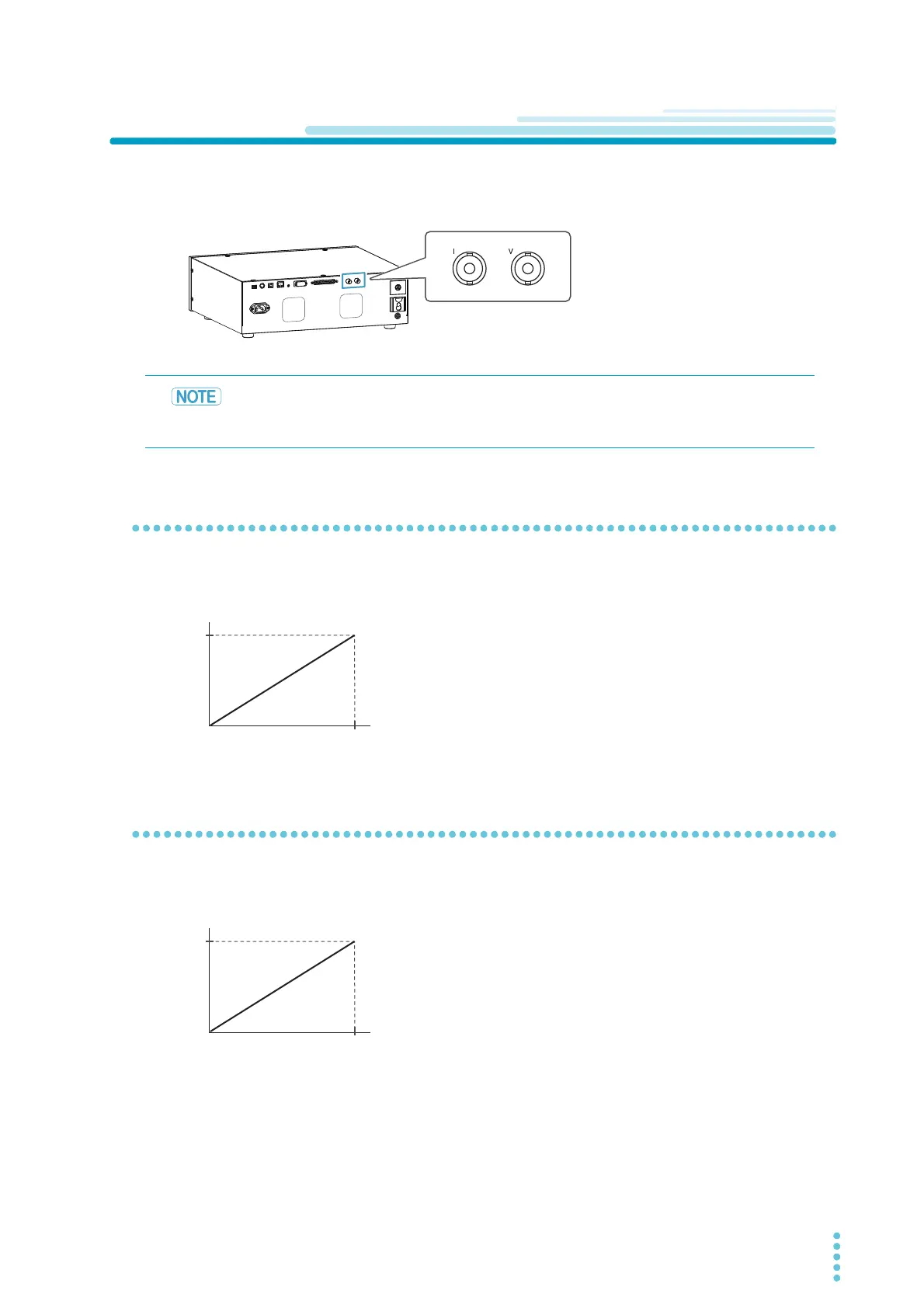

Monitoring Measurements
Current and voltage waveforms of withstanding voltage tests can be monitored using the signal output
from the monitor terminal on the rear panel.
Monitoring current waveforms
Current waveforms of withstanding voltage tests can be monitored using the signal output from the I termi-
nal on the rear panel.
Monitoring voltage waveforms
Voltage waveforms of withstanding voltage tests can be monitored using the signal output from the V ter-
minal on the rear panel.
Monitor signal output is isolated from the chassis (earth). If you connect an oscilloscope or
an external device whose BNC shield is grounded, be sure to set the grounding mode (GND)
on the test conditions to Guard.
1
V
0
Current
50 mA
Monitor output
Max: 15 Vpeak
1
V
0
Voltage
1kV
Monitor output
Max: 15 Vpeak
