Withstanding Voltage and Insulation Resistance Tests | Setting Test Conditions
Setting scanner channels (Edit)
Set the scanner channels when the TOS9320 high voltage scanner option (p.280) is connected.
Set each scanner channel connection to High, Low, or Open.
1
On the Home menu screen, press Route.
2
Use the rotary knob and the ←/→ keys to select a channel, and then press Edit.
3
Use the sub-function keys to select the connection, and press ENTER.
4
To continue setting other channels, use the rotary knob and ←/→ keys to select the
scanner and channel and the sub-function keys to select the connection.
5
When all settings are complete, press Edit.
This completes the setting.
To make the association between the connected test lead and channels clear, affix the chan-
nel labels supplied with the scanner to the test leads.

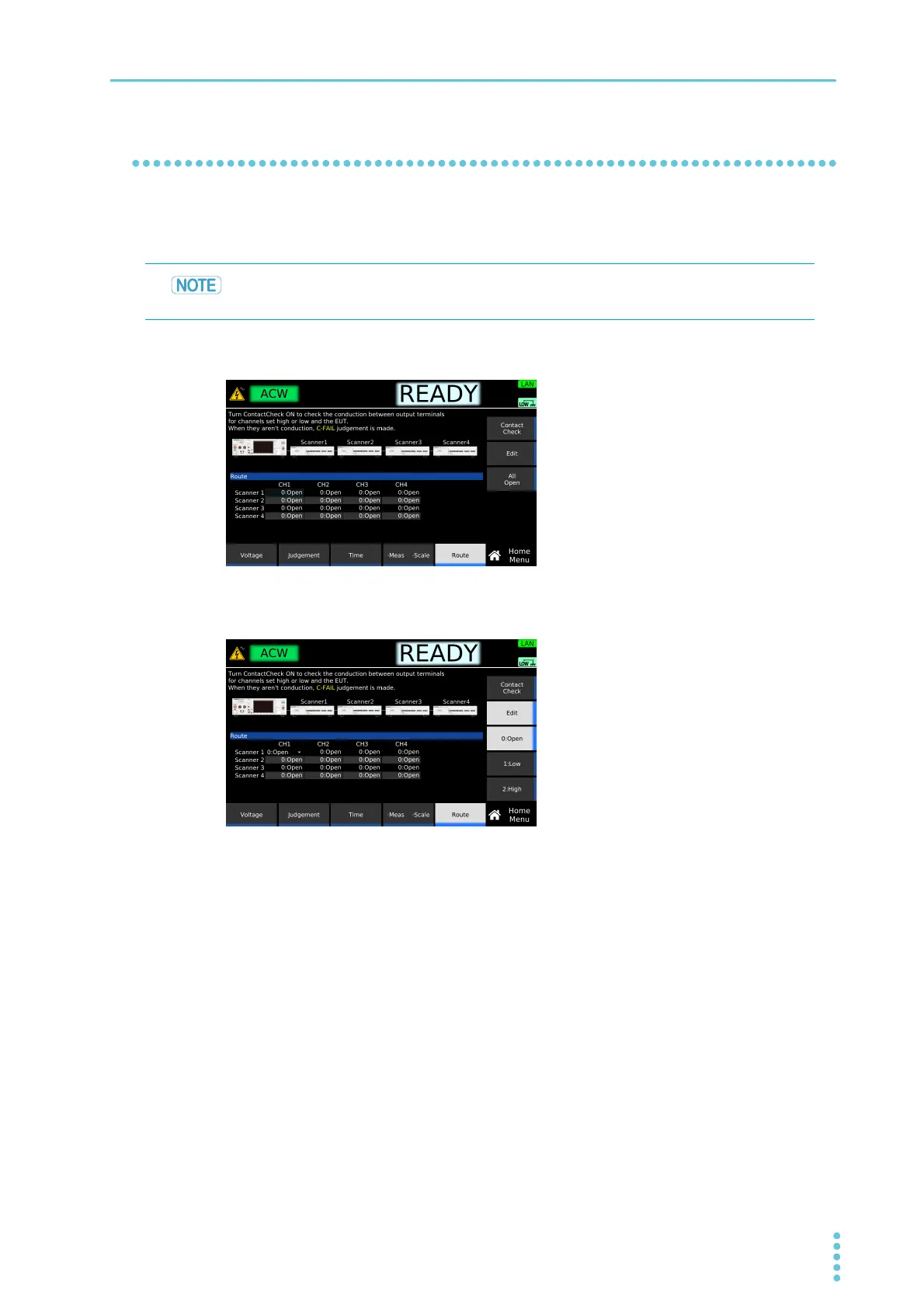

Example: Home menu screen of ACW
To Next Page
