Installation | Connection for Leakage Current Tests
Using the flat probe
In the touch current test, to measure the touch current when the enclosure of the EUT is touched with the
palm of your hand, use the supplied flat probe (FP01-TOS). The size of the metal foil of the FP01-TOS
(10 cm × 20 cm) complies with IEC 60990.

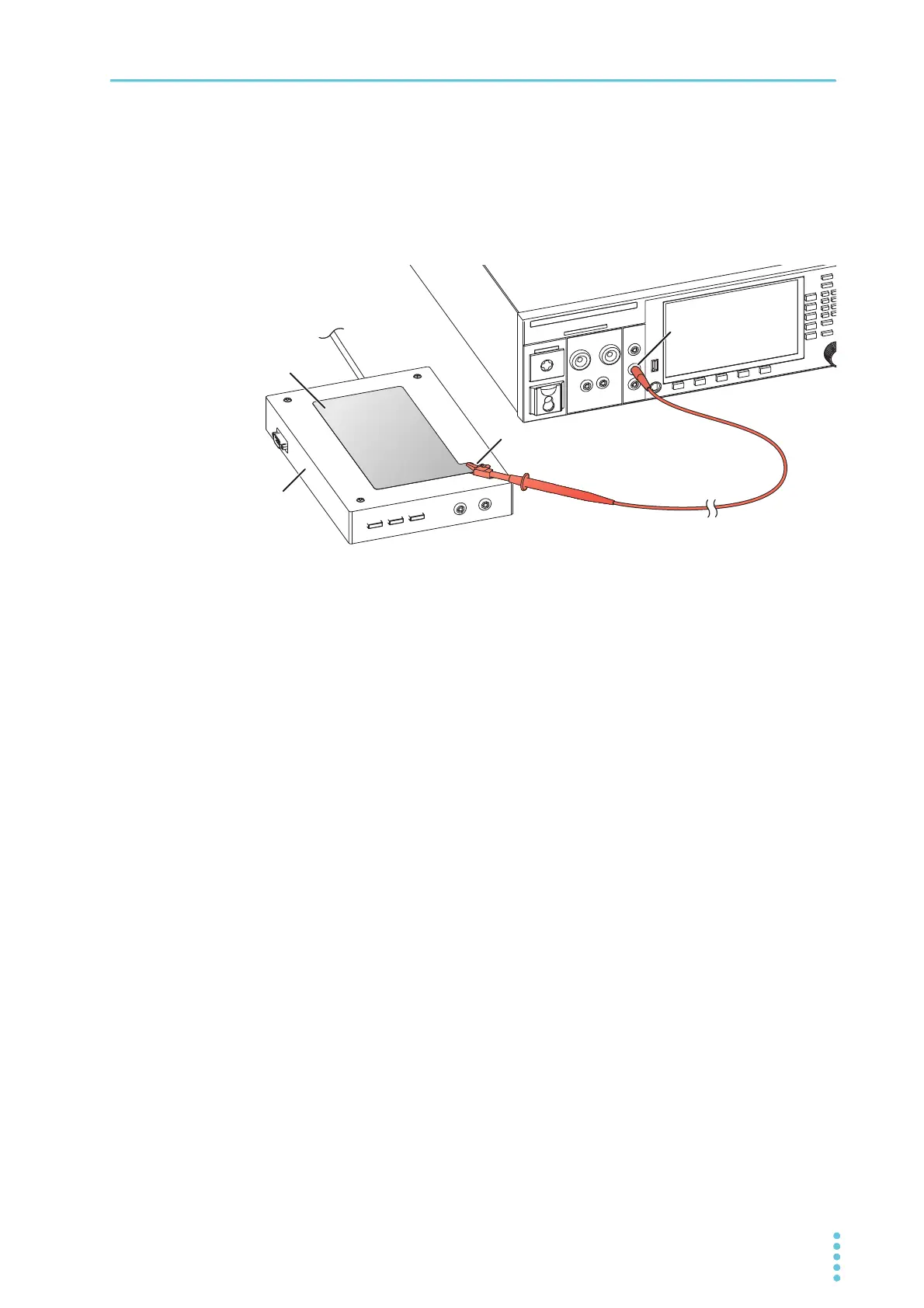

Connect the FP01-TOS as shown below.
Bring the probe in contact
with this part.
A terminal
Flat probe
Place the surface of
the metal foil in
close contact with
the EUT.
EUT
