If trying to lift an object with
e x c e s s i v e w e i g h t b y t h e
3-point hitch while the trac-
tor is not equipped with prop-
er front suit case weights,
the front wheels may be lift-
ed instead, leading to roll over.
Make sure to follow the speci-
cations for use.
WARNING

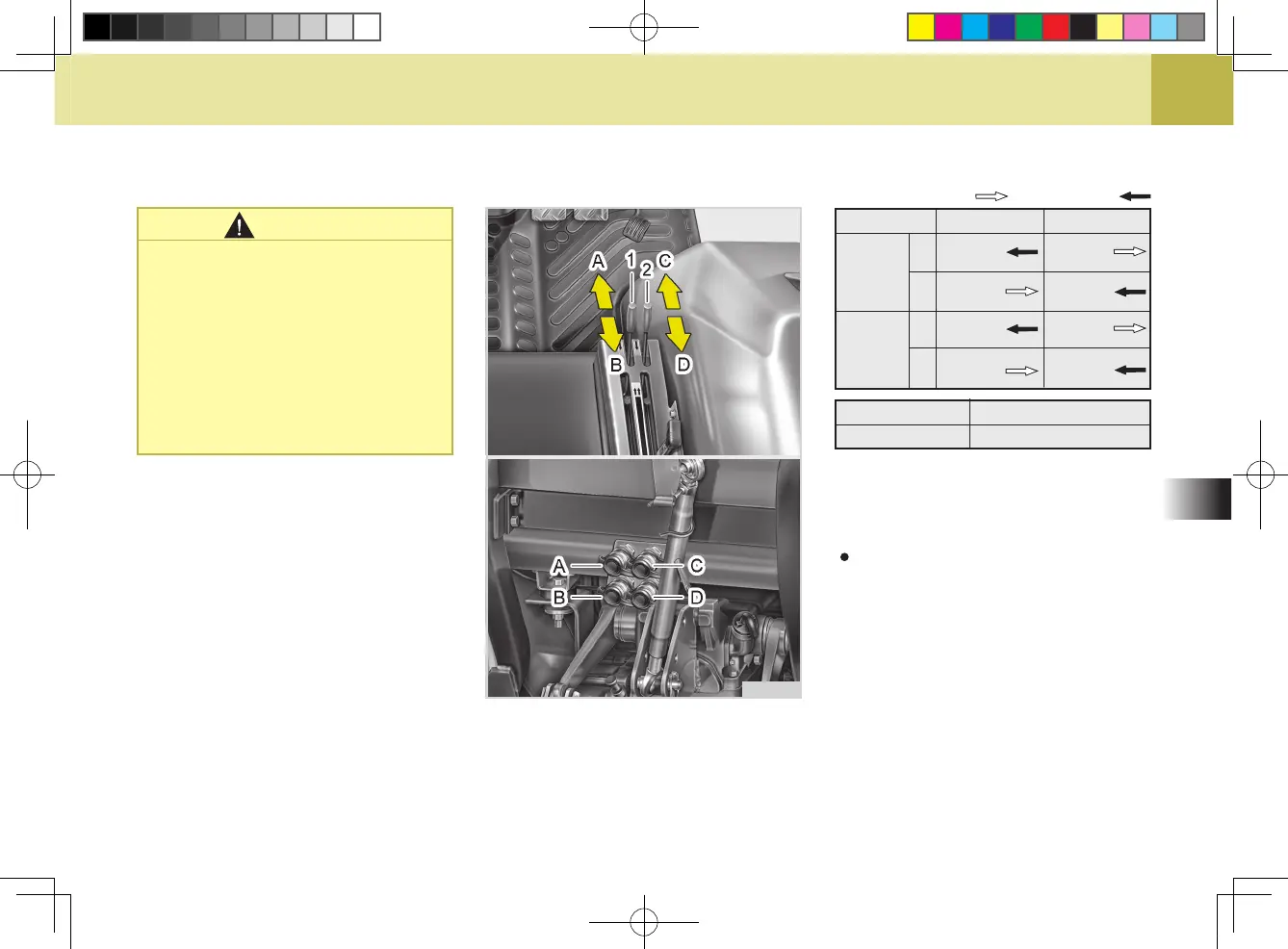

(1) Detent Double Acting Valve Lever
(2) Double Acting Valve Lever
(A) Port A (B) Port B
(C) Port C (D) Port D
H61O525A
REMOTE HYDRAULICS
DOUBLE ACTING VALVE
KIOTI supplies two types of the double
acting valves by region: detent type
(standard) and self-return type. (option)
For the detent type double act-
ing valve lever, it keeps its posi-
tion after it is pulled or pushed to
a certain position. Therefore, it is
not necessary to hold the lever to
a certain position which is suitable
for an implement with a long oper-
ating time, such as the hydraulic
motor.
Port
A
B
C
D
Lever 1
Lever 2
Pressure
Returning
Push Pull
In
Out
In
Out
Out
In
Out
In
Port A, B, C, D
Coupler Size
½ inch
