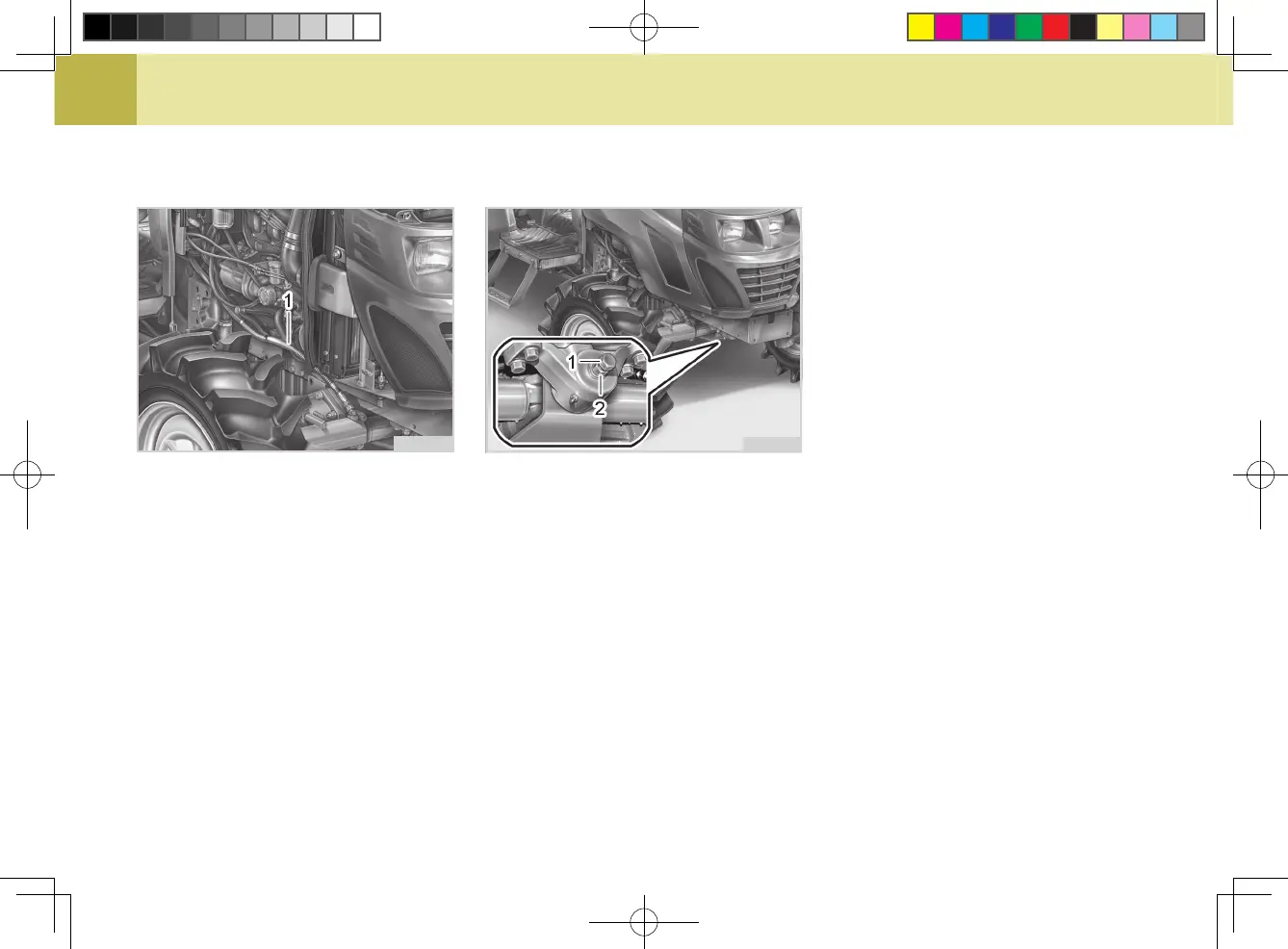

(1) Power Steering Oil Line
H61O734A
POWER STEERING LINE (AA)
1. Check to see that all hydrau-
lic lines and hose ttings are tight
and undamaged.
2. If damage is found you should re-
place the hose at once.
(1) Adjusting Bolt (2) Lock Nut
ADJUSTING FRONT AXLE PIV-
OT (AD)
If the front axle pivot pin adjustment
is not correct, front wheel vibration
can occur causing vibration in the
steering wheel
ADJUSTING PROCEDURE
Loosen the lock nut, tighten the ad-
justing screw all the way, and then
loosen the screw by 1/6 turn. Re-
tighten the lock nut.
H61O735A
This service can be affected by the
engine sensitively. Therefore, contact
your local KIOTI Dealer for this ser-
vice.
ADJUSTING ENGINE VALVE
CLEARANCE (AE)
