Kioti DS4110 - 7-Pin Power Output Socket; (1) 7-Pin Socket

4
-
26
DS4110(HS) / DS4510(HS)
H11O499B
7-PIN POWER OUTPUT
SOCKET

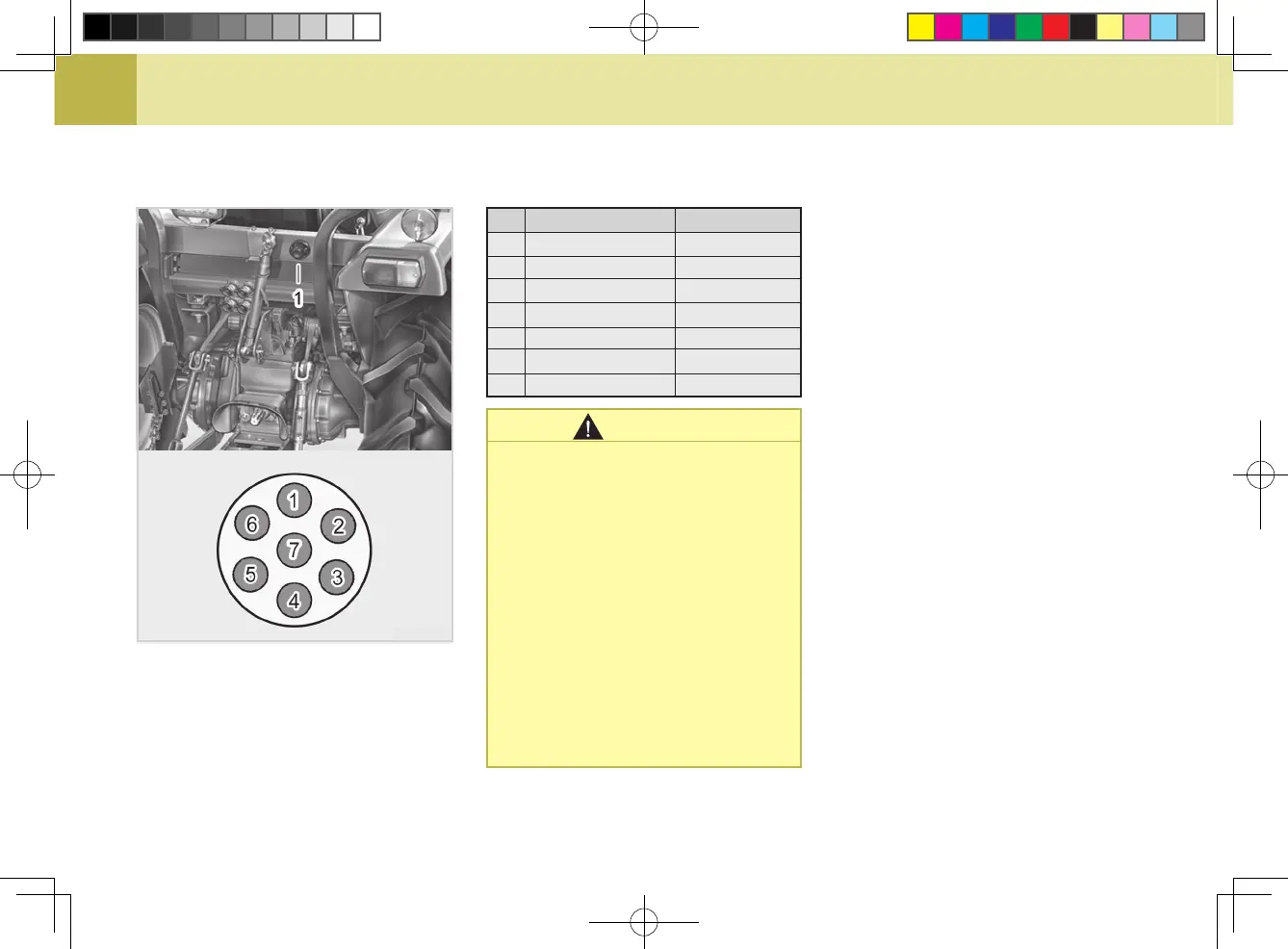

The 7-pin socket is installed on the
rear left side of the tractor.
This supplies power to the brake
lamps, turn signal lamps, and posi-
tion lamps of the trailer.
(1) 7-PIN Socket

When driving on a road with an
implement which has exterior
lamps, such as a trailer, make
sure to turn on those lamps by
connecting them to the 7-pin
socket in order to prevent an
accident.

Make sure to check for proper
operation after connecting the
7-pin socket to the trailer. It
may not operate depending on
the trailer specications. Con-
sult your local KIOTI Dealer for
this issue.
WARNING
1
2
3
4
5
6
7
Color of wire
Y
L
W
G
Br
R
B
Circuit
Turn Signal(LH)
SPARE
Ground
Turn Sigral(RH)
Illumination(RH)
Stop light
Illumination(LH)
No
