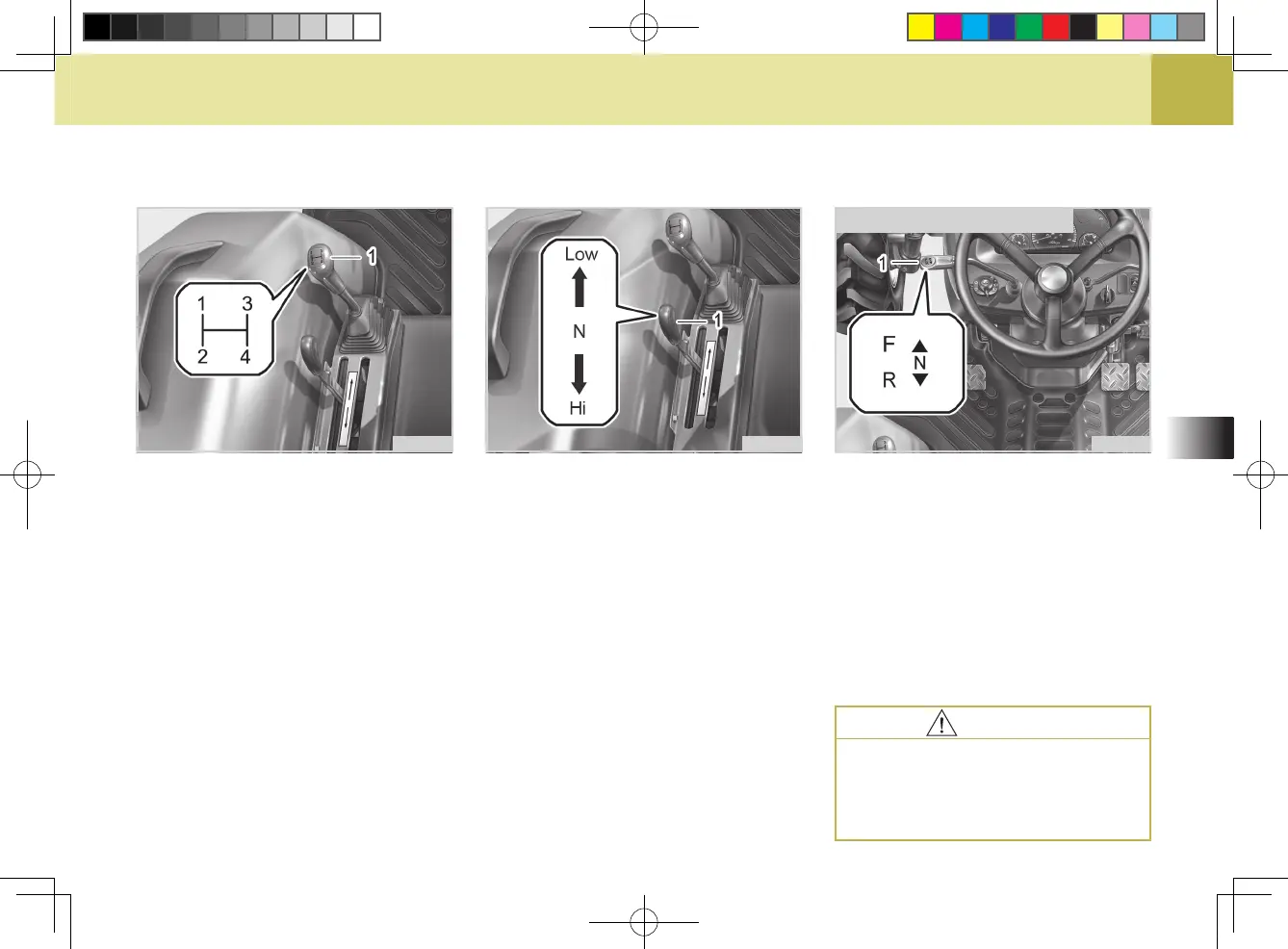

Four speeds can be selected by
moving this main shift lever in “H”
shaped path. As the gear is a con-
stant mesh type, gear shifting is im-
possible during driving, necessari-
ly stop the vehicle prior to shifting. In
total, 8 forward driving speeds and
8 reverse driving speeds are provid-
ed by combination of the main shift
lever (4 speeds), range shift lever (2
speeds), shuttle shift lever.
(1) Main Shift Lever (1) Range Gear Shift Lever
(Hi) High Speed (Low) Low Speed
(N) Neutral
High and low speeds can be select-
ed by the range shift lever. Make
sure to shift the range shift lever af-
ter the tractor is completely stopped
by depressing the clutch pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position, engage and
disengage the clutch, and then try to
shift the lever.
MAIN SHIFT LEVER RANGE GEAR SHIFT LEVER SHUTTLE SHIFT LEVER
(1) Shuttle shift lever
(F) Forward (R) Reverse
(N) Neutral
This lever is used to select forward
or reverse driving. As the shuttle le-
ver is a constant mesh type, neces-
sarily stop the vehicle prior to shifting
during driving.
Put this lever into the neutral position
when the tractor is not driven.
H61O419A H61O420A
Reduce the speed before mov-
ing this lever since it is very
dangerous to switch the driv-
ing direction at a high speed.
CAUTION
H61O418A
MANUAL SHUTTLE TYPE
