3-POINT HITCH IMPLEMENT AND LOADER OPERATION
6
-
12
DS4110(HS) / DS4510(HS)
6
6
-
13
3-POINT HITCH IMPLEMENT AND LOADER OPERATION
6
-
12
DS4110(HS) / DS4510(HS)
To avoid accidents:

Pr essur iz ed d ie se l f ue l or
hydraulic uid may be sprayed
on your skin or eyes, leading
to a se ve re in ju ry or e ven
death.

To check leakage, use a board
and wear protective gloves
and goggles.

If your eyes come into contact
with the hydraulic fluid, see
your doctor immediately.

Never try to disconnect the
tube and quick coupler while
the t rac tor a nd im ple me nt
are in operation. Release the
pressure by operating the lever
after the engine is stopped.

The hoses and couplers for in-
stallation are supplied with the
loader.

For detail about implement in-
stallation method, refer to KIOTI
front loader owner’s manual.

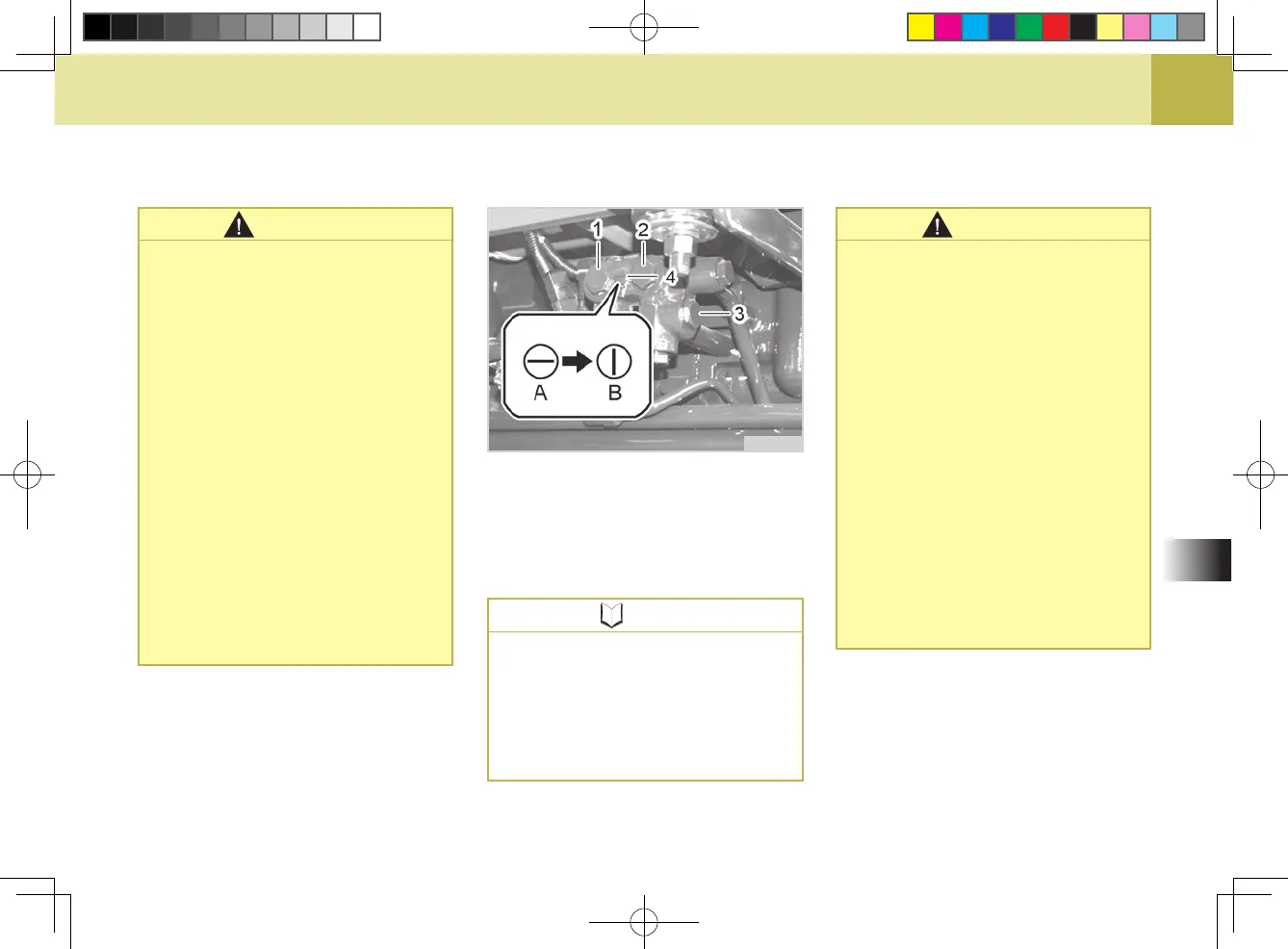

HYDRAULIC BLOCK
H61O614A
(1) In (From implement`s control valve)
(2) Out (To implement`s control valve)
(3) Ruturn (From implement`s control valve)
(4) Flow Plug
(A) OFF (B) ON
WARNING
NOTE

Never let anyone get in the
loader and use the loader as a
workbench. Otherwise, it may
lead to a fatal injury or even
death.

Do not stand under the lifted
loader or get close to it. Also,
lower the loader arm onto the
ground before leaving the trac-
tor. Otherwise, it may lead to a
fatal injury or even death.

Never carry a big object with
the loader unless a proper im-
plement is attached. Keep a
carried object low during driv-
ing. Otherwise, it may lead to
an injury or even death.
WARNING
