DIFFERENTIAL LOCK PEDAL

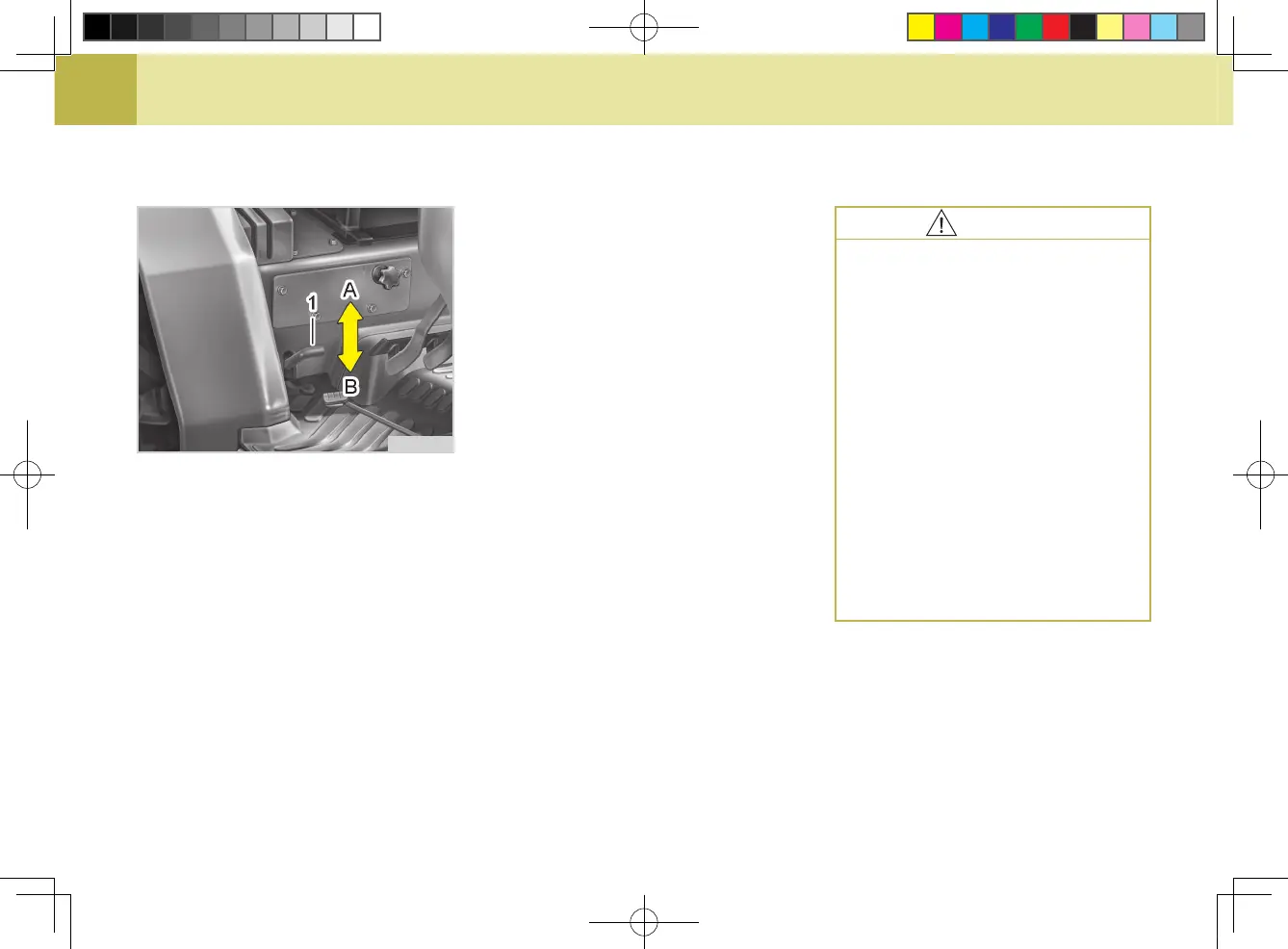

(1) Lock Pedal
(A) Release to “Disengage”
(B) Depress to “Engage”
H61O427A
The differential lock is to secure the
differential system and keep the
wheel rotation on both sides the
same in order to enhance the trac-
tion of the rear axle.
Depressing the pedal engages the
differential lock while releasing the
pedal disengages the differential
lock.
Use this system under the following
conditions:
1. When any wheel slips and the
tractor does not move in the eld.
2. When it is hard to escape a soft or
muddy eld.
The differential lock should be
engaged only while the driving
clutch is engaged. If the dif-
ferential lock pedal does not
move when depressing it, try
to depress it again after releas-
ing it.
When engaging the differential
lock, reduce the engine speed.
After engaging it, accelerate
the tractor.
Make sure to set the steering
wheel in the straight ahead po-
sition while the differential lock
is in use. Otherwise, the differ-
ential system can be damaged.
CAUTION
