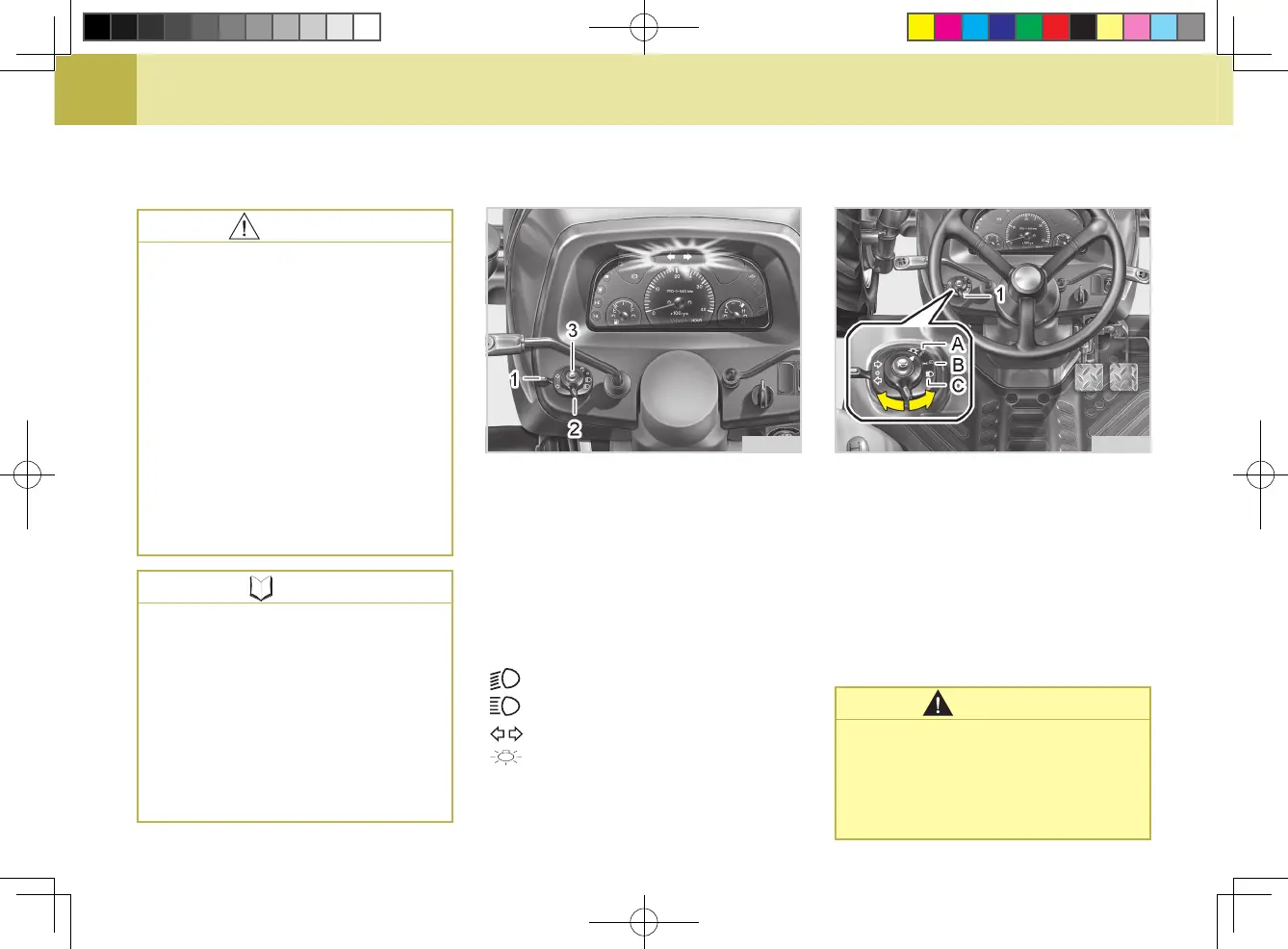

COMBINATION SWITCH
(1) Head Light Switch
(A) OFF (B) Low Beam On
(C) High Beam On
H11O405A
The combination switch consists of
the head light, turn signal light, and
horn switches. Its function by its po-
sition is as follows:
OFF : Head light and tail light OFF
: Low beam and tail light ON
: High beam ON
: Turn signal light and tail light ON
: Head light OFF and tail light ON
HEAD LIGHT SWITCH
The head light switch can be operat
-
ed only while the key switch is in “ON”
position. Turning the head light switch
clockwise one click will illuminate the
low beam head lights while turning it
one more click will illuminate the high
beam head lights.
Driving with high beam head
light disturbs the approaching
vehicle’s visibility for safe driv-
ing. Use the high beam head
lights only if necessary.
(1) Turn Signal Light Switch
(2) Head Light Switch
(3) Horn Switch
Stop the engine immediately if
the oil pressure warning lamp
does not go off after the en-
gine is started.
The engine may
be severely damaged.
If the battery charge warn-
ing lamp does not go off af-
ter the engine is started, check
the electrical systems, such
as the alternator, for damage.
Continuing to use the engine
under this condition can dis-
charge the battery or damage
other electrical devices.
CAUTION
The ignition key is not direc-
tional and can be inserted in
any direction. Also, be careful
not to leave the tractor unat-
tended with the key in the trac-
tor.
The horn, turn signal lamp,
and hazard lamp can be oper-
ated without the key inserted.
NOTE
WARNING
H11O405A
