Kioti DS4110 - Checking Wheel Bolt;Nut Torque (Q)

7
7
-21
MAINTENANCE
H61O725A
H11O726A

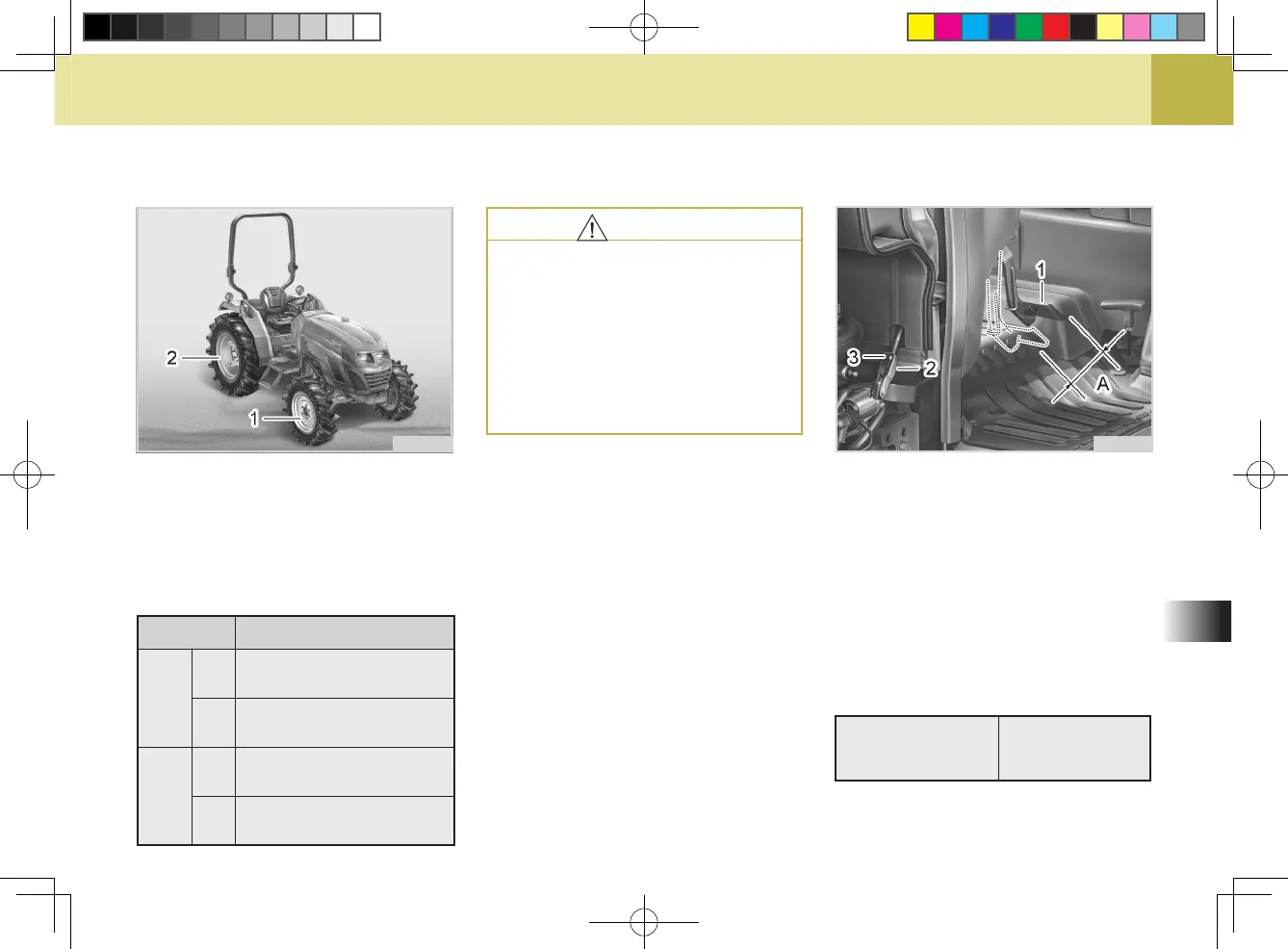

(1) Clutch Pedal (2) Clutch Rod
(3) Lock Nut (A) Free Play
Check wheel bolts and nuts regular-
ly especially when new. If they are
loose, tighten them as follows.
CHECKING WHEEL BOLT/NUT
TORQUE (Q)
To avoid personal injury:

Never operate tractor with a
loose rim, wheel, or axle.

Any time bolts and nuts are
loosened, retighten to speci-
ed torque.

Check all bolts and nuts fre-
quently and keep them tight.
ADJUSTING CLUTCH PEDAL
(R)
(1) Front Wheel Bolt/Nut
(2) Rear Wheel Bolt/Nut
CAUTION
Item Tightening torque
Front
wheel
Bolt
167~186 N
.
m, 123-137 lbf
.
ft
(17~19 kgf.m)
Nut
167~186 N
.
m, 123-137 lbf
.
ft
(17~19 kgf.m)
Rear
wheel
Bolt
275~333 N
.
m, 203~246 lbf
.
ft
(28~34 kgf.m)
Nut
275~319 N
.
m, 203~235 lbf
.
ft
(28~32.5 kgf.m)
1. If the clutch does not operate
properly due to its excessive play,
or periodically, adjust its play.
2. To adjust the play, unscrew the
lock nut and turn the turn buckle.
3. After setting the play properly,
tighten the lock nut rmly.
Proper clutch
pedal free play (A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
