ADJUSTING TOE-IN (Y)
ADJUSTING PROCEDURE

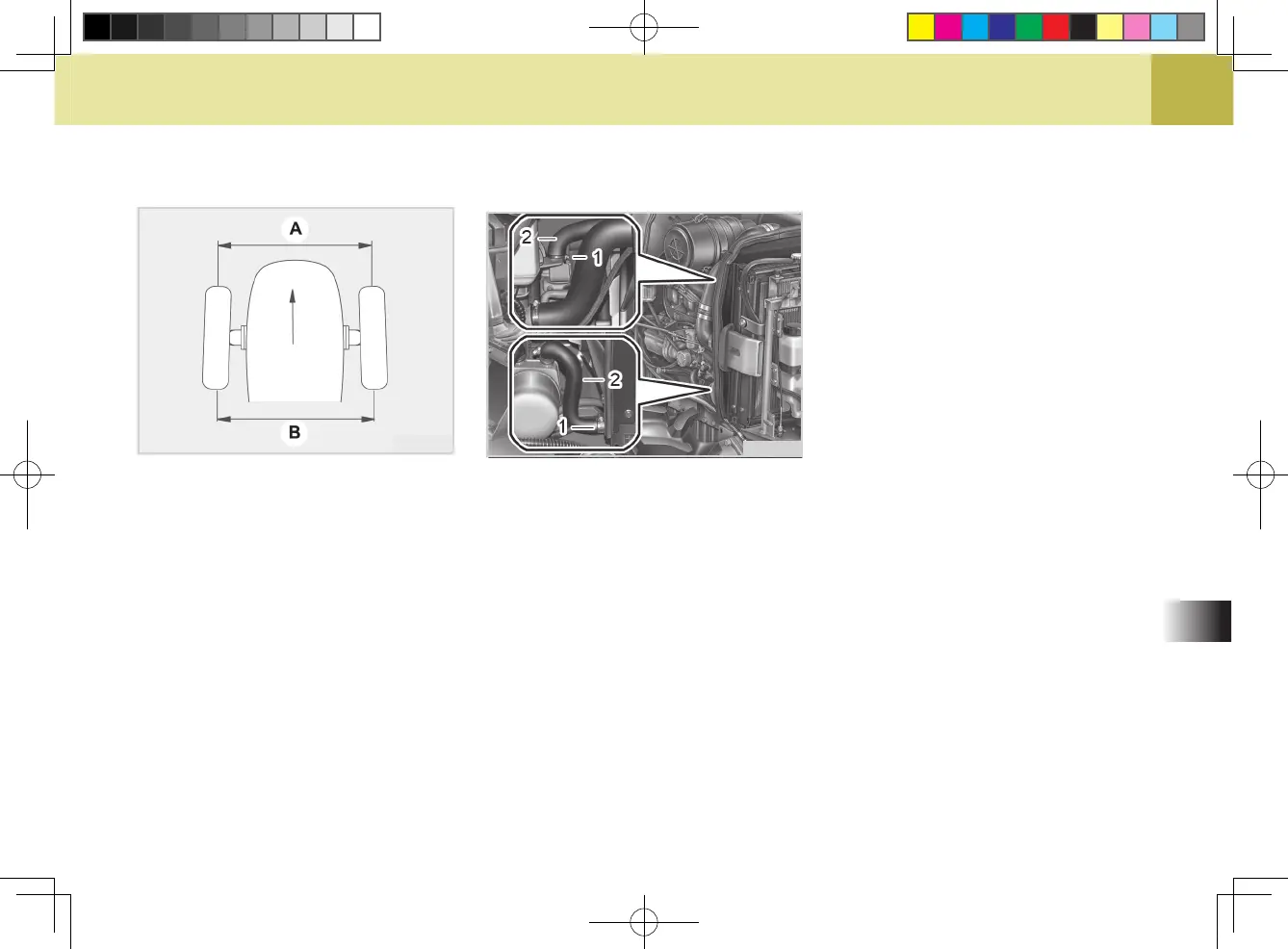

T46OA36A
(A) Wheel - To - Wheel Distance At Front
(B) Wheel - To - Wheel Distance At Rear
1. Park tractor on a at surface
2. Tur n st ee ri ng w he el s o fr on t
wheels are pointed straight ahead.
3. Lower the implement, lock the
parking brake and stop the en-
gine.
4. Measure distance between tire
beads (center) at front of tire and
hub height.
5. Measure distance between tire
beads at the rear of tire and hub
height.
6. Front distance should be 2~8 mm
less than rear distance. If not, ad-
just the tie rod length.
H61O733A
(1) Clamp (2) Hose
CHECKING RADIATOR HOSE
AND CLAMP (Z)
Check to ensure the radiator hoses
are free from damage and are tight-
ened properly every 200 hours or ev-
ery 6 months, whichever comes rst.
1. If the hose clamps are loose or
water leaks from hose, tighten
clamps securely.
2. If the radiator hoses are swollen,
hardened, cracked or damaged,
you must replace the hoses. Fail-
ure to do so could lead to coolant
loss and engine damage.
PRECAUTION AT OVERHEATING
Take the following actions in the
event the coolant temperature reach-
es the boiling point, what is called
"Over-heating".
1. Stop the machine in a safe place
and keep the engine idling.
2. After 5 minutes of unloaded idling,
shut the engine down.
3. Keep yourself away from the trac-
tor for another 10 minutes or until
steam has stopped blowing out of
the engine.
4. Make sure that there is not danger
and repair the cause of the over-
heating according to the manual’s
instruction.
To Next Page
