DS4110(HS) / DS4510(HS)
MAINTENANCE CODE

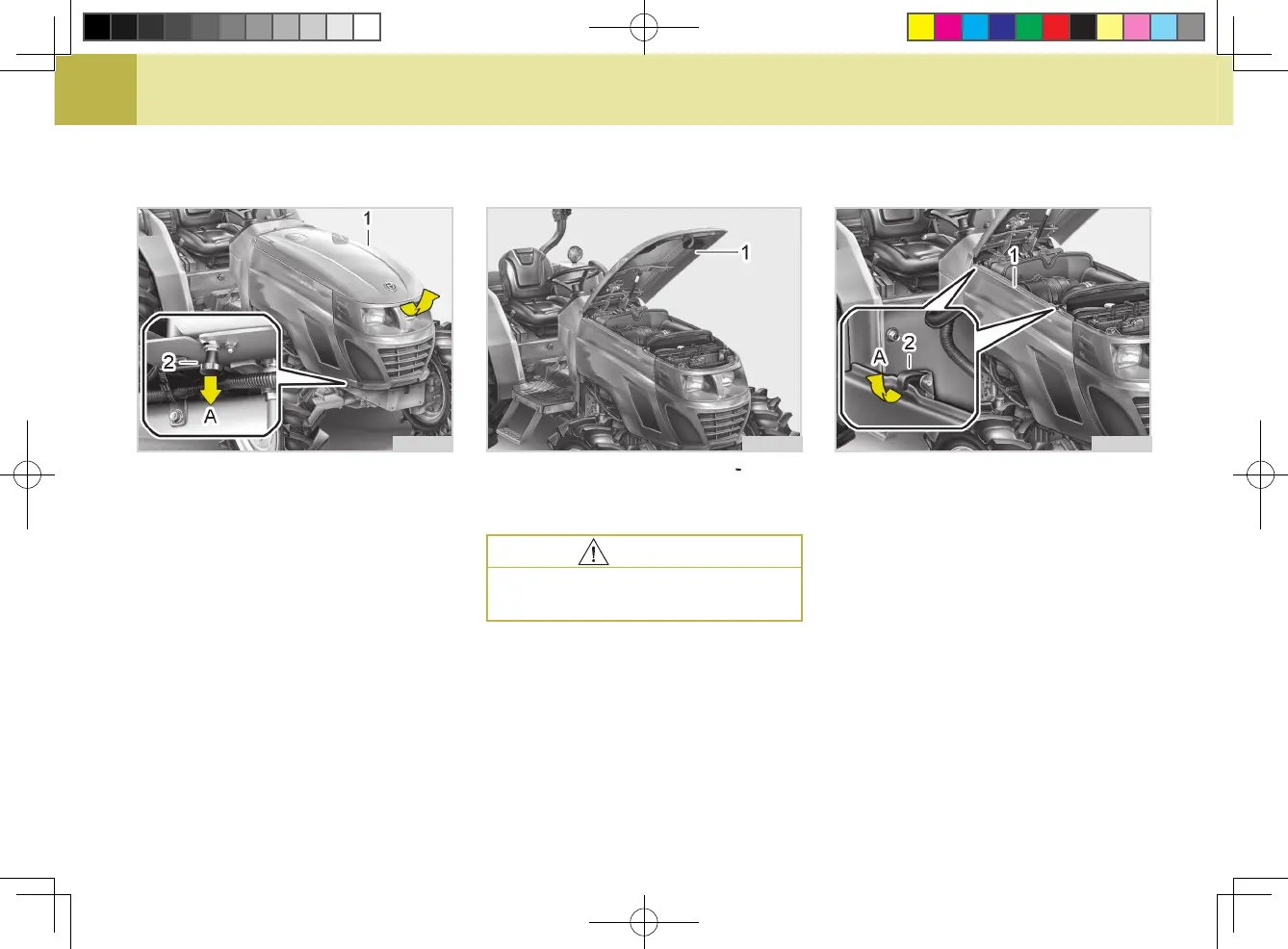

HOW TO DISCONNECT THE HOOD (A)
(1) Hood (2) Opening Knob
(A) Pull
H61O701A
OPENING SIDE AND FRONT
COVER (B)
H61O703A
H61O702A
(1) Hood
(1) Side Cover (2) Hook
(A) Pull
1. It is very easy to open the hood
with one touch pulling knob.
2. The hood stays open by itself with
air cylinder. To close it, just press
down without any bothering pro-
cess.
1. The side covers (LH/RH) should
be removed in order to access the
engine components.
2. Open the hood and disassemble
the rubber clips fixed on the left
and right of the side covers.
3. Remove each side cover by pull-
ing it gently while lifting it up.
4. When installing them, align their
pins to the groove on the tractor
body and press them down. Then,
x them with the rubber clips.

Never open the hood while the
engine is running.
CAUTION
