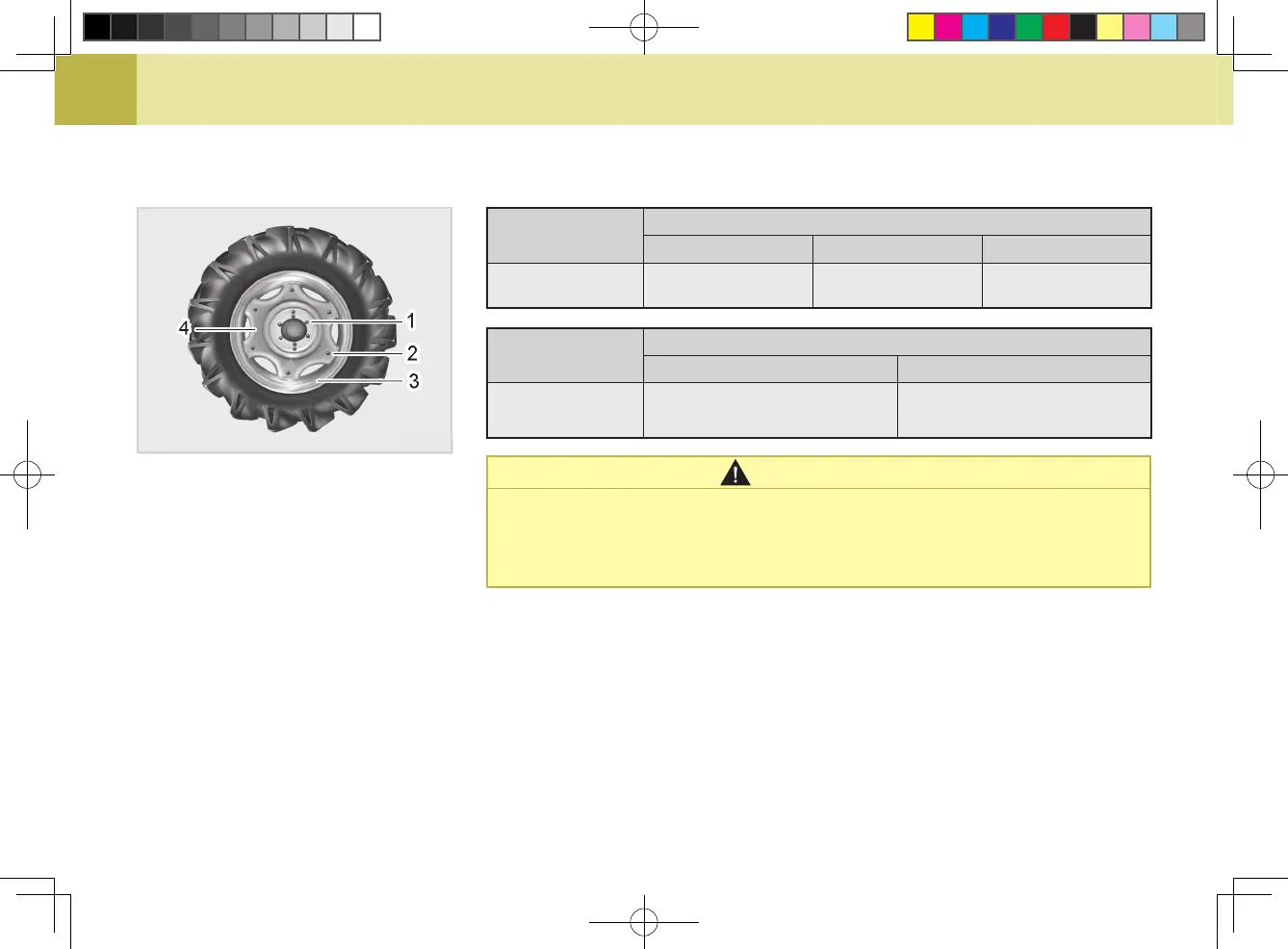

(1) Wheel Bolt (3) Rim
(2) Rim Bolt (4) Disc
H11O4D2A
For agricultural tires, make sure to install them with their arrow marks on their
side pointing the front driving direction.
The tire is correctly installed if the tread mark “V” on the ground is shown cor-
rectly, not up side down, while the tractor is moving forward.
Use tires approved by KIOTI only.
Assemble the tire as shown in the gure.
Contact your local KIOTI Dealer if it is necessary to change the tire
specication or installation method.
WARNING
Model
Tire size
Farm Turf Industrial
ALL 13.6-24 / 6PR 41
×14-20 / 4PR 14.9-24 / 6PR
Model
Tightening torque
Rear wheel bolt (nut) Rim bolt
ALL
274.6 ~ 318.7 Nm
(28 ~ 32.5 kgf.m)
274.6 ~ 333.4 Nm
(28 ~ 34.0 kgf.m)
REAR WHEEL INSTALLATION PATTERN
REAR TIRE SPECS AND WHEEL BOLT TORQUE
WHEEL INSTALLATION DIRECTION
