COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-27

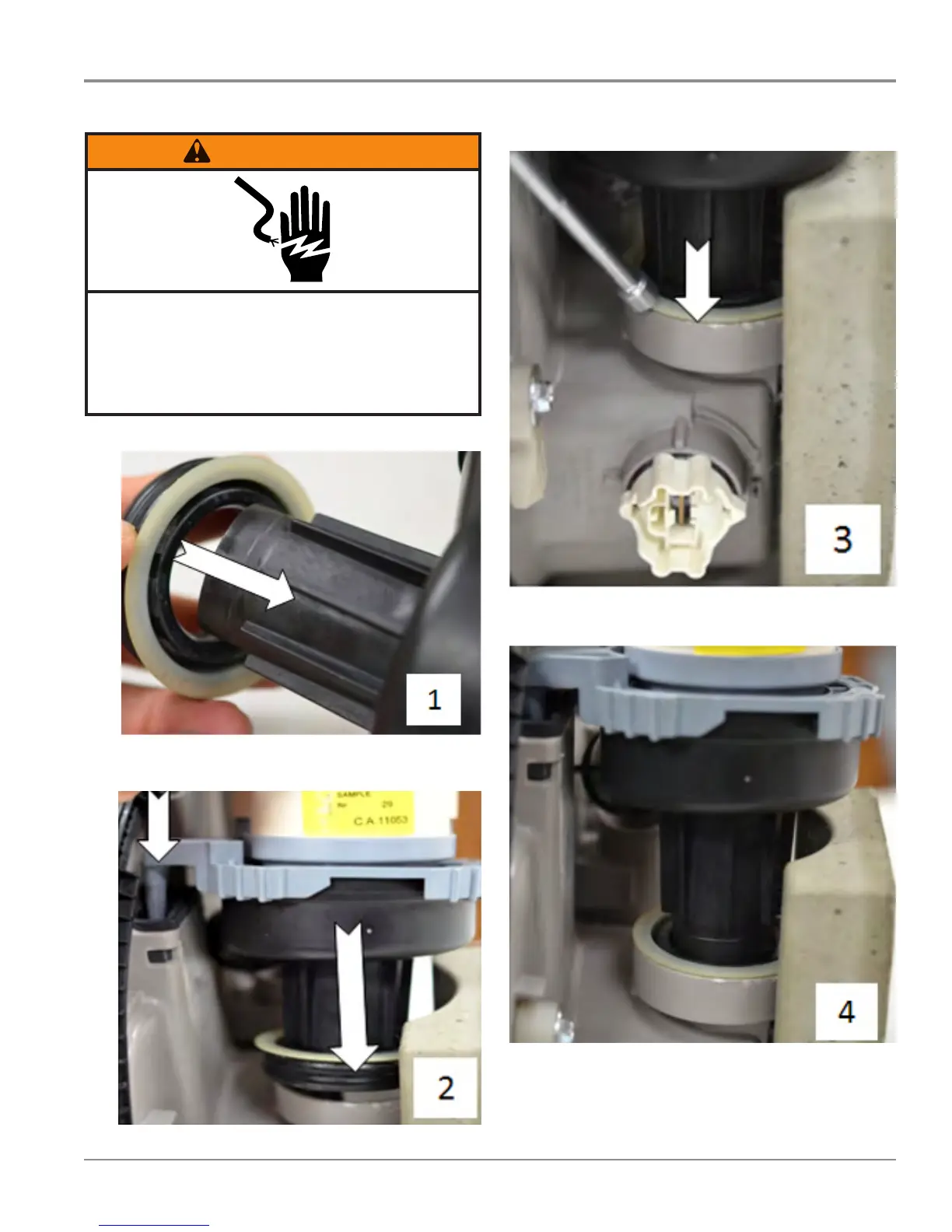

1. Install new Seal, see gure 1
2. Install motor, see gure 2.
3. Seat new seal, see gure 3.
4. Seal installed correctly, see gure 4.
Figure 1
Figure 2
Figure 3
Figure 4
Steps for Installing New Wash Motor
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
connued next page . . .
