COMPACT AHU WITH HEAT RECOVERY EVO-T +
OPERATION AND MAINTENANCE MANUAL
120

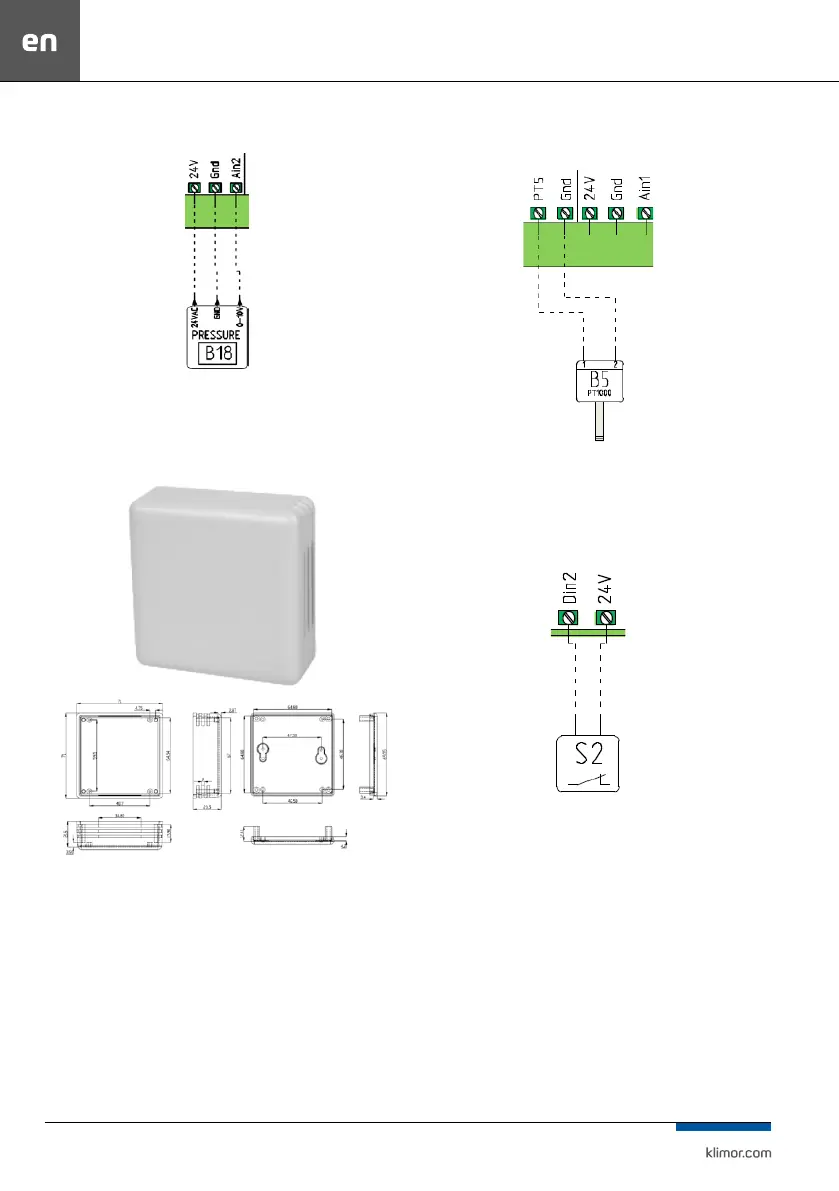

Pressure transducer connection method (LIYCY 3x1 lead)
Fig. 42
14.1.5 Room temperature sensor
Fig. 43
Room temperature sensor connection method (LIYCY
2x1 lead)
Fig. 44
14.1.6 Safety trip switch signal
Connection of potential-free contact of a safety switch,
e.g. reed switch (LIYY 2x1 lead)
Fig. 45
