Klimor EVO-T Plus - Cleaning of CPR Exchanger

85
Data for lters used in EVO-T+ units:

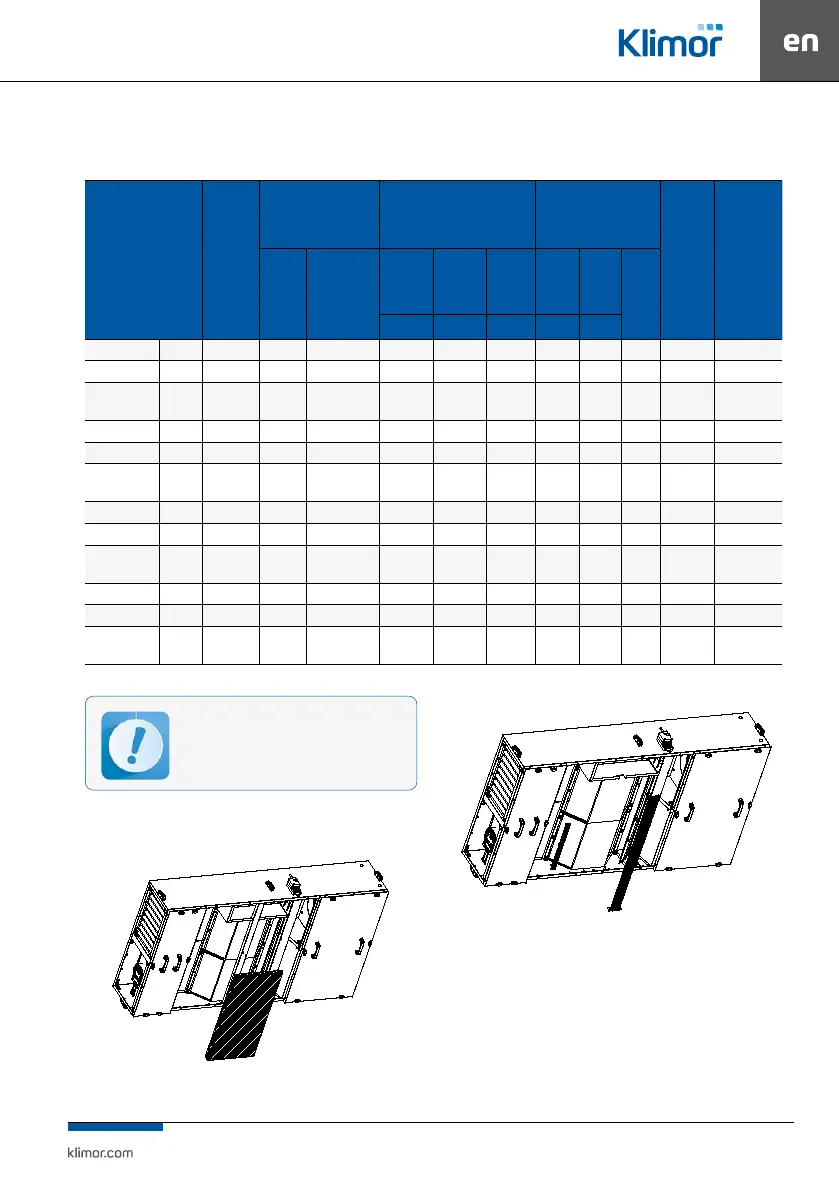

Table 8 Dimension, class and number of lters used in EVO-T+.
Index Filter class acc. to EPM ltration eciency Dimensions Amount Comments
Unit type of the
lter
PN EN
779
PN EN ISO
16890
ePM 10 ePM 2,5 ePM1 B H L supply/
exhaust
[pcs.]
Versions:
[%] [%] [%] [mm] [mm] [mm]
EVO-T+ 8000 1015991 G4 Coarse 80% - - - 455 305 50 1/1 Standard
EVO-T+ 8000 1015993 M5 ePM10 50% 50 15 5 455 305 50 1/1 Option
EVO-T+ 8000 1029984 F7 ePM1 60% 90 70 60 455 305 75 1 Option re.
supply
EVO-T+ 5000 1015990 G4 Coarse 80% - - - 305 305 50 1/1 Standard
EVO-T+ 5000 1015992 M5 ePM10 50% 50 15 5 305 305 50 1/1 Option
EVO-T+ 5000 1030376 F7 ePM1 60% 90 70 60 305 305 75 1 Option re.
supply
EVO-T+CPR 3000 1030368 G4 Coarse 80% - - - 255 305 50 1/1 Standard
EVO-T+CPR 3000 1030369 M5 ePM10 50% 50 15 5 255 305 50 Option
EVO-T+CPR 3000 1030370 F7 ePM1 60% 90 70 60 255 305 75 1 Option re.
supply
EVO-T+RR 3000 1030371 G4 Coarse 80% - - - 255 350 50 1/1 Standard
EVO-T+RR 3000 1030372 M5 ePM10 50% 50 15 5 255 350 50 1/1 Option
EVO-T+RR 3000 1030373 F7 ePM1 60% 90 70 60 255 350 75 1 Option re.
supply
Excessively contaminated lters reduce
the air ow which may lead to emergen-
cy shutdown of the electric heater.
9.5 Cleaning of CPR exchanger.
Fig. 11 Dismantling the drip tray.
Fig. 12 Dismantling the centre post and support bar of the rst exchanger.
