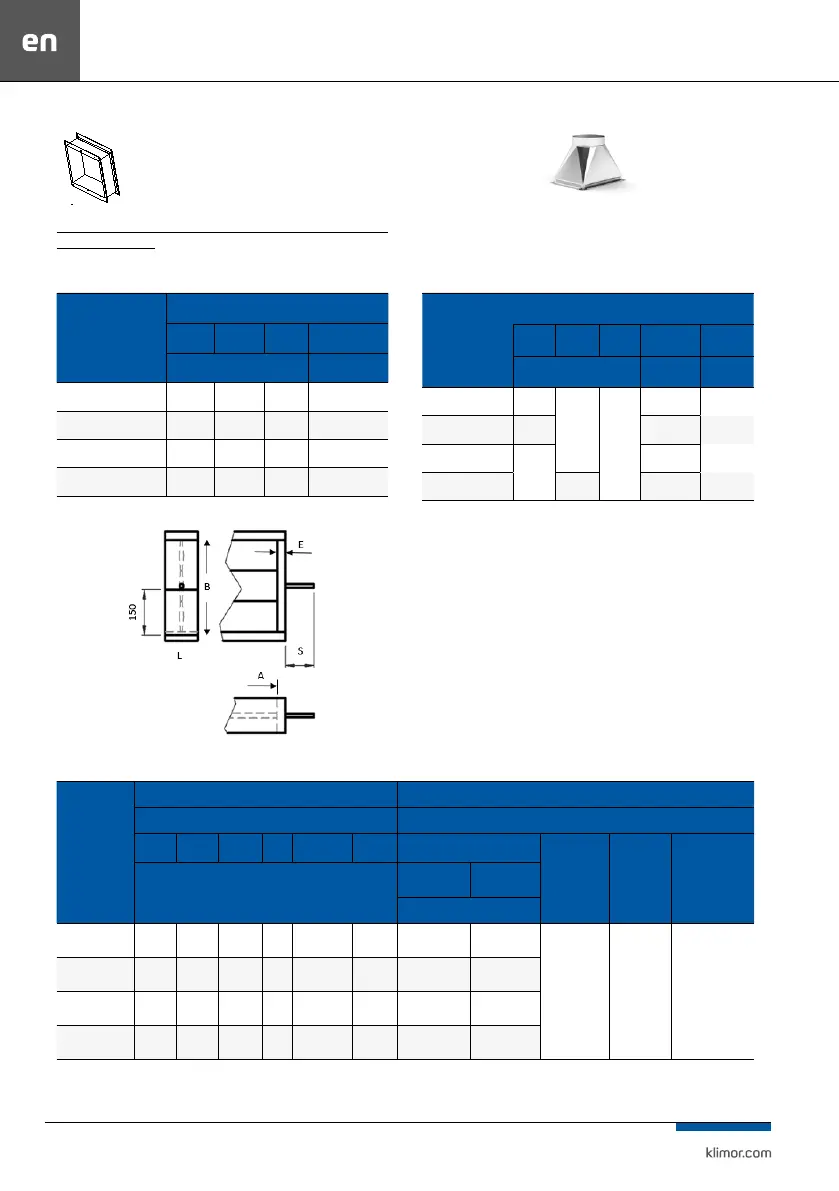

The EVO-T+ air handling unit is tted with exible connec-
tions as standard:
Table 5 Flexible connection.
EVO-T+
FLEXIBLE CONNECTION EVO-T+
Width Height Frame Quantity
mm pcs.
8000 – (CPR; RR) 465 290 20 4
5000 – (CPR; RR) 315 290 20 4
3000 – (CPR) 265 290 20 4
3000-(RR) 265 335 20 4
The EVO-T+ air handling units can be equipped with con-
nection diusers as an additional accessory purchase. The
diuser is not standard equipment
Table 6 Connection diuser.
EVO-T+
Connection diuser symmetrical rectangle – circle
Width Height Frame ø d Length
mm mm 
8000 – (CPR;RR) 465
290
20
315 250
5000 – (CPR;RR) 315 250 200
3000 – (CPR)
265
200 200
3000-(RR) 335 200 200
The EVO-T+ can optionally be equipped with dampers
+actuators. The damper + actuator is not standard equip
-
ment and must be included in the order. Optionally, you
can control shut-o damper actuators – on supply and ex-
haust. Depending on the conguration, select one of the
digital outputs RE1(PK1)-RE5(PK5) and assign the function
Operation signal.
Table 7 Shut-o
EVO-T+
Air damper Acutator
Dimensions Data
A B L E mandrel ø S Torque
Power supply
Protection
level
Control
mm
without return
spring
with return
spring
Nm
8000 – (CPR;RR) 445 270 115 30 11 100 2 3
24V IP54 on/o
5000 – (CPR;RR) 295 270 115 30 11 100 2 3
3000 – (CPR) 245 270 115 30 11 100 2 3
3000-(RR) 245 315 115 30 11 100 2 3
