Unit Dimensions
4–2 SITE PREPARATION BEFORE INSTALLATION

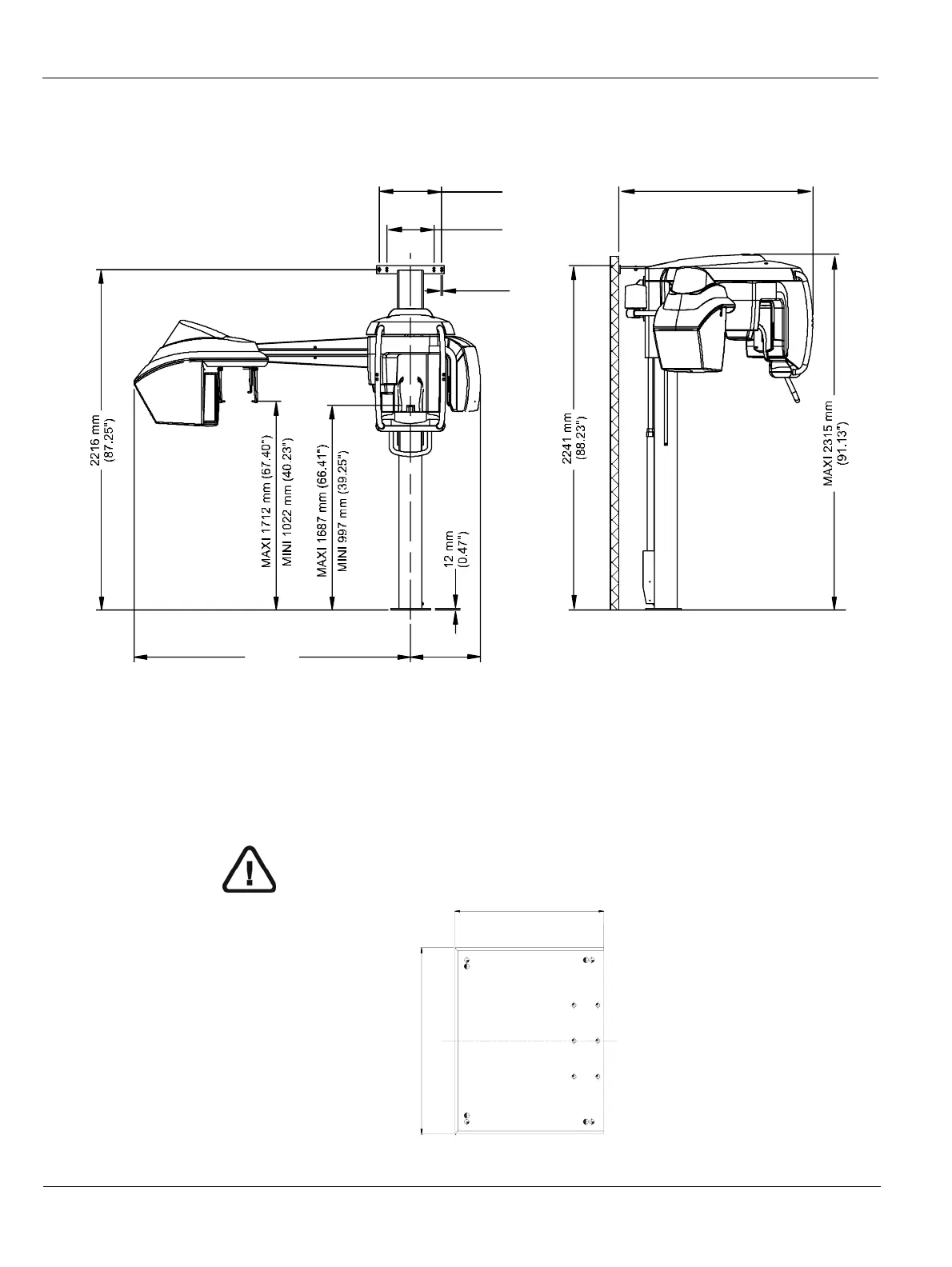

Unit Dimensions
The unit dimensions illustrated in the above figure are as follows:
• Maximum height of the unit (2315mm)
• Minimum (1687mm) and maximum (997mm) height of the chin rest
• Minimum (1022mm) and maximum (1712mm) height of the ear cones
• Width (2250mm) and depth (1261mm) of the unit
WARNING
If you need to add a base plate you must add 15mm to the height of the unit.
406 mm
(15.98")
306 mm
(12.05")
10 mm
(0.38")
1261 mm
(49.63")
440 mm
(17.3")
1810 mm
(71.3")
600
500
