Fitting the Covers
5–20 INSTALLING THE CEPHALOSTAT
Fitting the Covers
WARNING
Before fitting the covers, you MUST switch off the unit.
Before fitting the covers, check that:
All the screws in the wall and the floor have been tightened.
All the screws attaching the head and the fixed arm to the column have been
tightened.
To fit the covers, follow these steps:

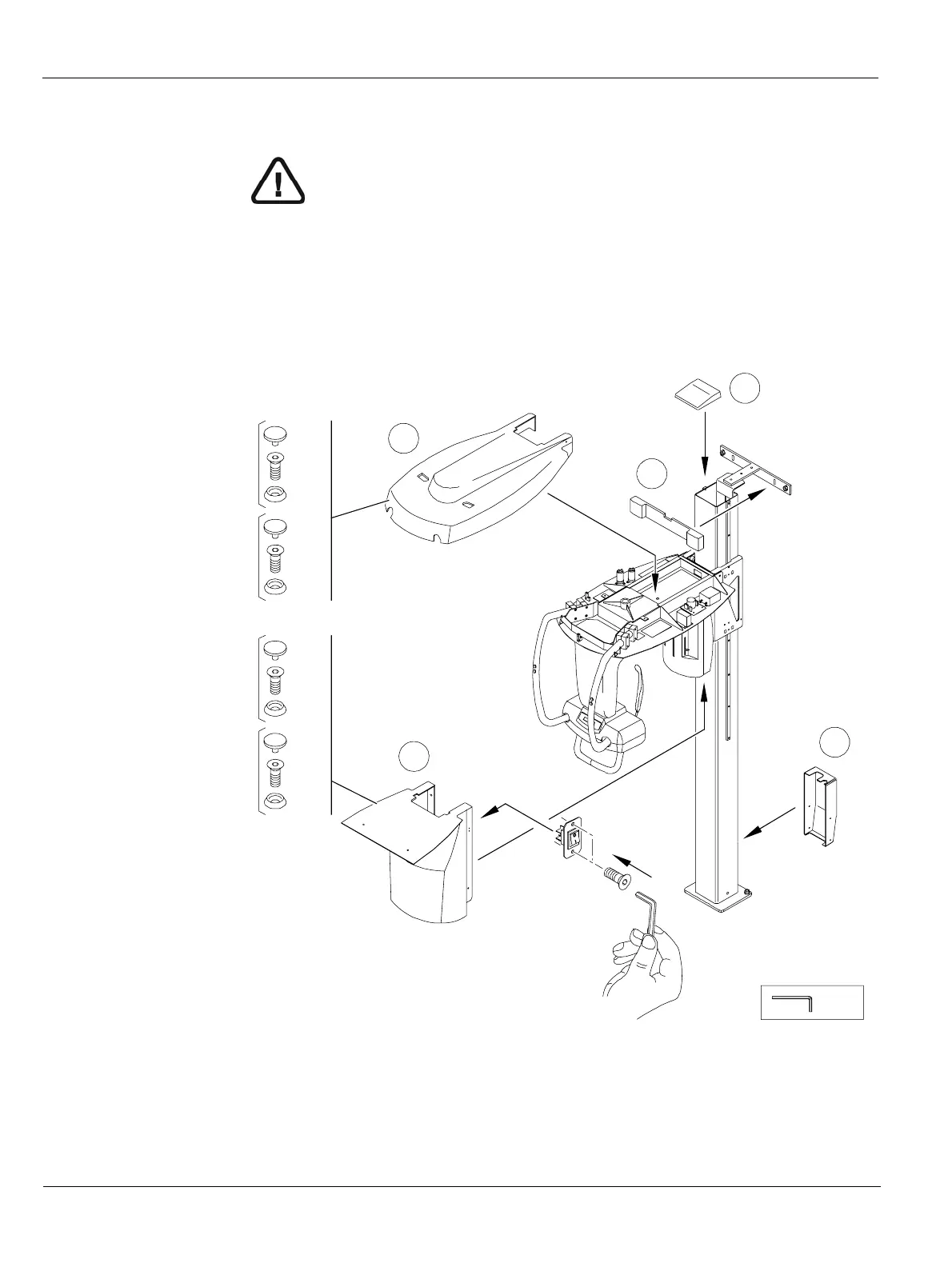

1. Fit the upper cover (A) on the column. Fit the cover on the wall-bracket (B). Fit the
cover on the column connecting terminal (C) and tighten the fixing screws.
A
B
C
E
3 mm
2 x
M5x20
2 x
M5x50
2 x
M5x15
2 x
M5x50
D
2 x
M5x12
