Installing the Cephalostat Unit
KODAK 8000C Digital Panoramic and Cephalometric Extraoral Imaging System Installation Guide (SM736)_Ed 02 5–3
Installing the Cephalostat Unit
Before installing the cephalostat unit, make sure that:
• The unit is switched off.
• The head and generator covers are removed.
• You have the required tools.
Installing the Cephalostat Arm
To install the cephalostat unit, follow these steps:

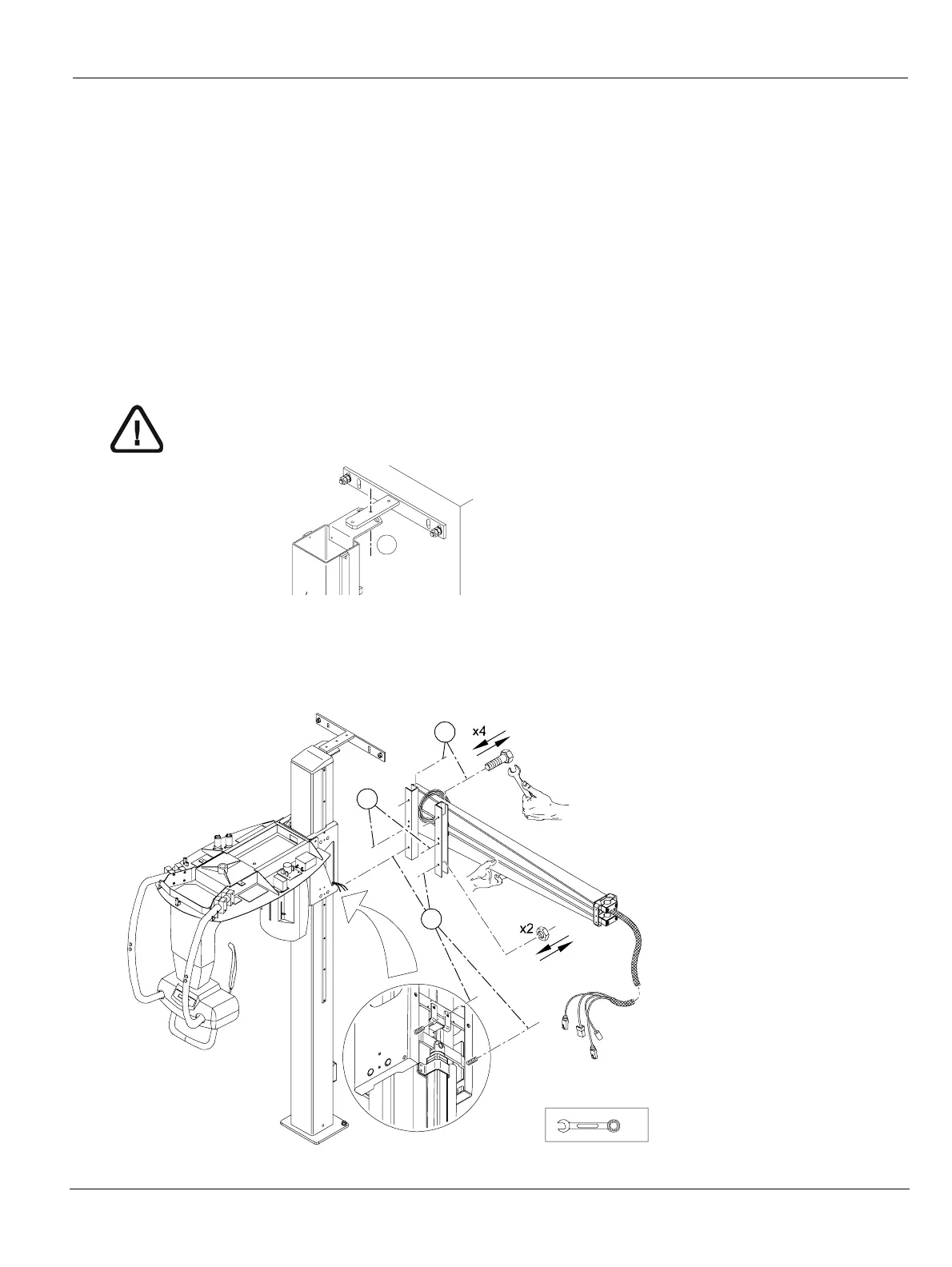

1. With the help of 1 person, position the cephalostat arm on the rear of the mobile
component of the column. To attach the arm, insert the screws on the column on the
lower holes (A). Insert and then tighten the fixing screws (C).
IMPORTANT
Make sure that the wall mounting bracket’s hole (A) is the furthest
from the wall before installing the cephalostat unit
.
A
13
B
A
B
