Installing the Cephalostat Unit
5–4 INSTALLING THE CEPHALOSTAT

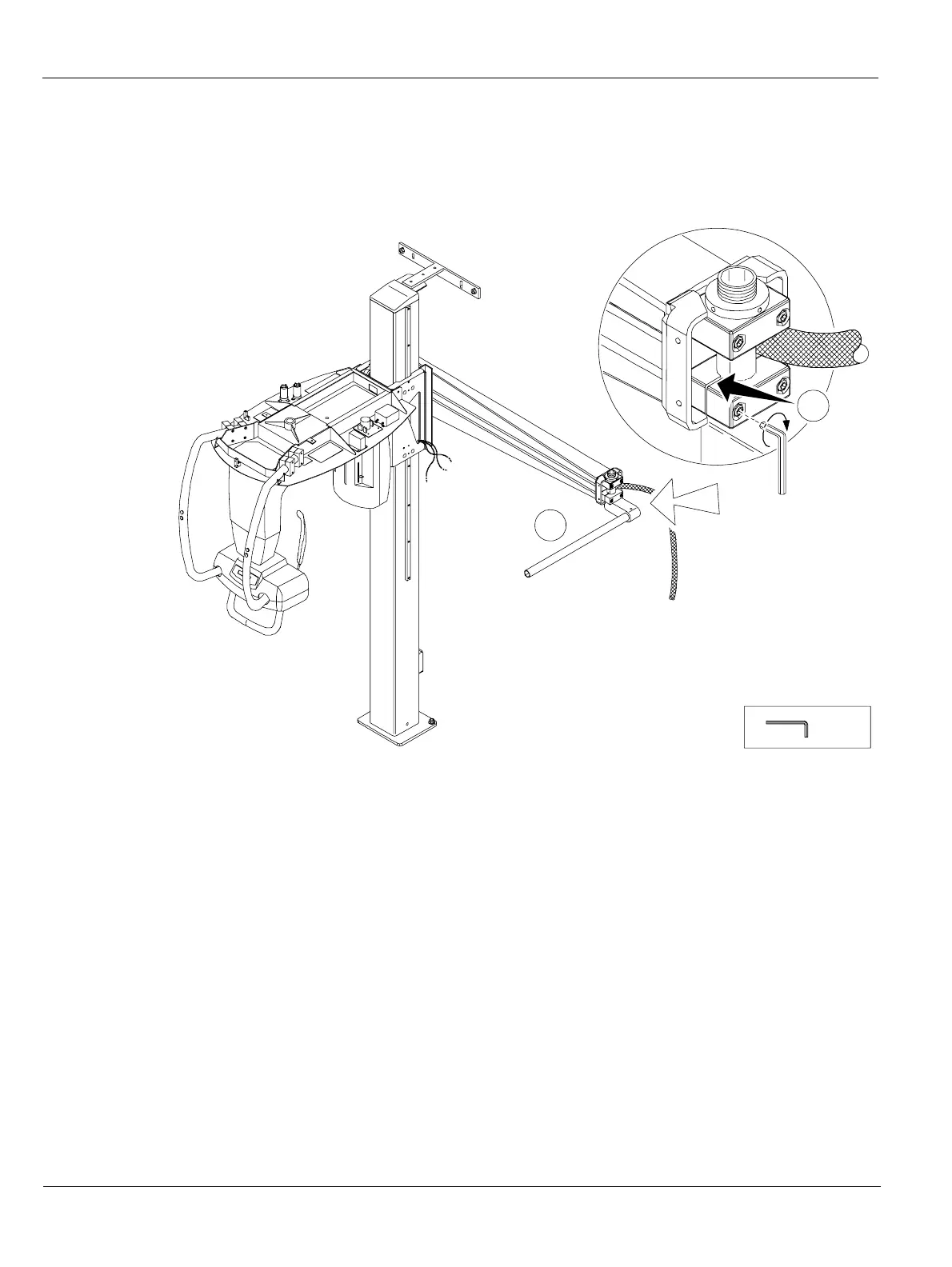

2. Make sure that the tube (A) is for the appropriate side (by default it is for the right side
position of the ceph), if not, unscrew the fixing screws and reposition it for the
appropriate side. Insert all the way tube (A) inside the tube clamps (B) and screw in
the fixing nut.Tigten the fixing screws of the tube clamps (B).
4 mm
A
B
