Kodak 8000C Installation Guide

Installing the Cephalostat Unit
KODAK 8000C Digital Panoramic and Cephalometric Extraoral Imaging System Installation Guide (SM736)_Ed 02 5–5
Installing the Cephalostat Head

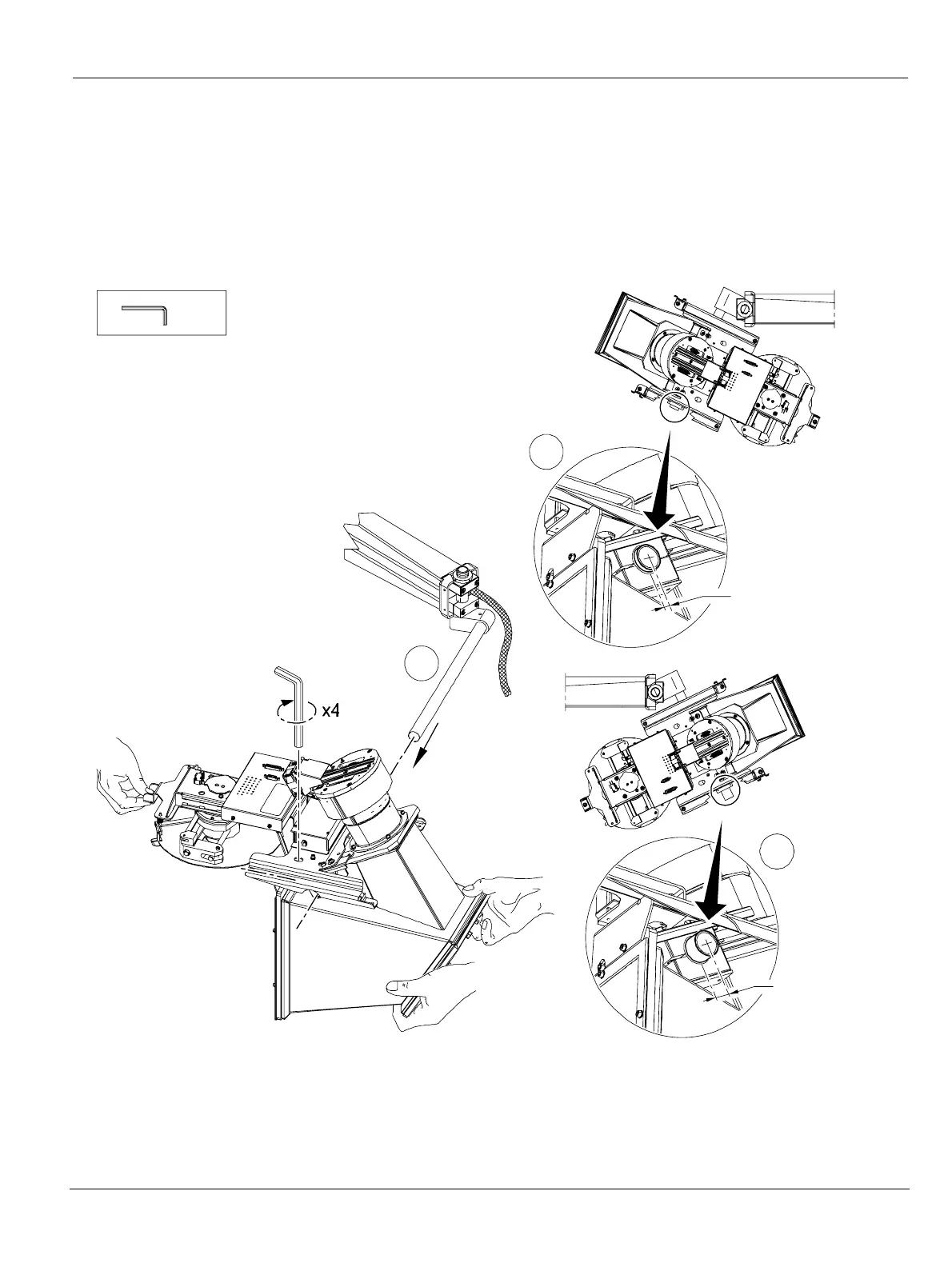

3. With the help of 1 person, lift the cephalostat head and insert the elbow tube (A)
inside the elbow tube clamps. Insert the elbow tube (A) as far as:
• Left side ceph position, 7mm (B)
• Right side ceph position, 22mm (C)
4. Screw the fixing screws but do not tighten them.
6 mm
22 mm
7 mm
B
A
C
