Installing the Cephalostat Unit
5–6 INSTALLING THE CEPHALOSTAT

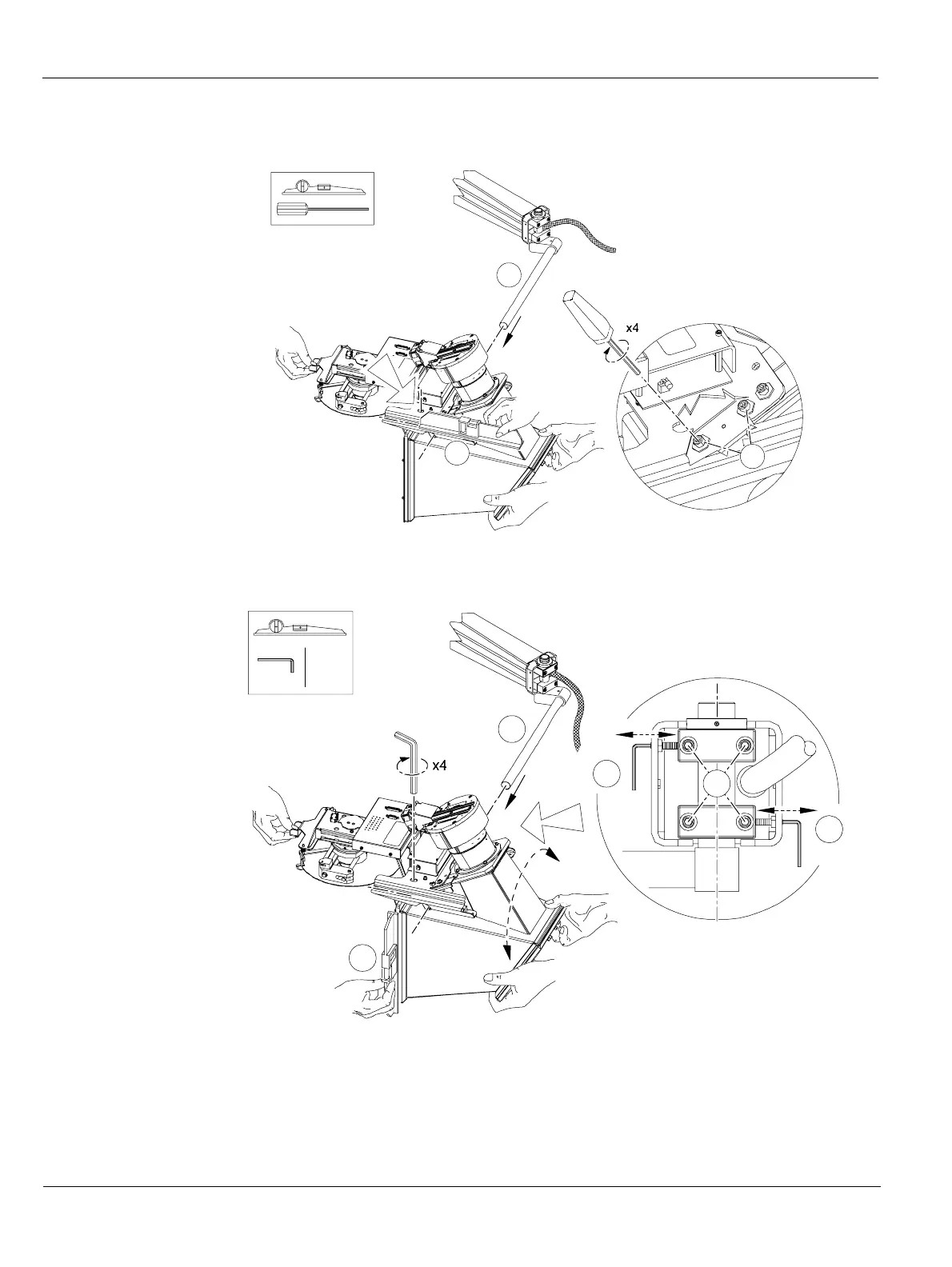

5. Correctly position the cephalostat head using a spirit level (C) placed as shown in the
figure. Tighten the fixing screws (B) to adjust with the spirit level (C).
6. Correctly position the cephalostat head using a spirit level (D) placed as shown in the
figure. Tighten the fixing screws (C) to adjust with to the spirit level (D).
4 mm
A
C
B
6 mm
x1
x1
C
C
B
A
D
2.5 mm
4 mm
