Installing the Cephalostat Unit
KODAK 8000C Digital Panoramic and Cephalometric Extraoral Imaging System Installation Guide (SM736)_Ed 02 5–7

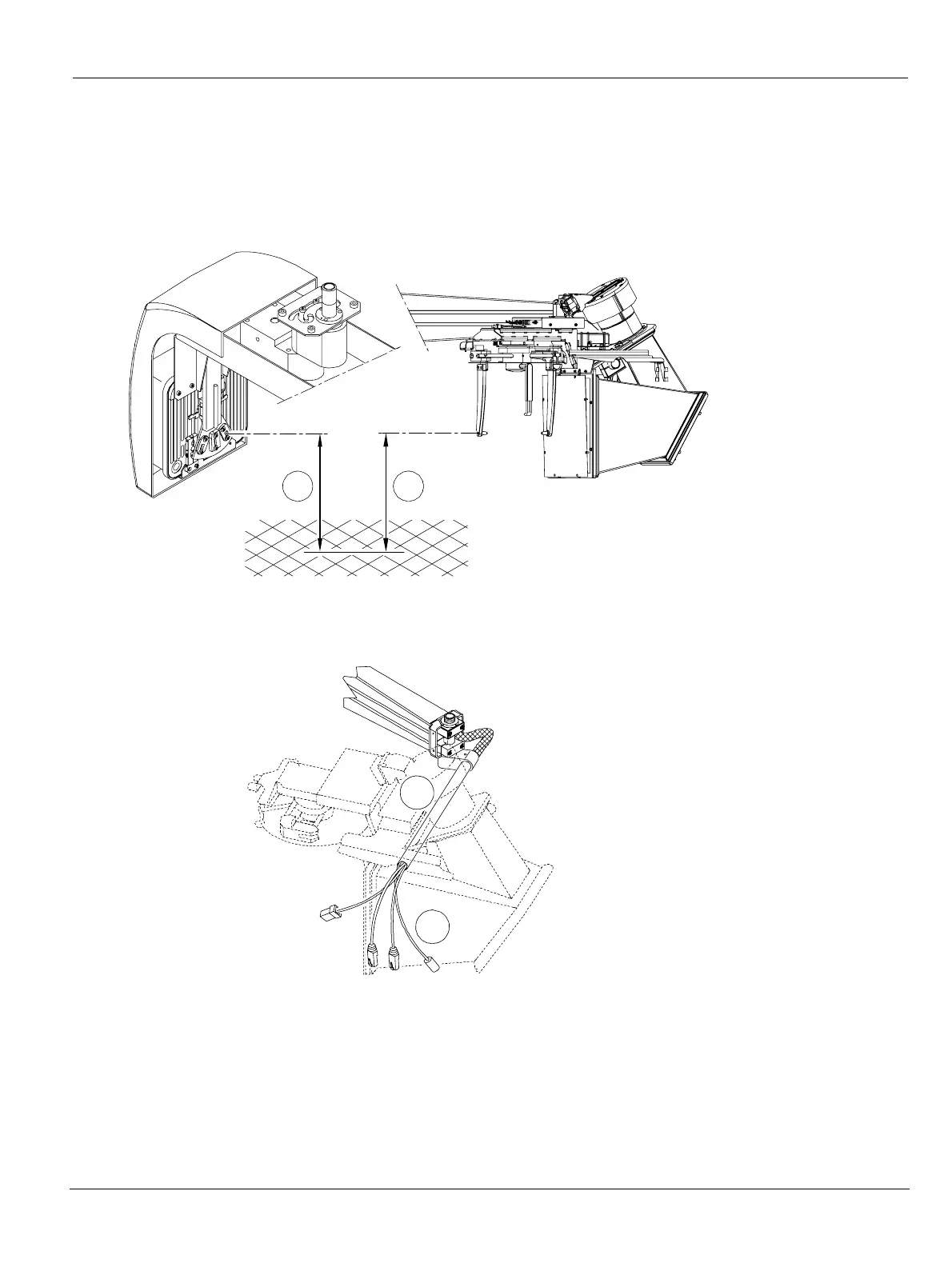

7. To adjust the height of the Cephalostat head, using a measurement tape, measure the
height from the floor to the middle of the collimator outlet (A). Measure the height
from the floor to the center of the ear cone ball (B). The measurements must be the
same (A = B). To adjust the height use the tube fixing nut (C), see step 2 of the
procedure.
8. Insert the cables (B) inside the elbow tube (A) tube.
=
BA
A
B
