Installing the Cephalostat Unit
KODAK 8000C Digital Panoramic and Cephalometric Extraoral Imaging System Installation Guide (SM736)_Ed 02 5–9
Wiring the Cephalostat to the Unit Head

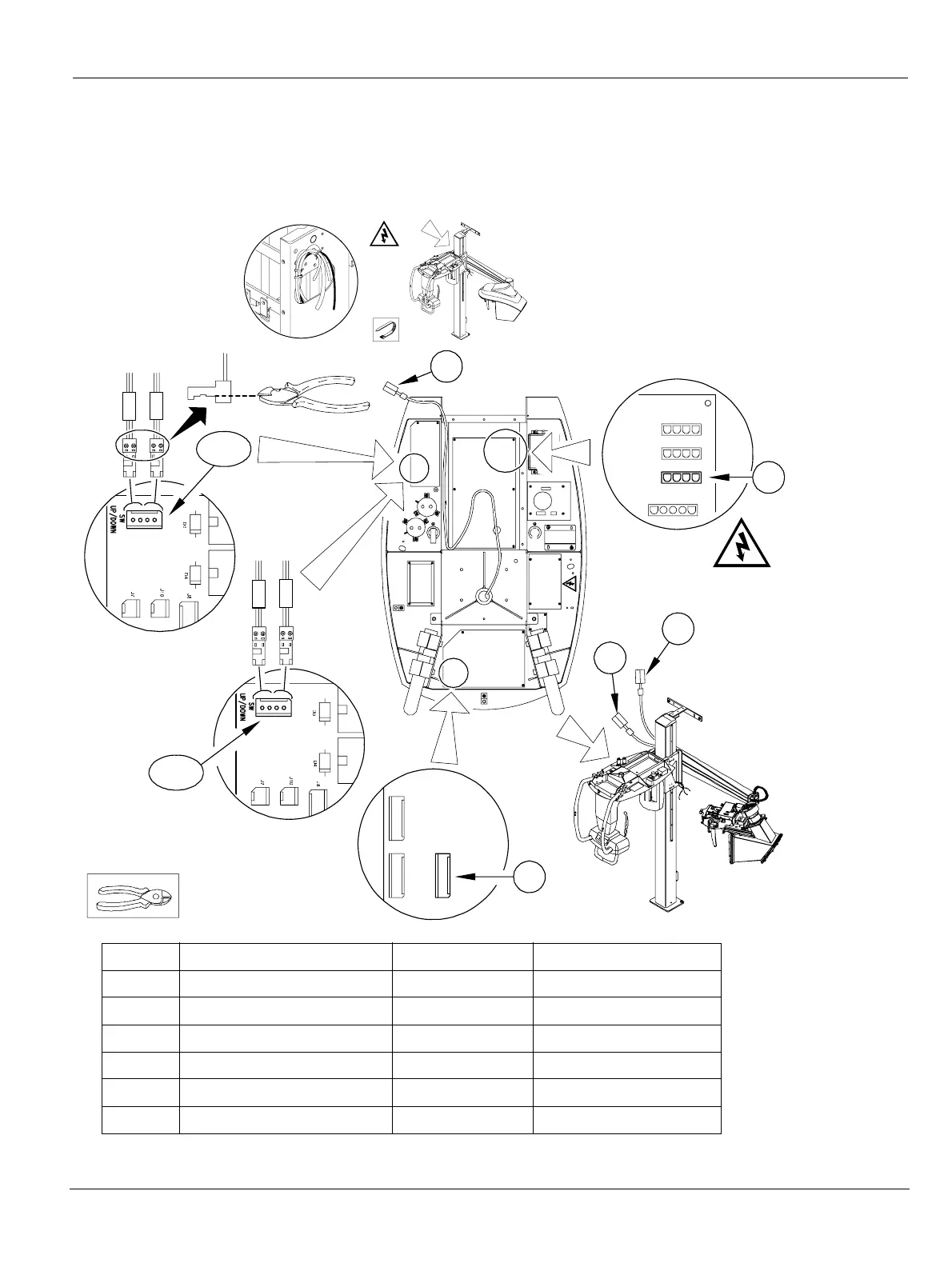

10. Pull the cables out of the cephalostat arm. Pass the cables through the opening in the
column and attach them with a cable tie to avoid cable wear due to usage as shown
in the figure below. Connect the wiring in the following order:
J21
1
J10
CJ664
J4
J6
J10
J5
CJ653
CJ699
J9
D
A
B
C
1
40
39
CJ699
J9
E "R"
1
39
40
J11
E "L"
B
Cable ... On the ... To ...
(A) 967/CJ653/J10 CJ653 J10
(B) Ethernet Pano Ethernet Pano
(C) Ethernet Workstation Ethernet Workstation
(D) CJ664/J21 CJ664 J21(adapter board CJ664 v4)
(E “R”) 39/CJ699/J9 & 40/CJ699/J9 CJ699 J9 (for right side ceph)
(E “L”) 39/CJ699/J9 & 40/CJ699/J9 CJ699 J9 (for left side ceph)
